Trail Gear Jimny JA12/JA22 Extended Brake Line Kit - 2.5" - 304247-3-KIT

Jimny JA12/JA22 Extended Brake Line Kit
Our DOT approved Jimny Extended Brake Line Kits are suitable for all Suzuki Jimny JA12 & JA22 models with up to 2.5” [64mm] of lift. These brake lines are constructed from extruded PTFE (Teflon) hose with permanently crimped zinc-plated steel fittings. The brake hose is protected from debris and abrasion by a braided stainless steel wire cover. A clear PVC outer jacket provides additional protection against debris, abrasion, and corrosion.
These extended brake lines are a direct fit and exceed all requirements of the Department of Transportation Motor Vehicle Standard MVSS-106. They come in a complete set of two front brake lines and one rear brake line along with four copper sealing washers and a mounting clip. A 4” [102mm] piece of spiral, anti-abrasion wrap is provided to protect the brake line in high abrasion areas.

Specifications:
DOT approved extended brake lines, suitable for lifts up to 2.5” [64mm].
PTFE (Teflon) hose.
Permanently crimped zinc-plated steel fittings.
Braided stainless steel wire cover.
Clear PVC outer jacket.

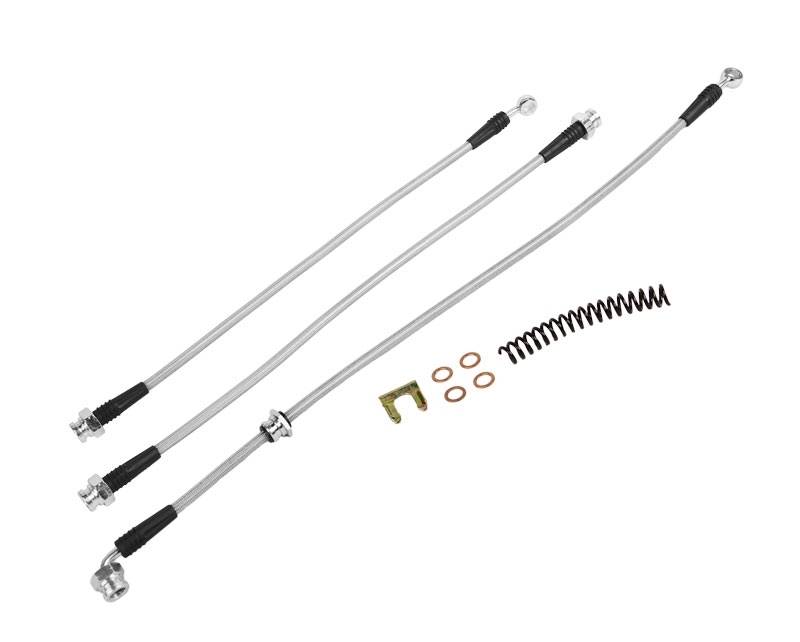

Set of (2) front brake lines and (1) rear brake line.
Provided with (4) copper sealing washers and installation instructions.
4” [102mm] piece of spiral anti-abrasion wrap provided to protect brake line in high abrasion areas.
Exceeds all requirements of the Department of Transportation Motor Vehicle Standard MVSS-106.

Application Data:
1995-1998 Suzuki Jimny JA12
1995-1998 Suzuki Jimny JA22
