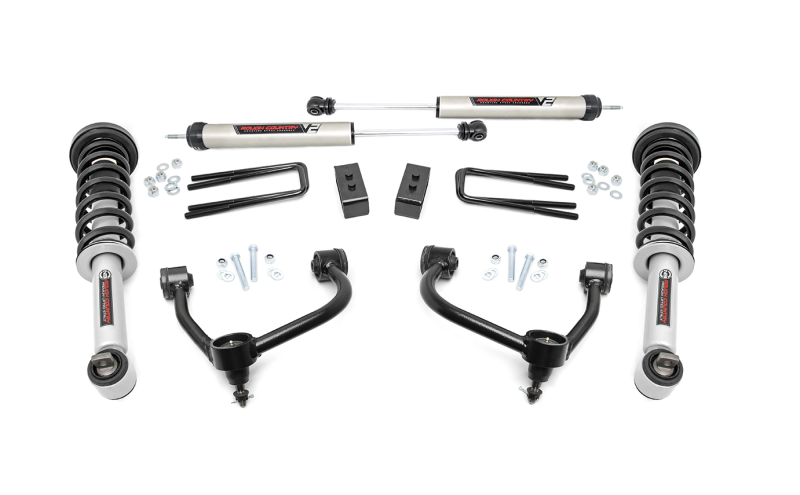

ROUGH COUNTRY 3 INCH LIFT KIT FORD F-150 4WD (2014-2020)

RC-51014
Pricing: $599.95

Customize Your Item

- Select Shocks -
 * required
Qty:
Free Shipping

Description

Rough Country's 3in Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for 14 and up F-150 pickups.

This kit features a set of high-quality, Forged Aluminum Upper Control Arms designed to make alignment adjustments easier and Clevite rubber bushings for enhanced durability. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, greater range of motion from the ball-joint, with less stress, wear and tear.

Rough Country’s 3-inch Bolt-On Kit features N3 Lifted Struts and N3 Nitrogen-charged shocks, giving your truck incredible ride-quality both on and off-road. Also included are a set of fabricated rear blocks to provide lift height in the rear. Once installed, this kit gives your truck plenty of ride height for up to 34in tires while offering a clean, level look from front to rear. Retain your stock wheels with this kit when you use Rough Country’s 0.25-inch wheel spacer.

This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring a 100% bolt-on installation process that requires zero cutting or drilling, this kit can be installed using common tools in a home garage, and allows the truck to be returned to stock at any time if so desired. Best of all this kit features Rough Country’s Lifetime Replacement Warranty.

FEATURES

    • Easy Bolt-On installation
    • No Cutting or Drilling required!
    • Includes New forged aluminum upper control Arms
    • Control arms keep ball joints at optimum angles for less wear and tear
    • Control arms include Clevite rubber bushings for enhanced durability
    • Increased ground clearance
    • Levels the front and rear of the truck
    • Can be returned to stock
    • Retain your factory wheels by using our 0.25-inch wheel spacers [SKU: 1065].
    • Lifetime Replacement Warranty*

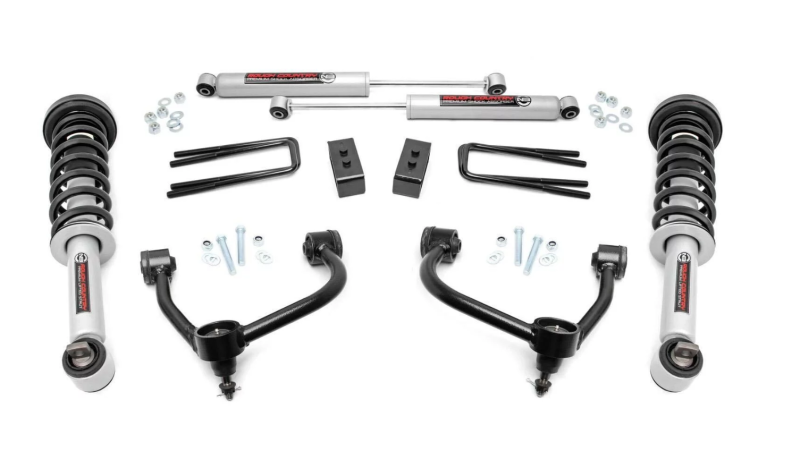

OPTIONAL N3 LOADED STRUTS



  • Maintains smooth, factory-like ride
  • Increased ground clearance
  • Nitrogen-charged
  • Engineered for lifted applications
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Massive 1 3/8in Bore
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

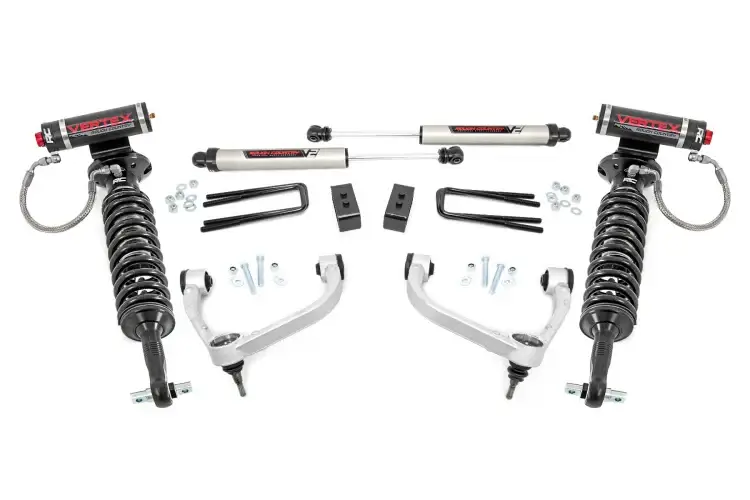

OPTIONAL V2 MONOTUBE SHOCKS



  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

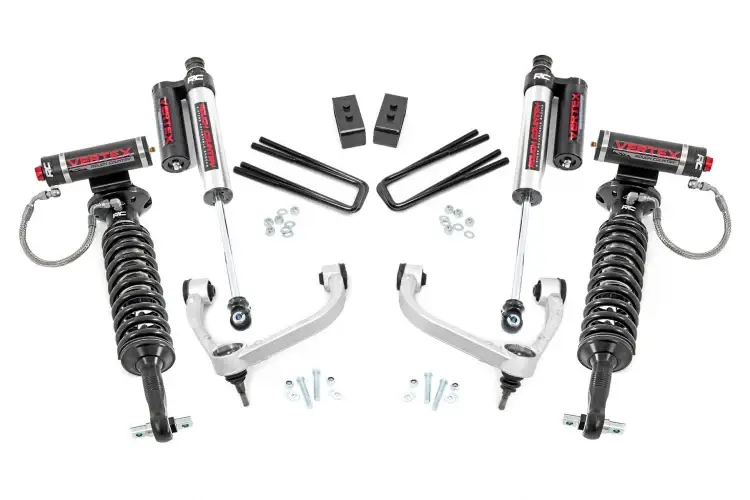

OPTIONAL VERTEX COILOVERS



  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty



NOTES - IMPORTANT

  • Does NOT fit regular/standard cab models.
  • Spacer kit does NOT work on models with stock ride height over 22in. [Measured from center of wheel to the bottom of the fender.]
  • Trucks with FX4, Snow Prep, and other off-road packages that modify front strut assemblies will likely measure over 22in and will not work with this kit.
  • 2014 model trucks measuring over 22in should consider our 4in Lift Kit 57430.
  • 2015+ model trucks measuring over 22in should consider our 4in Lift Kit 55530.

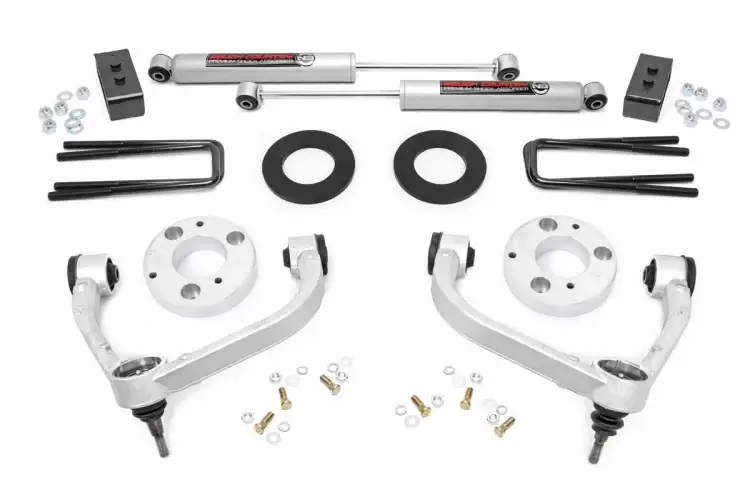

FRONT
  • (2) Forged Upper Control Arms
REAR
  • (2) Lift Blocks
  • (4) U-bolts
  • Hardware
SHOCKS
  • (2) Premium N3 Lifted Struts [Front]
  • (2) Premium N3 series [Rear]
Est. Install Time 5-6 hours
2014-2020 4WD Ford F-150
295/60R20 20x9 6x135 +18 -
295/60R20 20x9 6x135 +20 -
295/70R18 18x9 6x135 +18 -
295/70R18 18x9 6x135 +20 -
305/55R20 20x10 6x135 -24 -
305/55R20 20x9 6x135 +0 -
305/55R20 20x9 6x135 +1 -
305/55R20 20x9 6x135 -12 -
305/55R20 20x10 6x135 -18 Minor Trimming
305/55R20 20x10 6x135 -19 Minor Trimming
305/55R20 20x10 6x135 -24 Minor Trimming
305/55R20 20x10 6x135 -25 Minor Trimming
33x12.50R22 22x10 6x135 -18 Minor Trimming
33x12.50R22 22x10 6x135 -19 Minor Trimming
33x12.50R22 22x10 6x135 -24 Minor Trimming
33x12.50R22 22x10 6x135 -25 Minor Trimming
