TRAIL-GEAR Longfield 30 Spline Inner Axle, Long, (Long Spline E-Locker (FJ 60) - 301492-1-KIT

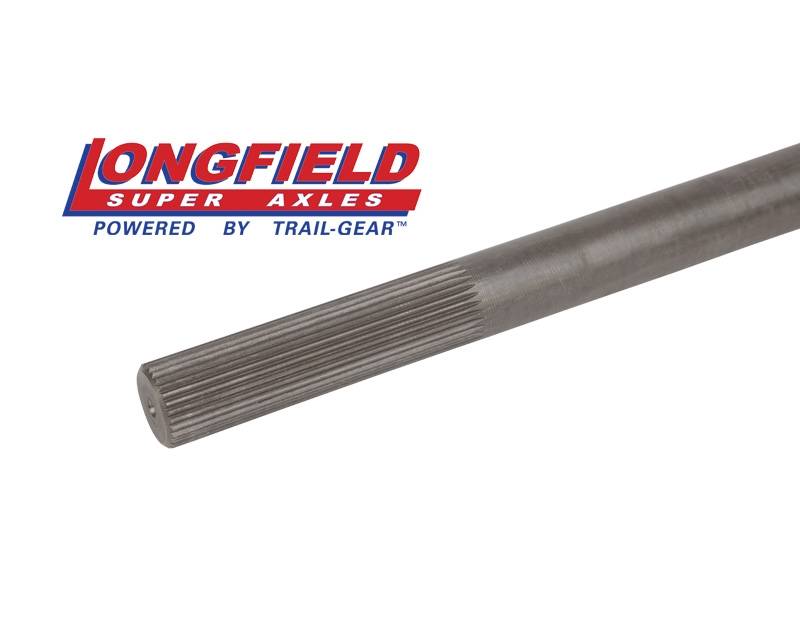

Longfield™ Long Spline Inner Axle Shafts
The Longfield Long Spline Inner Axles Shafts have a fully machined and polished seal surface and come with c-clips already installed. These shafts are great for replacements or spares.

The splines on these shafts are cut 4.75" long on the diff side to accomodate Land Cruiser locker applications. These shafts will also include snap rings.

Specifications
Forged and heat-treated 4340 Chromoly
Extended spline for Land Cruiser locker applications
Snap ring provided
Long side shaft is 31-3/8" Long (part #301492-1-KIT)
Long side shaft is 28-15/16" Long (part #302090-1-KIT)
Diff side spline length is 4.75"

Application Data
1960-1983 Toyota FJ40 (part #302090-1-KIT)
1980-1990 Toyota FJ60 (part #301492-1-KIT)
1979-1985 Toyota Pickup (All Engines) (part #301492-1-KIT)
1984-1985 Toyota 4Runner (All Engines) (part #301492-1-KIT)
Toyota Solid Front Axle Houing (part #301492-1-KIT)
Rock Assault™ Front Axle Housing (part #301492-1-KIT)
