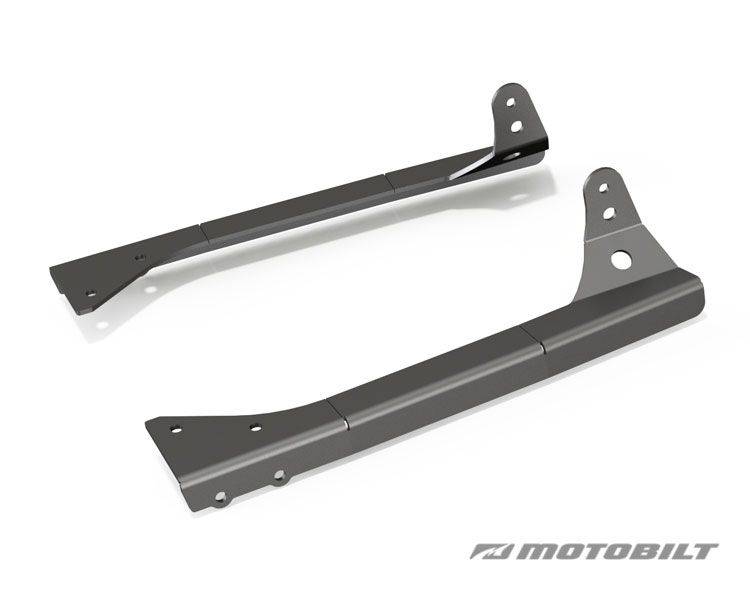

The Motobilt LED Light Bar Mount was designed with both form and function in mind. This 50" LED Light Bar Mount works with LED Light bars measuring 50-1/4" wide at the mounting pointsThe mounting brackets were 3D CAD designed to fit close to the windshield frame without touching it. The only contact points are on the windshield hinge. The brackets are CNC laser cut from 3/16" high strength steel plate and then formed on a hydraulic pres brake. The material used to fabricate the brackets is the exact same material used to make rocker guards and comp corners for ultimate protection.

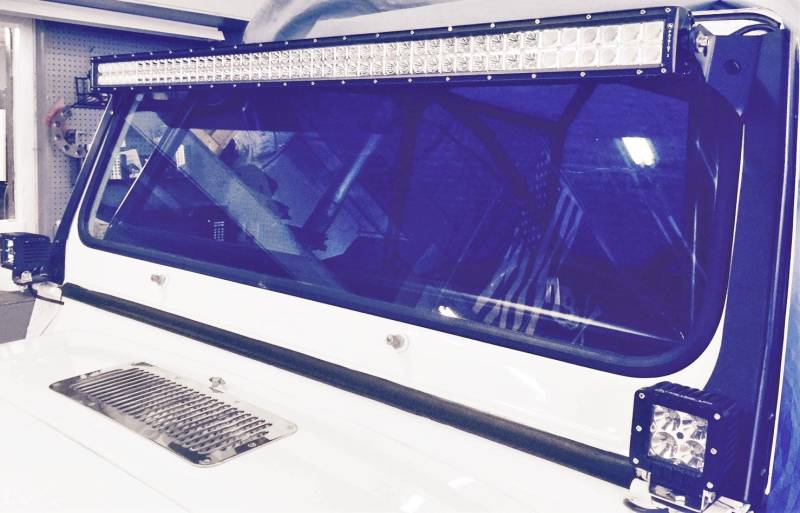

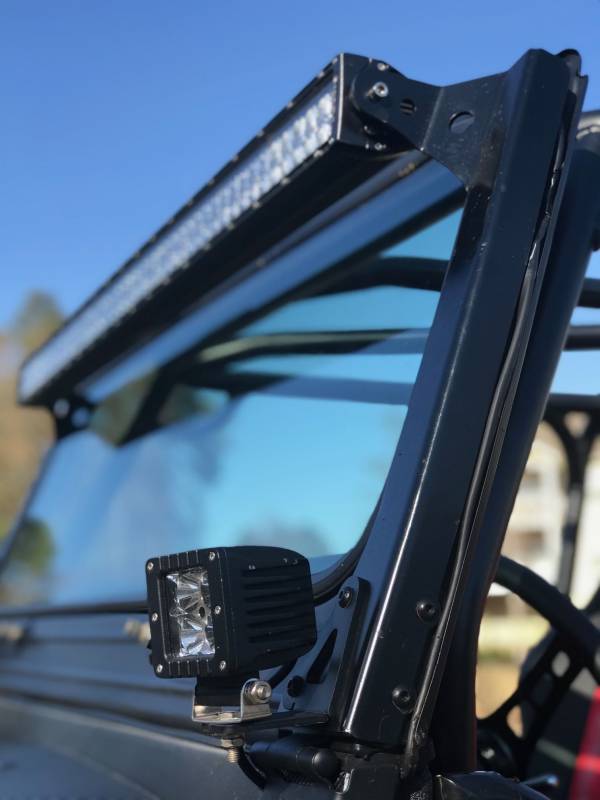

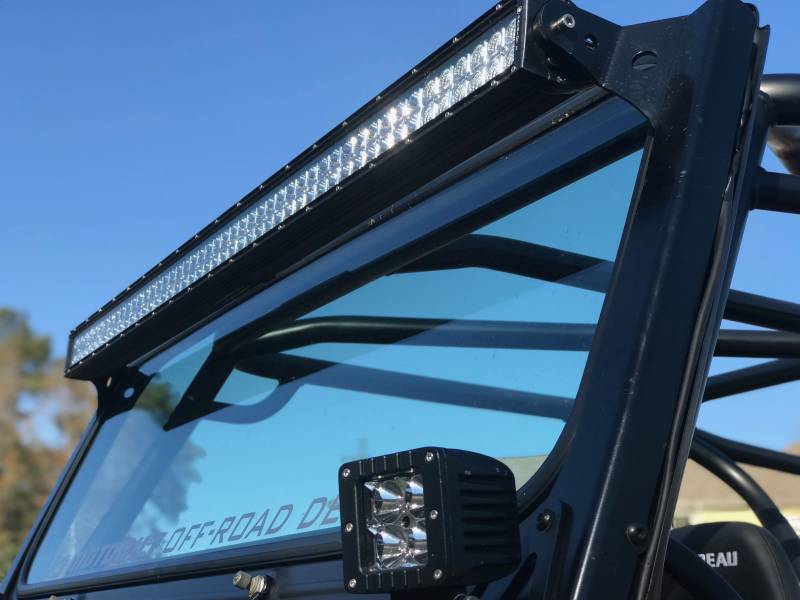

The Motobilt LED Light Bar Mounts not only mount light bars they also provide protection to the windshield frame. The Motobilt CJ / YJ light bar brackets extend to the top of the windshield frame to provide full protection. To extend the LED Light Bar Brackets to the top of the windshield frame and keep a tight fit we had to add additional bends at two points up the bracket. Mounting the brackets is a simple process. The brackets bolt into the upper half of the Jeep CJ / YJ windshield hinge. The light bar brackets are shipped bare steel. You will need to paint or powder coat them before use. The brackets ship with button head bolts and washers.
If you have any questions feel free to CONTACT US.
FEATURES
Fits Jeep CJ and Jeep Wranger YJ (1976 - 1995)
Designed with 3D CAD Software
CNC Laser Cut
Press Brake Formed
3/16" High Strength Steel Plate
Extend to the top of the windshield frame
Works with LED Light bars with mounting width of 50 1/4
Ships Bare Steel.
Includes Hardware
Optional Tabs for 3" LED Cube Lights (See DROP DOWN MENU to add)
