Teraflex JK Alpine CT6 Suspension System (6” Lift) *Select Model* - No Shocks - 1226000-1326000

TeraFlex Alpine CT (Cross-Trail) Suspension Systems begin where our Sport S/T (Street/Trail) Suspension Systems end.

The granddaddy of all our kits, the TeraFlex ALPINE CT6 SUSPENSION SYSTEM is engineered to excel on road, in the desert, trail driving, and rock crawling! The 6” lift ALPINE CT6 builds on the 4” lift ALPINE CT4 by adding a heavy-duty drag link flip kit and heavy-duty frame brace kit to correct steering geometry, eliminate front end shimmy, and reinforce the frame.

Thanks to our fully adjustable Alpine long flexarms, this dependable and maintenance-free kit has been engineered to allow tuning of the pinion, caster, anti-squat, and tire position. The adjustable long flexarms also optimize front and rear roll centers., while the adjustable front and rear track bars eliminate side-to-side movement. The gusseted and reinforced bracketry reduces noise, vibration, and harshness (NVH) compared to other longarm kits.

All of this adds up to provide full suspension articulation and flex off-road along with superior ride quality and performance on road as well as minimal brake dive and squat under acceleration to better put the power down on any surface.

Does NOT include shocks. We recommend Falcon shock absorbers for superior performance. Falcon shocks and TeraFlex coil springs have been designed to work together to improve both compression and rebound for optimal vehicle stability.

FITS:

• JK Wrangler (2-door & 4-door, see options above)

SPECS:

• LIFT HEIGHT: 6”
• MAX TIRE DIAMETER: 38”

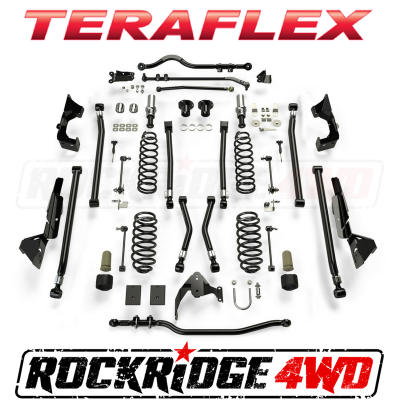

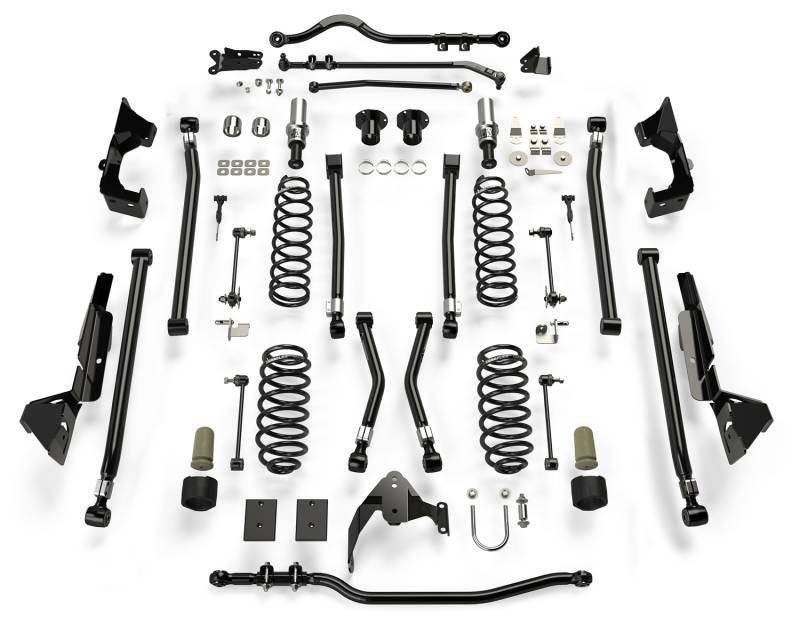

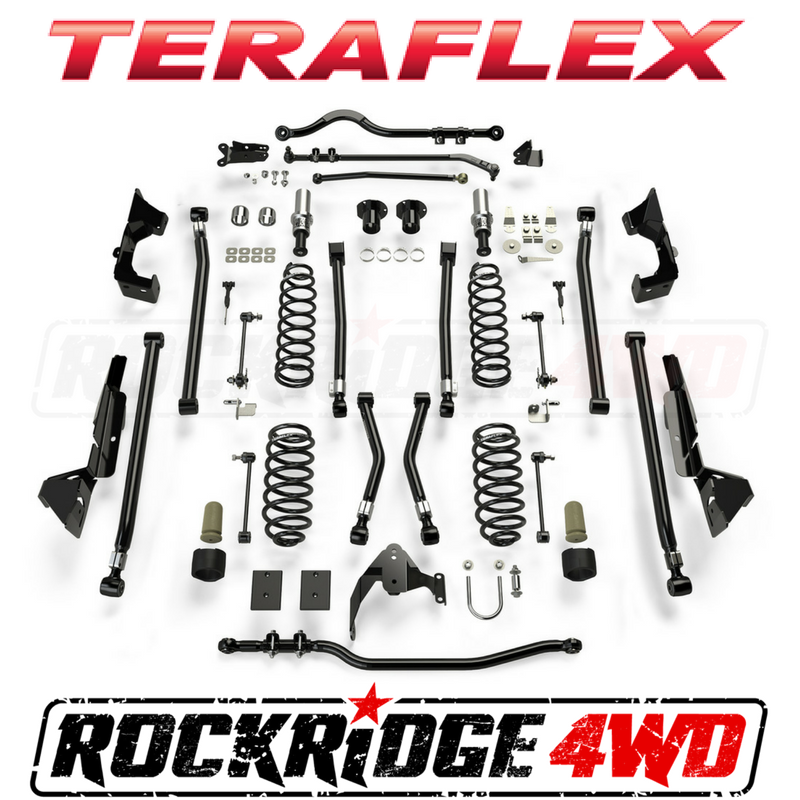

INCLUDES:

• 6” lift coil springs
• Eight (8) fully adjustable Alpine long flexarms
• Long flexarm brackets (weld-on)
• HD forged adjustable front & rear track bars
• HD drag link flip kit & HD frame brace kit
• SpeedBump bump stops
• Front & rear brake lines
• Front brake line anchor kit
• Front sway bar quick disconnects
• Rear sway bar links
• Exhaust spacers
• All necessary hardware
• And more

FEATURES & BENEFITS:

• Dependable performance w/ zero worries
• Positive, responsive handling w/ reduced noise, vibration, & harshness (NVH)
• Fully adjustable Alpine long flexarms optimizes correct caster & pinion angles for 3-6” lift kits
• High-quality, maintenance-free factory-style bushings provide excellent vibration damping & ride quality
• HD forged adjustable front & rear track bars
• HD drag link flip kit & HD frame brace kit
• SpeedBump progressive bump stops
• Full range of movement for off-road flex & articulation
• TeraFlex Lifetime Warranty

NOTES:

• Requires aftermarket wheels w/ 4.5” backspacing or less – or OFFSET WHEEL ADAPTERS (# 1055000) for stock wheels.

• Requires driveshaft modifications.

• Cutting & welding required.

• Alignment required.

• Requires longer shocks (not included in base kit) – Falcon shock absorbers recommended.

INSTALL TIME: 24 Hours (including shocks)
