Teraflex JK Alpine CT3 Suspension System (3” Lift) - No Shocks *Select Model* - 1223000-1323000

TeraFlex Alpine CT (Cross-Trail) Suspension Systems begin where our Sport S/T (Street/Trail) Suspension Systems end.

Designed to tackle Baja silt beds as well as the daily commute, the ALPINE CT3 SUSPENSION SYSTEM is the no-compromise choice for the true weekend warrior with a do-it-all attitude. The 3” lift ALPINE CT3 builds on the 3” lift SPORT S/T3 by stepping up to a complete set of our bolt-on fully adjustable Alpine flexarms for full suspension adjustability both on- and off-road.

Thanks to our fully adjustable Alpine flexarms, this dependable and maintenance-free kit has been engineered to allow tuning of the pinion, caster, anti-squat, and tire position. The adjustable flexarms also optimize front and rear roll centers. while the adjustable front track bar and rear track bar bracket eliminate side-to-side movement.

All of this adds up to provide full suspension articulation and flex off-road along with superior ride quality and performance on road as well as minimal brake dive and squat under acceleration to better put the power down on any surface. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH) compared to other kits. The ALPINE CT3 SUSPENSION SYSTEM is the best of both worlds!

Does NOT include shocks. We recommend Falcon shock absorbers for superior performance. Falcon shocks and TeraFlex coil springs have been designed to work together to improve both compression and rebound for optimal vehicle stability.

FITS:

• JK Wrangler (2-door)

• JK Wrangler Unlimited (4-door)

SPECS:

• LIFT HEIGHT: 3”
• MAX TIRE DIAMETER: 35”

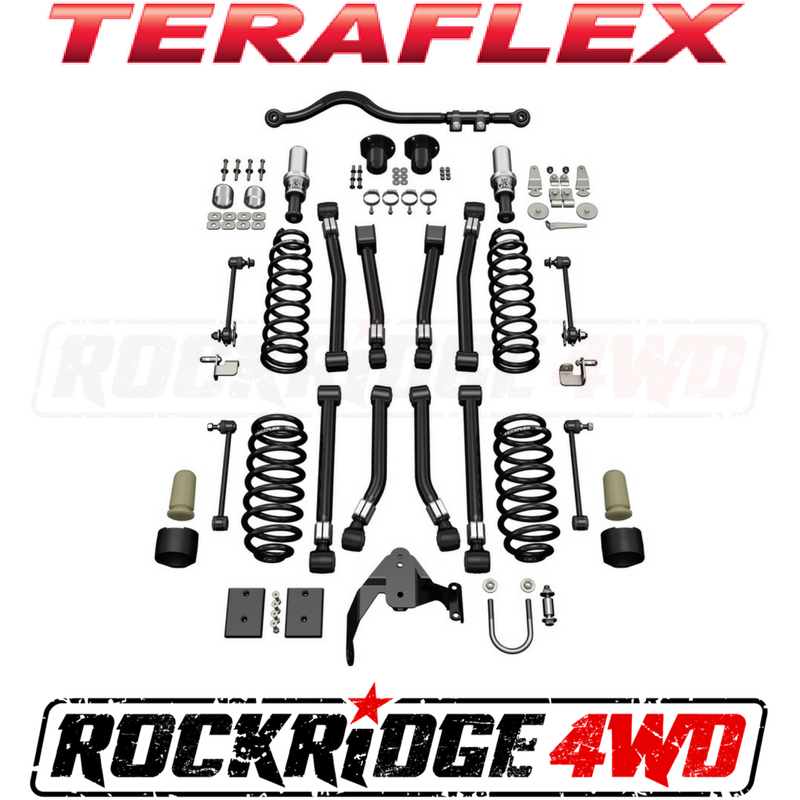

INCLUDES:

• 3” lift coil springs
• Eight (8) fully adjustable Alpine flexarms
• HD forged adjustable front track bar
• SpeedBump bump stops
• Front brake line anchor kit
• Front sway bar disconnects
• Rear track bar bracket
• Rear sway bar links
• Exhaust spacers
• All necessary hardware
• And more

FEATURES & BENEFITS:

• Dependable performance w/ zero worries
• Positive, responsive handling w/ reduced noise, vibration, & harshness (NVH)
• Fully adjustable Alpine flexarms optimize correct caster & pinion angles for 2.5-4” lift kits
• High-quality, maintenance-free factory-style bushings provide excellent vibration damping & ride quality
• HD forged adjustable front track bar
• SpeedBump bump stops provide progressive compression during high-speed suspension movement
• Full range of movement for off-road flex & articulation
• Install & drive simple bolt-on installation – no welding required
• TeraFlex Lifetime Warranty

NOTES:

• Requires aftermarket wheels w/ 4.5” backspacing or less – or OFFSET WHEEL ADAPTERS (# 1055000) for stock wheels.

• Driveshaft modifications may be necessary with this suspension system. See the TeraFlex RZEPPA HIGH ANGLE CV KIT (# 1744014).

• 2007-2011 JK /JKU models will require EXTENDED LENGTH FRONT BRAKE LINES (# 4353300).

• Requires cutting.

• Alignment required.

• Requires longer shocks (not included) – Falcon shock absorbers recommended.

INSTALL TIME: 11 Hours (including shocks)
