Spod JK 6 SWITCH PANEL WITH DUAL LIT LED AMBER SWITCHES 07-08 WRANGLER JK - 600-07LT-LED

JK 6 Switch Panel with dual lit LED Amber switches. Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 11.2VDC and cuts-back in at 12.8VDC so there is enough juice to start your vehicle in case you left an accessory on!

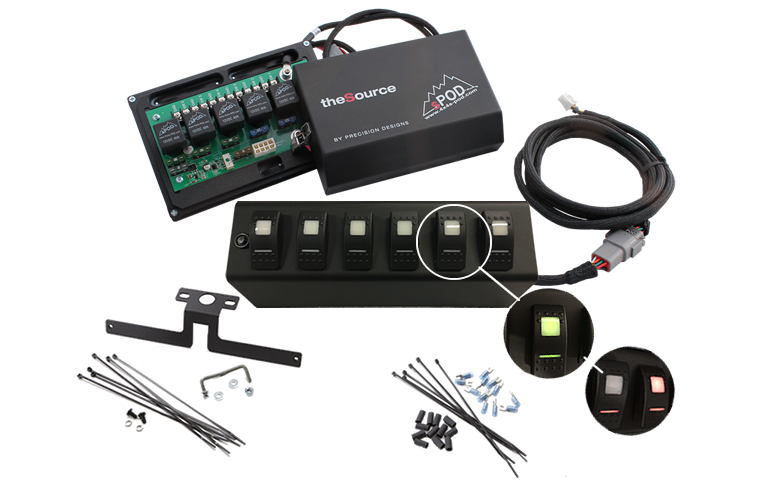

Each system includes the following:

• All required mounting brackets and hardware.
• System will come pre-wired ready to install.

Included:

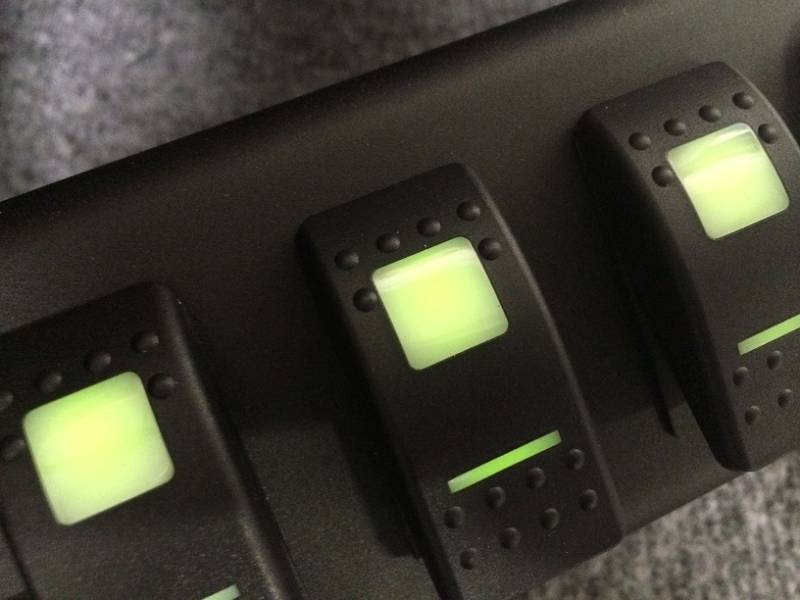

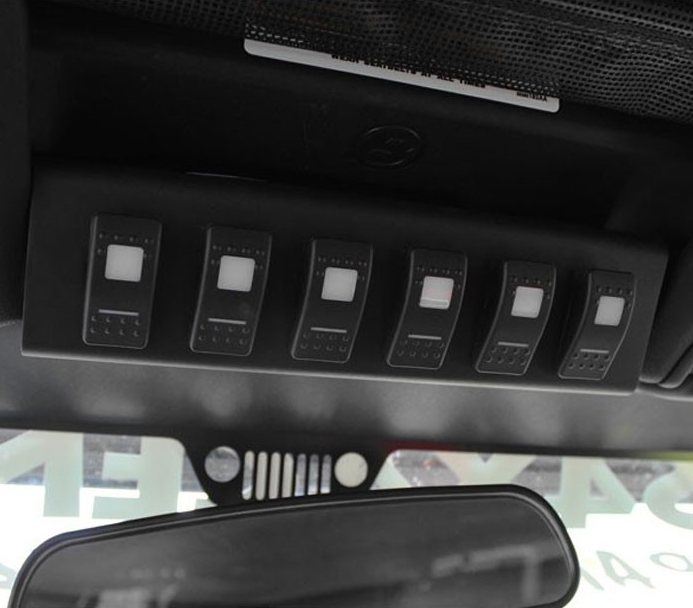

• Switch panel, six dual lit LED Amber switches (installed and pre-wired)
• Two piece Wire Harness set with 8 multi-color leads utilizing 18 gauge wires. Each end has an automotive connector made by Deutsch.
• All wires are wrapped in high temp abrasion resistant nylon braided sleeving.

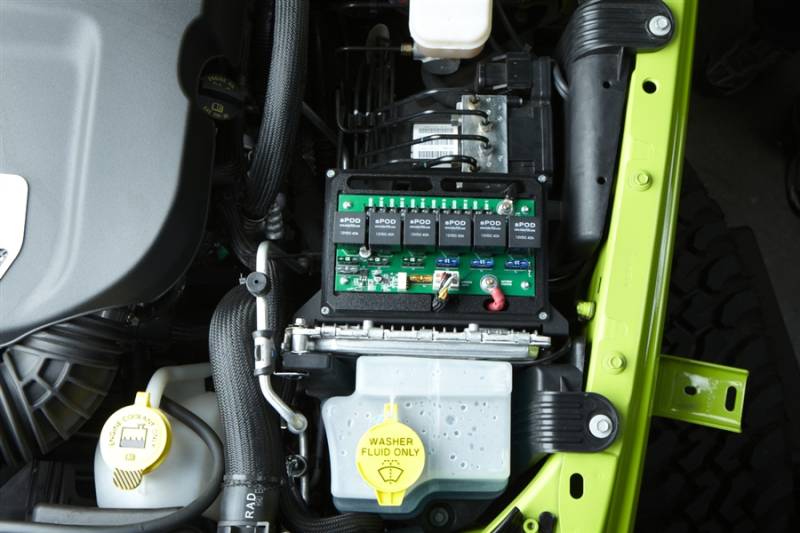

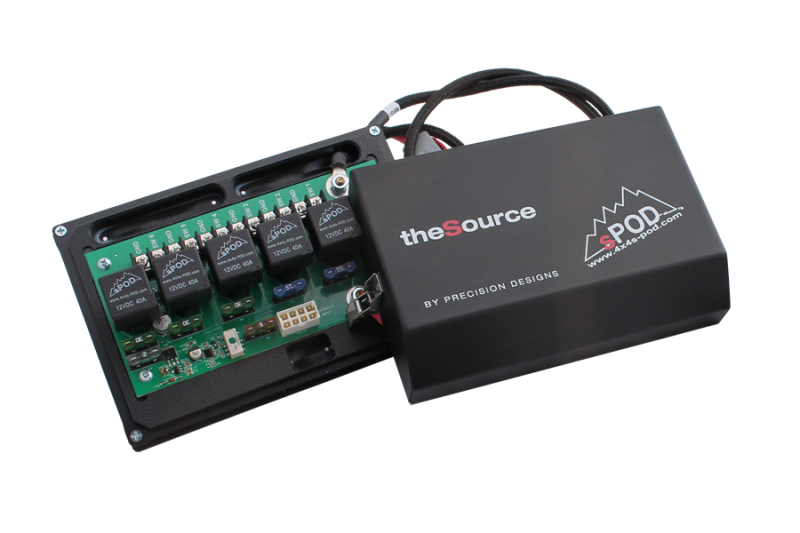

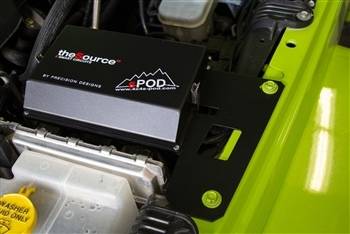

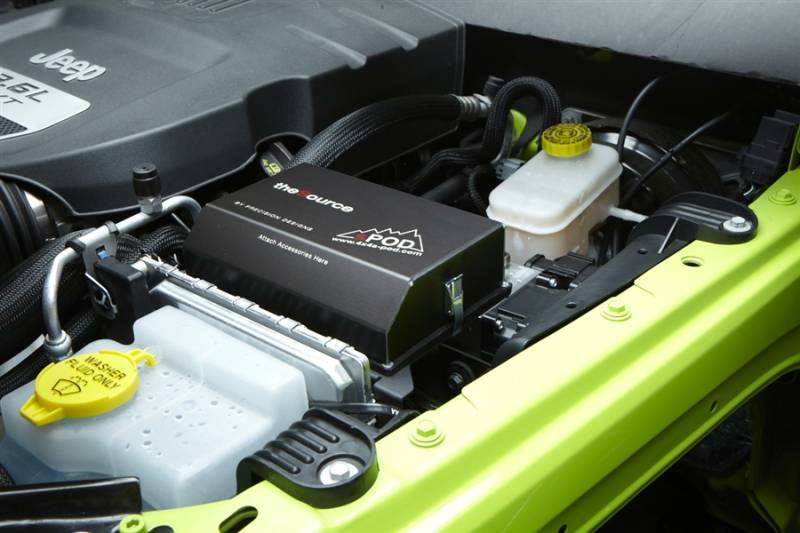

• The Source 6 Circuit power distribution system includes:
• 12 position terminal block for accessory attachment
• 6 Bosch style cube style relays (SPST 40amp) (plug-in style)
• 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
• 6 Diodes to protect sensitive accessories such as LED lights from field collapse
• Inline 50 amp manual resetting circuit breaker
• 8 gauge power leads with crimped and soldered terminal for connection to the battery
• LVCO can be disabled
• Mounting bracket for Jeep Wranglers
