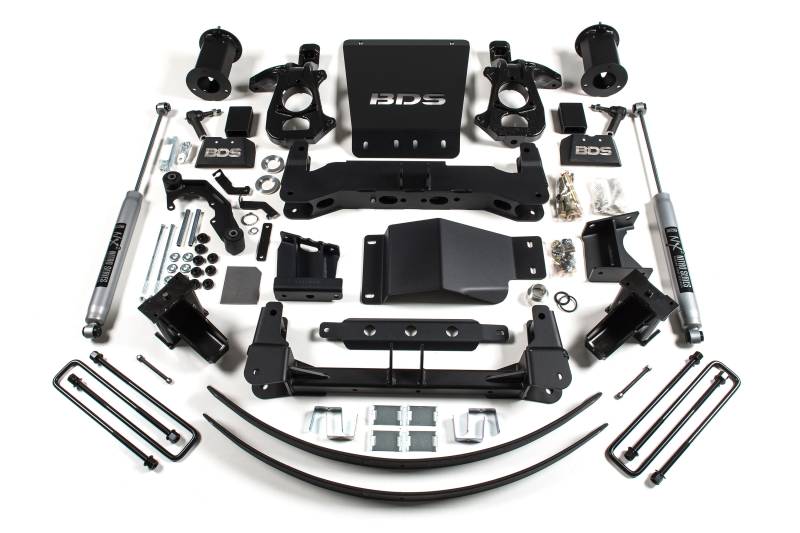

BDS 8" Suspension System | 14-18 Chevy / GMC 1500 4WD - 743H

• Tire & Wheel Combinations
• 35" x 12.50" w/18 x 9 and 5" back spacing
• 35" x 12.50" w/20 x 9 and 5" - 5.5" back spacing
• 35" x 12.50" w/22 x 10 and 5" - 5.5" back spacing

*Trimming may be required*

• Est. Installation: 8 hours
• Difficulty Level (easy 1 - 5 complicated): 4

Important Kit Notes

• *IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2017 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referecing our help images when customizing your kit.

• ---

• 1. Requires frame bracket modification
• 2. Requires differential modification to clear electric power steering
• 3. Vehicles came from the factory with several knuckle/control arm configurations requiring specific kit selections. Be sure to reference the important notes and images above to determine the correct control arm selection for your application.
• 4. Will not fit MagneRide magnetic ride control equipped models
• 5. Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference

Vehicle Fitment Information

• 2014 Chevy / GMC 1/2 Ton Pickup 4WD w/o Magneride
• 2015 Chevy / GMC 1/2 Ton Pickup 4WD w/o Magneride
• 2016 Chevy / GMC 1/2 Ton Pickup 4WD w/o Magneride
• 2017 Chevy / GMC 1/2 Ton Pickup 4WD w/o Magneride
• 2018 Chevy / GMC 1/2 Ton Pickup 4WD w/o Magneride

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
