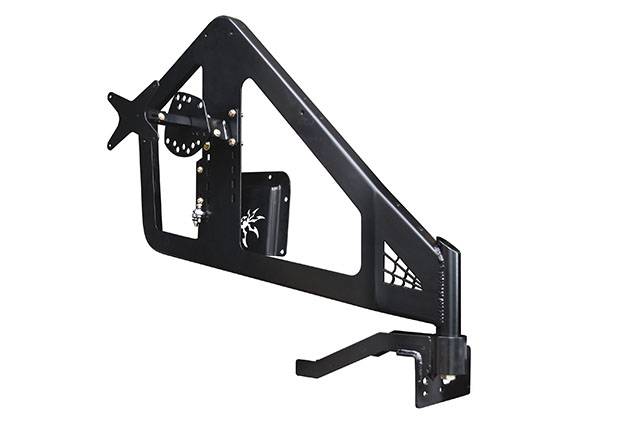

Poison Spyder Customs Jeep Wrangler JK Frame Mounted Tire Carrier (Black)

• 07-Current Wrangler JK, 2 & 4 Door
• Frame mounted for strength without stress to body or bumper
• Single-action opens and closes with Jeep’s tailgate
• Compatible with Crawler™ and Bruiser™ series rear bumpers
• Concealed heavy duty pivot with tapered roller bearings
• SpyderShell™ Armor Coat finish with 5-Year Warranty

Frame Mounted For Strength
Frame-mounting provides the ultimate strength for a pivoting spare tire mount on Jeeps. Body mounted tire carriers place the weight and stress of the spare tire on the Jeep's tailgate and/or body. Bumper-mounted tire carriers are better, switching those forces to the bumper, which is in turn bolted to the frame. But the ultimate strategy is to go right to the source of the Jeep's structural integrity: bolt it right to the frame. The Poison Spyder JK Frame Mounted Tire Carrier does just that, using a triangulated mounting bracket that secures to the Jeep's frame rail and rear crossmember in three planes.

Single-Action-Opening
The Frame Mounted Tire Carrier's Single-Action-Opening feature is a huge convenience for when you're trying to open the tailgate and tire carrier with one hand, when you've got an armload of gear or groceries in the other. Rather than latching to itself, the Frame Mounted Tire Carrier is tethered to the tailgate so that they open and close in tandem. A custom designed tie-rod assembly, bumper mechanism and tailgate plate keep the two pieces perfectly aligned when open, but tight and rattle-free when closed.

*Multiple Bumper Compatibility
The JK Frame Mounted Tire Carrier is compatible with Poison Spyder Bruiser&trad; and Crawler&trad; series rear bumpers. This provides an upgrade path for Jeep owners who wish to purchase the bumper first, and then upgrade to the tire carrier at a later date. The tire carrier may be added later, without needing to replace or alter the Bruiser&trad; or Crawler&trad; series bumper (removal of the bumper is required during installation of the tire carrier). The JK Frame Mounted Tire Carrier is also compatible with previous generation RockBrawler&trad; II series rear bumpers that were originally purchased without an integrated tire carrier (some DIY modifications required). The Frame Mounted Tire Carrier may also be installed without any bumper at all, if the owner chooses.

Concealed Heavy Duty Pivot
The Frame Mounted Tire Carrier uses an extreme duty pivot assembly that is located below the deck of the rear bumper, to allow the tire carrier to be tucked in closer to the Jeep's body tub and provide better off-road clearances. The pivot assembly includes a precision CNC machined spindle and housing, with a pair of high quality Timken tapered roller bearings to provide smooth operation under the heaviest loads Spindle seals keep your lubrication in, and dirt and water out.

Fabricated Plate Steel Construction
The tire carrier swing is fabricated entirely from CNC laser cut, precision brake-formed plate steel. The pieces are expertly welded together in a specially designed assembly fixture to ensure consistent fit and quality. A web gusset design is cut into the corner of the tire carrier to provide a little Poison Spyder flare.

2-Way Adjustable Tire Mount
The tire mount is adjustable up and down, as well as in and out, to accomodate a wide variety of tire sizes up to 40". The adjustability allows the tire to be mounted as low as possible for any tire size, to keep a low center of gravity. The wheel mounting plate includes lug stud holes for a variety of wheel bolt patterns, including the JK's stock pattern 5 X 5" (also includes 5 X 4.5", 5 X 5.5", 6 X 5.5" and 8 X 6.5")

License Plate Relocation Mount
The included license plate mount places the license plate at the center of the spare tire, for those who choose to move it there. If relocating the license plate, our License Plate Delete Cover and LED License Plate & 3rd Brake Light (each sold separately) will be useful in completing the relocation. The tire carrier assembly includes tie-in loops along the cable-way, to secure the wiring for any license plate light, third brake light, or backup camera you choose to install.

SpyderShell™ Armor Coat
SpyderShell™ is more than just powder coating—it's a complete system that includes the state of the art in preparation, application, materials and packaging to ensure that your SpyderShell™ products stay looking great for years. The SpyderShell™ process has been engineered to provide your Poison Spyder product with years of unmatched great looks, corrosion protection and weather-resistance. Our proprietary 6-stage system starts with media blasting the entire part, to remove contaminents and prep the metal surface for the best possible adhesion. Next, any seams are sealed with 3M Scotch-Weld to block moisture from entering and causing corrosion where the powder can not reach. The first coat to be applied is a zinc-rich powdered black primer, which is baked on to form an impenetrable bond between the metal product and the coating. The primer is black--rather than traditional gray--so that any rock chips or trail damage are less conspicuous. The final top coat is an industrial grade, "super-durable" architectural finish in semi-gloss black, which is engineered to retain its appearance through years of exposure to sun and weather. SpyderShell is a coating process unmatched by any other Jeep armor aftermarket manufacturer, for which we are confident in offering a 5-year warranty on materials and workmanship.

Optional Hi-Lift Jack Mount
A custom Hi-Lift Jack Mount, available separately, is CNC laster cut and bolts to the top of the tire carrier. It features a distinctive web design to match the corner gusset detail on the RockBrawler™ II Tire Carrier, and mounts the Hi-Lift jack above and forward of the spare tire to keep it tucked up and away until needed.

Future Accessory Upgrade Possibilities Built-In
Along each surface of the tire carrier we've built in threaded mounting holes for future upgrades. While Poison Spyder may release additional accessories for the tire carrier at a future date, DIY'ers may find these mounting holes handy for attaching home-built brackets and mounts for accessories of their own choosing. Some suggestions might be alternate mounting for a Hi-Lift jack, fuel can or Rotopax mounts, coolers, hunting racks, tool boxes, etc.
