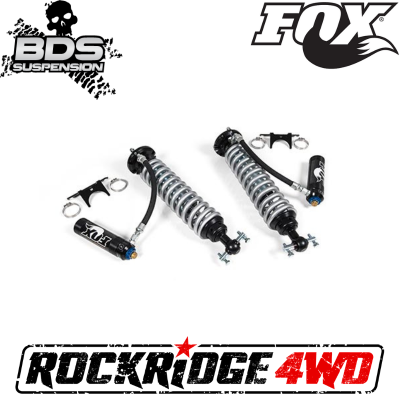

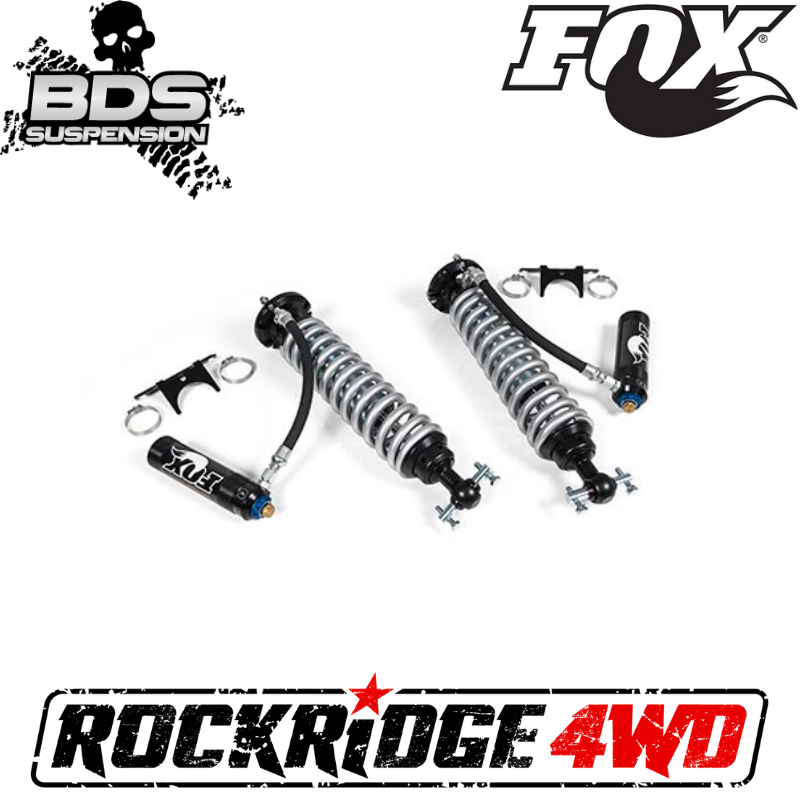

BDS Fox 2.5 Coil-Overs W/ DSC for 07-13 Chevy / GMC 1500 4WD w/ 6" Of Lift - 883-06-059

Must know if your suspension will work with these coil-overs.  They work with most 6" lifts.

Extended Length - 24.15"

Collapsed Length - 18.38"

BDS continues to uphold our reputation of offering only high end components with these new coil-over shocks, a collaboration design by both BDS and Fox Racing. These coil-overs are built on the foundation of the Fox Factory Series 2.5 Remote Coil-over with Dual Speed Compression (DSC) adjusters and have been designed to work with BDS lift systems. The coil-overs come preloaded with Eibach coil springs and specifically tuned valving, and are adjusted to achieve the proper ride height right out of the box. These coil-over kits come boxed as a pair with remote reservoir mounting brackets, DSC adjusters and all of the necessary hardware.

FOX Dual Speed Compression (DSC) Adjuster Technology | The Dual Speed Compression (DSC) adjuster provides added control and comfort tuning for on-road use while also offering more aggressive damping for use off-road. The adjuster allows for precise suspension tuning with the simple twist of two clearly defined knobs: No tools and no mess, just a way to easily fine-tune your suspension to best suit your needs in any conditions. The DSC increases both low and high-speed compression levels up to 25%, allowing you to maximize small bump compliance and traction while still having the extra damping required for big hits.

- LSC Adjustment Range - The Low Speed Compression (LSC) adjuster knob offers 10 clicks of adjustment and primarily affects compression damping during slow suspension movements such as G-outs or smooth jump landings. It also affects wheel traction and the harshness or plushness of the vehicle's ride.

- HSC Adjustment Range - The High Speed Compression (HSC) adjuster knob offers 12 clicks of adjustment and mainly affects compression damping during medium to fast suspension movements such as steep jump faces, harsh flat landings, and aggressive wash board roads.

Body | 2.5" Smooth bore and honed seamless alloy bodies

Body Plating | Zinc-plated and double-clear coated for long lasting finish

External Reservoir | 2.5" Smooth bore 6061-T6 Aluminum is hard anodized black

Components | Black-anodized, CNC-machined 6061-T6 billet aluminum

Spring | Application specific, adjustable 3.0 Eibach® racing springs

Shaft | 7/8" hardened NitroSteel® Steel carbon shafts

Piston | 6061-T6 hard-anodized, high flow aluminum piston

Valving | Application specific valving to maximize performance

Seals | Redundant sealing pack system main seal, wiper seal, scraper seal

Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Bearing | PTFE-lined, heat-treated, alloy steel spherical

Ride Height | Coil preload is preset for proper ride height right out of the box

DSC (Dual Speed Compression) Adjuster | With DSC, you can adjust the shock's high and low-speed compression damping by simply turning the external adjusters.
