SUPERATV Polaris Ranger Full Size XP 570 8" Portal Gear Lift

Polaris Ranger Full Size XP 570 8” Portal Gear Lift

The Portal Advantage
Ready to go big? With SuperATV’s 8” Portal Gear Lift installed on your Polaris Ranger 570 Full Size, you can go bigger than you thought possible—bigger tires, bigger mud bogs. Thanks to a 45% gear reduction, your machine will have enough torque to feel like it’s running stock tires on flat ground. It maintains your axle geometry so your drivetrain lasts longer. Gear Driven Performance gives you so much torque back, you’ll think we switched out your engine.

NEW to 8” Portals

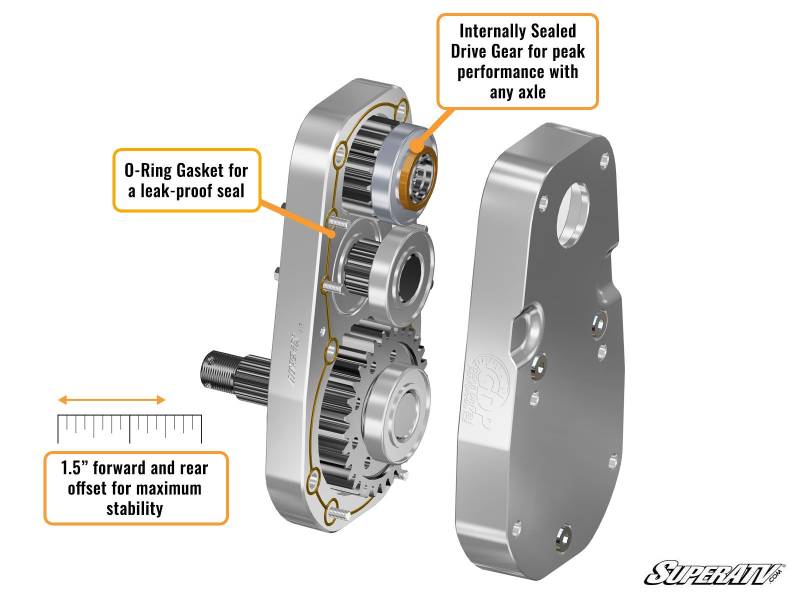

Our 8” portals for the Ranger feature a 1.5” forward and rear offset. This gives you room for bigger tires—up to 34” without any other modifications.

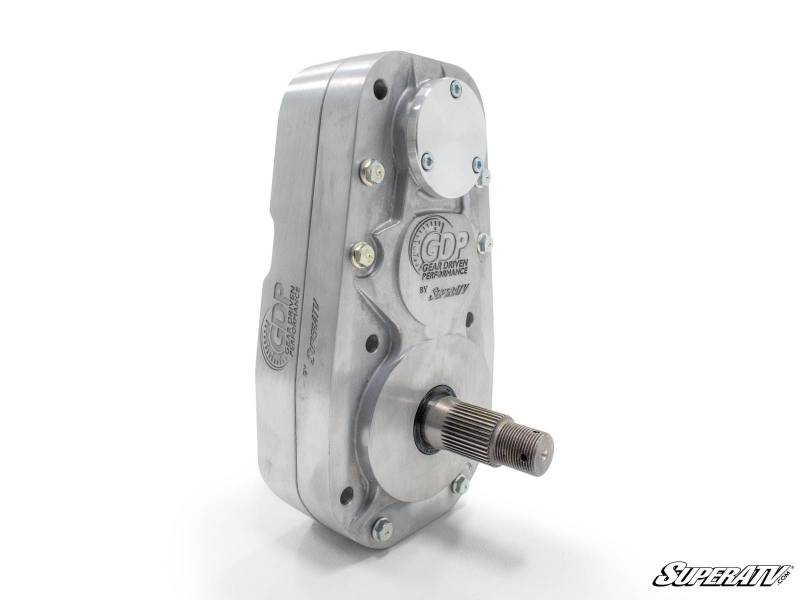

The drive gear now seals internally against the housing, not the axle. Even if your axle is dirty, dinged up, or otherwise well-used, the drive gear still seals perfectly and keeps all contaminates out of your portal box.

To ensure the rest of the box is sealed, we utilize a new O-ring gasket in a machined groove that keeps oil in and mud out, no matter how deep you go.

45% Gear Reduction?
Sure, Gear Driven Performance means you get a 45% gear reduction (1.82:1 gear ratio) — AKA a whole ton of torque. What that means is you can put monster tires on your Ranger without destroying your drivetrain. These portal gear lifts maintain your stock axle geometry so they last longer while giving you a massive 8” lift at the same time. When you see GDP stamped on your hub, you know it means you’re in for a good time.

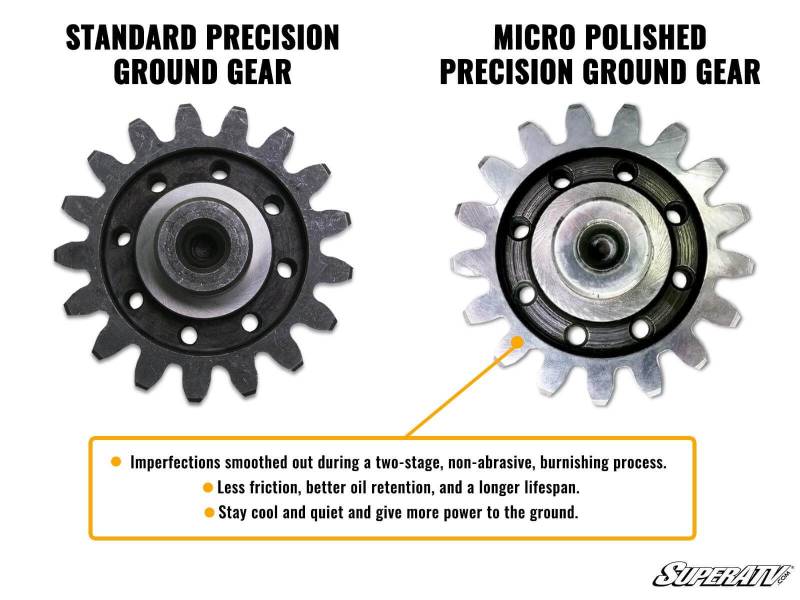

What Are Micro Polished Gears?
If you want maximum performance, choose our precision ground Micro Polished Gears. Micro Polishing is a process that gently smooths out any imperfections in the surface of the metal during a two-stage, non-abrasive, burnishing process that produces a chrome-like finish. The result is unbelievably smooth gears that have almost zero friction or resistance. This means better oil retention and a longer lifetime than other gears. They will stay cool and quiet, while giving you a little more power to the ground.

Do I need a Frame Stiffener?
Yes, we highly recommend running a SuperATV Frame Stiffener with your 8" Portal Gear Lift. Why? When you push the limits and go big with your Ranger 570, the stock frame just doesn't have what it takes. Drive too fast or bump too hard and the OEM frame will bend. Trust us — we've done it. A frame stiffener reinforces your frame enough to let you ride your 8" portals with monster tires and no worries.

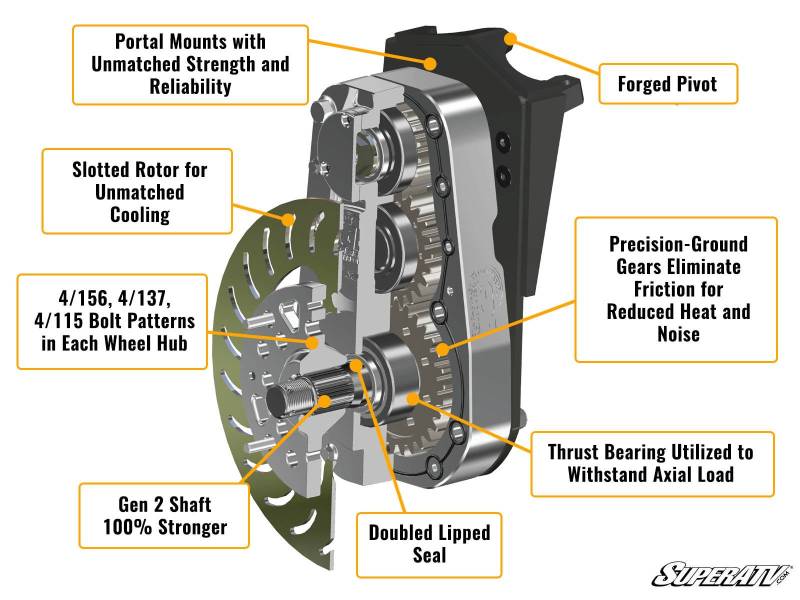

Performance

• 45% gear reduction
• 1.5" forward and rear offset maximum

No Leak - Bearings and Seals

• First in the industry thrust bearing that is specifically designed to take axial load, unlike the standard bearing that is only sufficient for radial loads
• Automotive grade bearings
• Press fit, precision ground gears and shafts to eliminate unwanted slop
• Sealed drive gear for peak performance with any axle
• O-ring gasket seals housing halves for leak-free riding

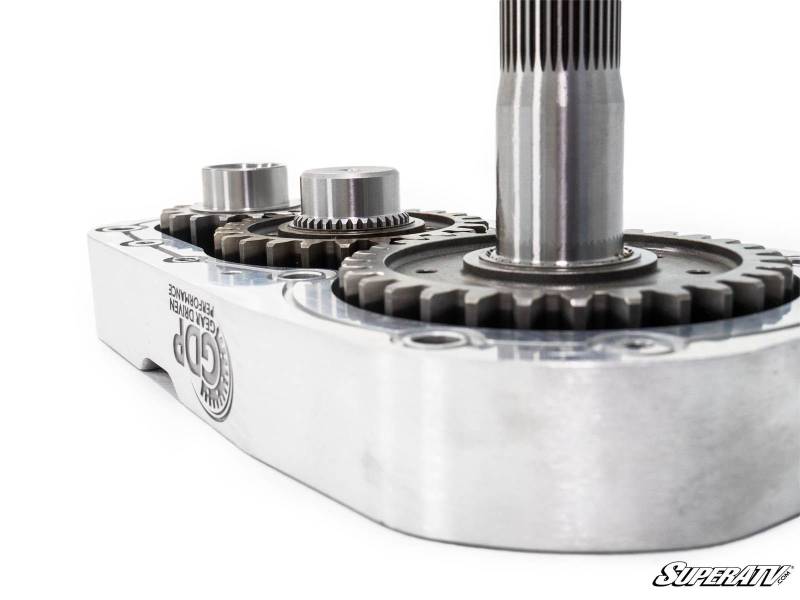

Precision-Ground Gears: Drive Gear, Idler Gear and Driven Gear

• Eliminates friction for reduced heat
• Quiet gears at all speeds
• Allows you to run at higher speeds

Gen 2 Portal Drive Shaft

• Designed to be unbreakable
• Made of 4340 hardened steel
• 1.5 in diameter (40 mm)
• M30 threads

Mounting Plates and Pivot Blocks

• CNC formed, fully gusseted 5/16" mounting plates
• Forged pivot blocks
• Carbon steel caliper mounting plates

Gen 2 Slotted Rotors for Unmatched Cooling

• Each wheel hub includes 4 bolt patterns 4/156, 4/137, 4/115, 4/110
• Ability to utilize different wheels on same hub
• Extra thick hub designed to handle any torque
• Stainless steel, braided brake lines included in each kit

Wheel Requirements

• Requires a 22" or larger wheel
• Wheels cannot exceed 5" backspacing

Looking For a Different GDP Size Option?
We also have 4" and 6" GDP Portal Gear Lifts for your machine. If you are looking for other gear reduction options or a little less lift check out these other great products.

Polaris Ranger XP 570 | 4" Portal Gear Lift (30% Gear Reduction)
Polaris Ranger XP 570 | 6" Portal Gear Lift (45% Gear Reduction)
