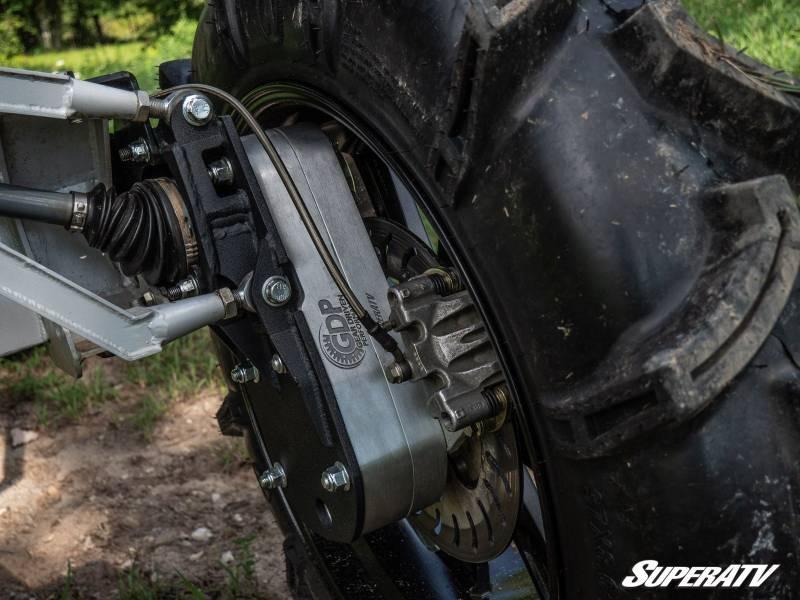

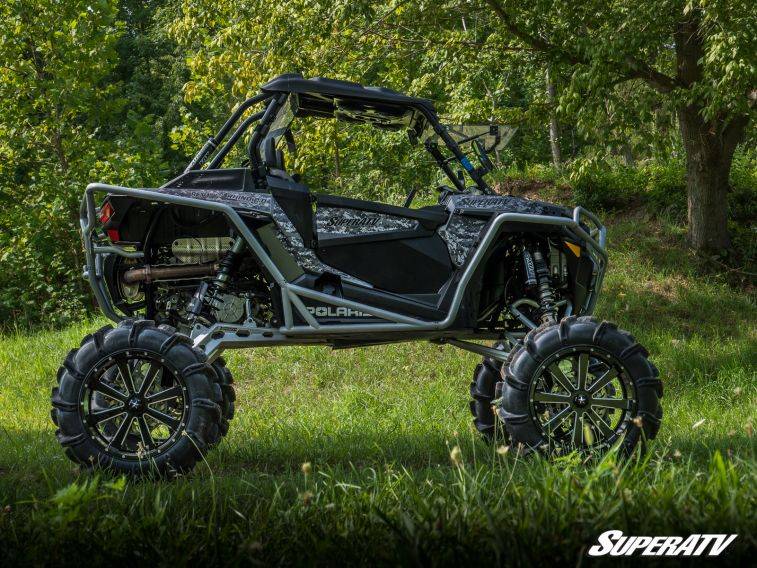

SUPERATV Polaris RZR XP Turbo 8” Portal Gear Lift

Polaris RZR XP Turbo 8” Portal Gear Lift

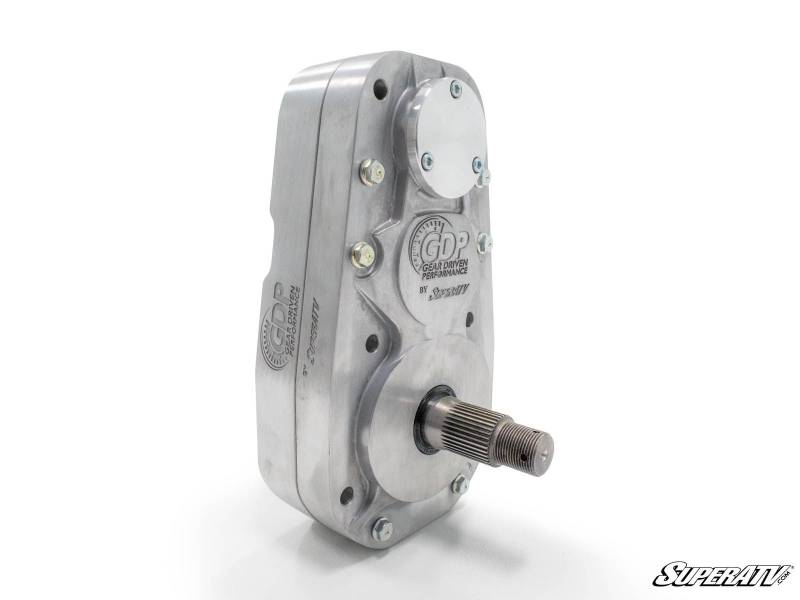

The Portal Advantage

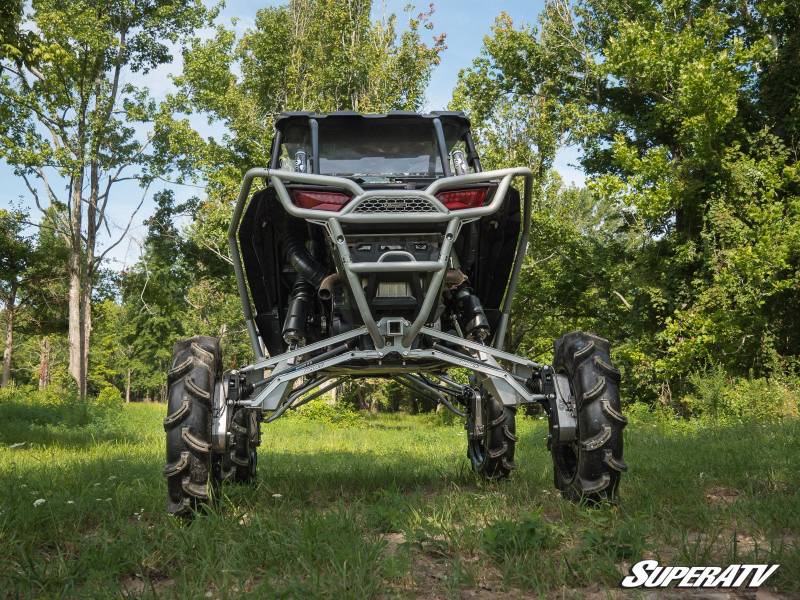

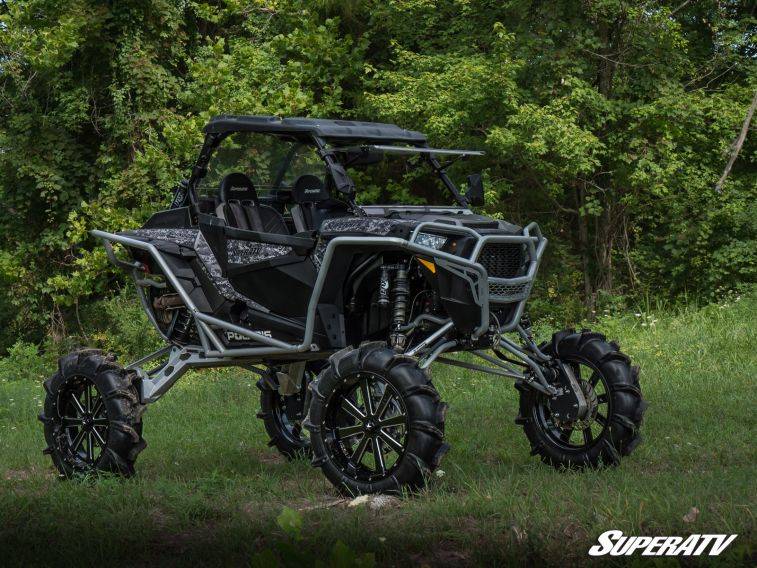

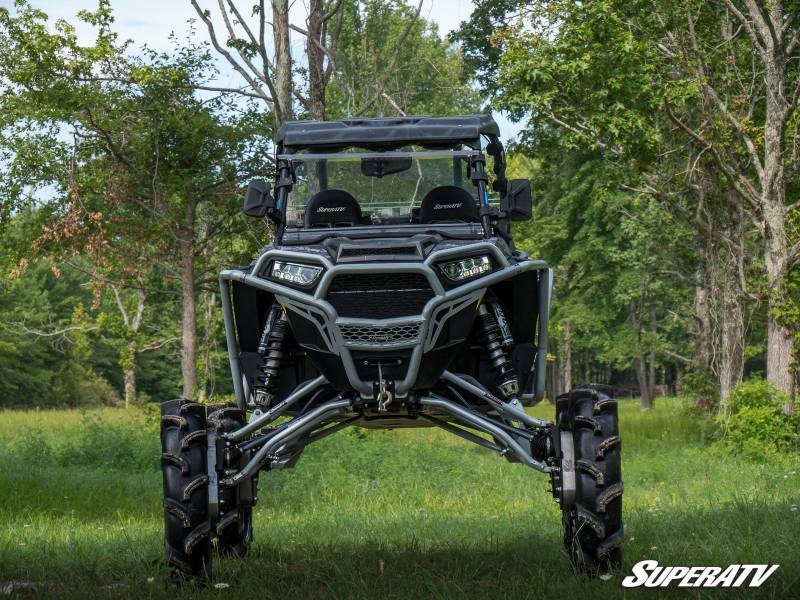

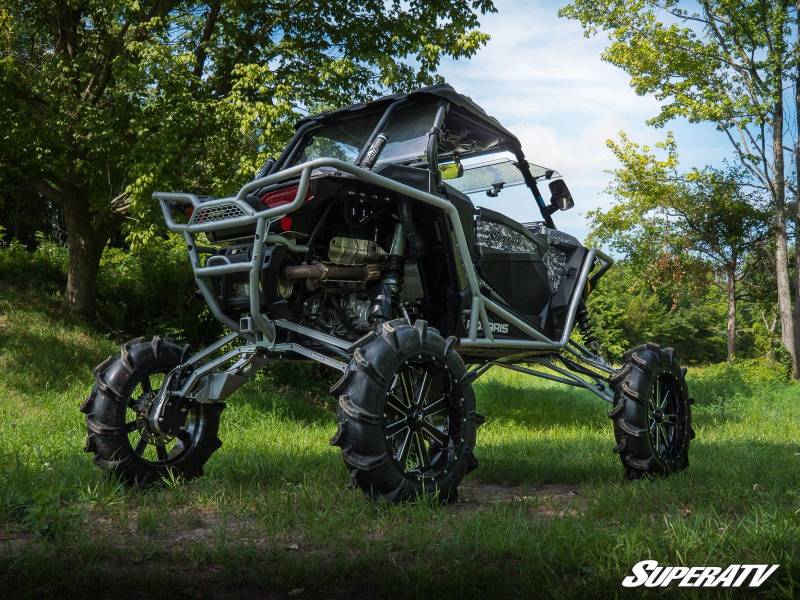

Gear Driven Performance has never been better than with SuperATV’s 8” Portal Gear Lift for the Polaris RZR XP Turbo. It’s 8” of lift that gives you room for monster tires, and the torque you need to turn them. A built-in 45% gear reduction reduces stress on your axles and drivetrain. You better get used to people making double takes when you’re rolling around on a set of 8” Portals.

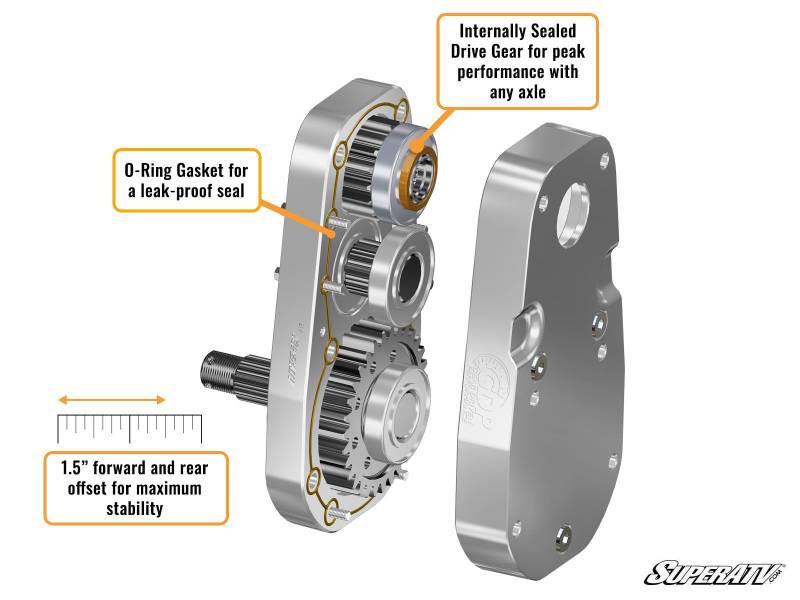

NEW to 8” Portals
Our 8” portals for the RZR XP Turbo feature a 1.5” forward and rear offset. This gives you room for bigger tires—up to 40” without any other modifications.

The drive gear now seals internally against the housing, not the axle. Even if your axle is dirty, dinged up, or otherwise well-used, the drive gear still seals perfectly and keeps all contaminates out of your portal box.

To ensure the rest of the box is sealed, we utilize a new O-ring gasket in a machined groove that keeps oil in and mud out, no matter how deep you go.

45% Gear Reduction?
The 45 percent gear reduction (1.82:1 gear ratio) at the hub removes the stress of turning tires from your machine. It’s a monster lift, but it extends the life of your axles and driveline instead beating on it. Axles keep their factory angles. It’s big, it’s practical, and it could only be made by the experts at SuperATV. It’s Gear Driven Performance.

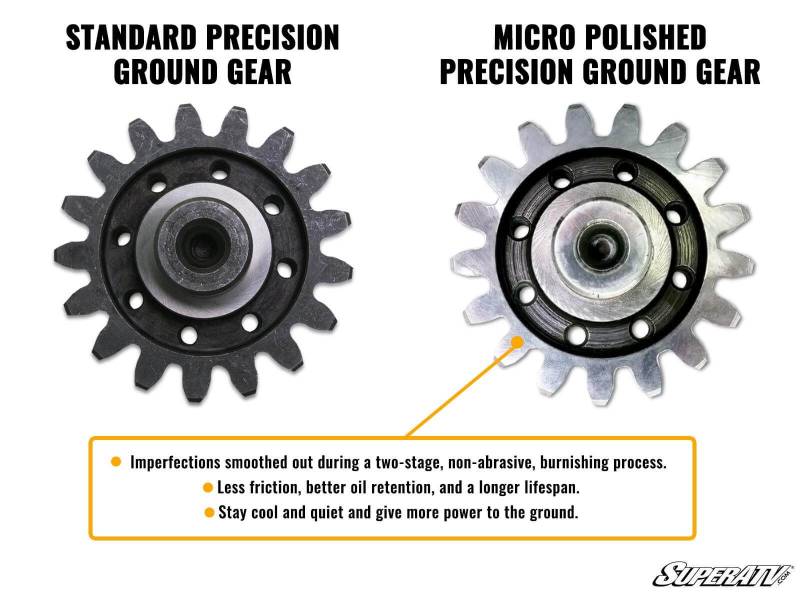

What Are Micro Polished Gears?
If you want maximum performance, choose our precision ground Micro Polished Gears. Micro Polishing is a process that gently smooths out any imperfections in the surface of the metal during a two-stage, non-abrasive, burnishing process that produces a chrome-like finish. The result is unbelievably smooth gears that have almost zero friction or resistance. This means better oil retention and a longer lifetime than other gears. They will stay cool and quiet, while giving you a little more power to the ground.

Do I need a Frame Stiffener?
Yes, we highly recommend running a SuperATV Frame Stiffener with your 8" Portal Gear Lift. Why? When you push the limits and go big with your RZR XP Turbo, the stock frame just doesn't have what it takes. Drive too fast or bump too hard and the OEM frame will bend. Trust us — we've done it. A frame stiffener reinforces your frame enough to let you ride your 8" portals with monster tires and no worries.

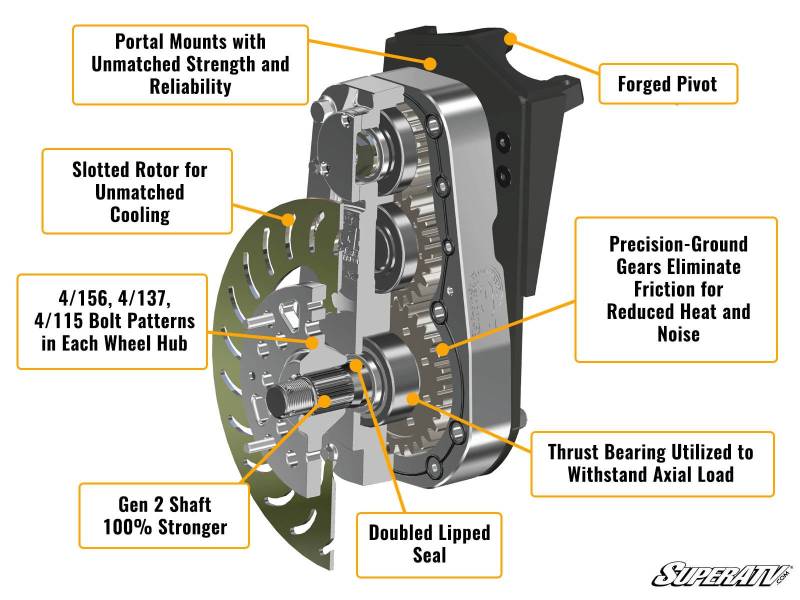

Performance

• 45% gear reduction
• 1.5" forward and rear offset maximum

No Leak - Bearings and Seals

• First in the industry thrust bearing that is specifically designed to take axial load, unlike the standard bearing that is only sufficient for radial loads
• Automotive grade bearings
• Press fit, precision ground gears and shafts to eliminate unwanted slop
• Sealed drive gear for peak performance with any axle
• O-ring gasket seals housing halves for leak-free riding

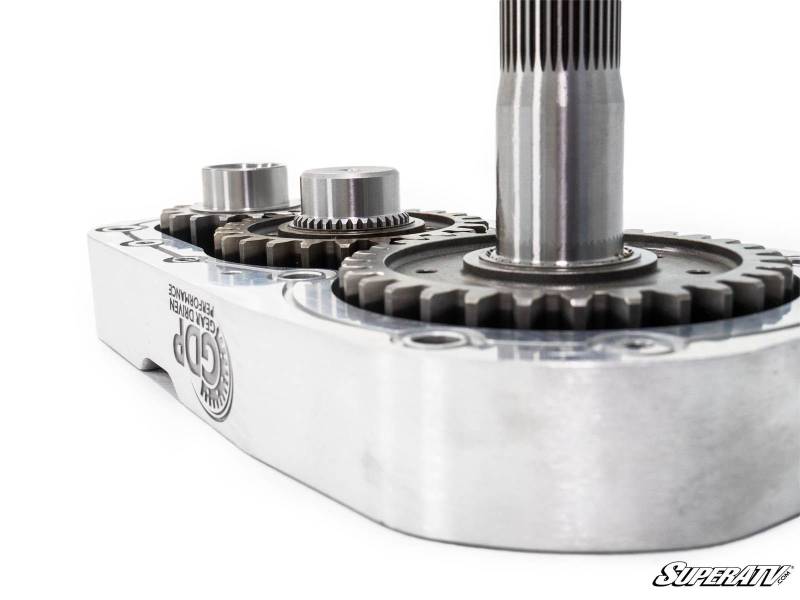

Precision-Ground Gears: Drive Gear, Idler Gear and Driven Gear

• Eliminates friction for reduced heat
• Quiet gears at all speeds
• Allows you to run at higher speeds

Gen 2 Portal Drive Shaft

• Designed to be unbreakable
• Made of 4340 hardened steel
• 1.5 in diameter (40 mm)
• M30 threads

Mounting Plates and Pivot Blocks

• CNC formed, fully gusseted 5/16" mounting plates
• Forged pivot blocks
• Carbon steel caliper mounting plates

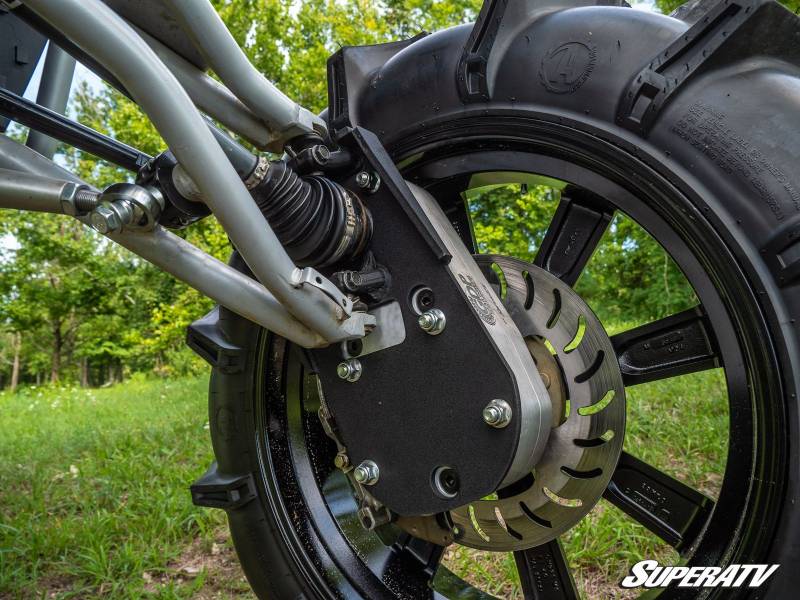

Gen 2 Slotted Rotors for Unmatched Cooling

• Each wheel hub includes 4 bolt patterns 4/156, 4/137, 4/115, 4/110
• Ability to utilize different wheels on same hub
• Extra thick hub designed to handle any torque
• Stainless steel, braided brake lines included in each kit

Wheel Requirements

• Requires a 22" or larger wheel
• Wheels cannot exceed 5" backspacing

Looking For a Different GDP Size Option?
We also have 4" and 6" GDP Portal Gear Lifts for your machine. If you are looking for other gear reduction options or a little less lift check out these other great products.

Polaris RZR XP Turbo | 4" Portal Gear Lift (30% Gear Reduction)
Polaris RZR XP Turbo | 6" Portal Gear Lift (45% Gear Reduction)
