SUPERATV Polaris Ranger XP 1000 6" Portal Gear Lift

SAT-PGH6-X
Please Call for Availability
888-411-8493

Description

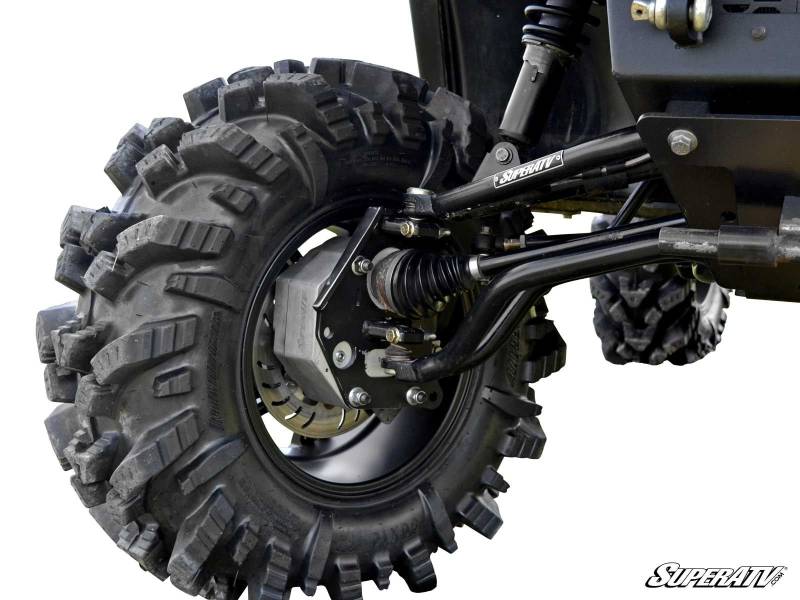

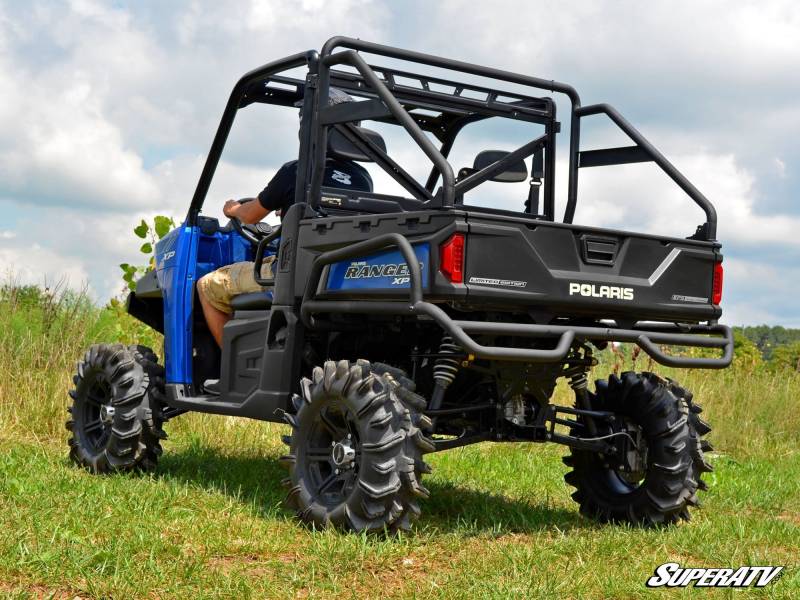

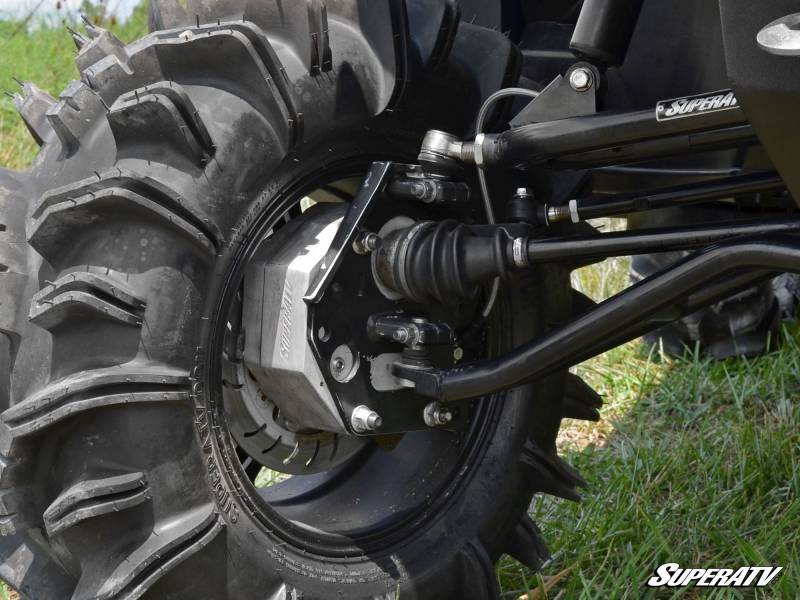

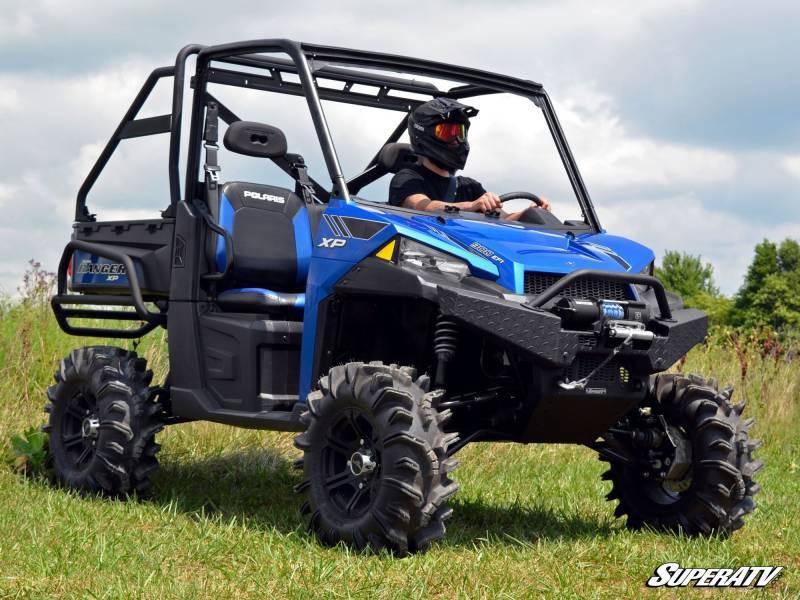

Polaris Ranger XP 1000 6" Portal Gear Lift

The Portal Advantage
Put a 6" Portal Gear Lift from SuperATV on your Polaris Ranger XP 1000 and you'll never ride the same way again. With Portal Gear Lifts you get a massive 6" lift and a 45% gear reduction in one package. The gear reduction saves your axles and driveline, and it gives you more torque. Turn huge tires easily! All that and 6" of extra clearance. Sounds great doesn't it? That's what Gear Driven Performance by SuperATV is all about.

45% Gear Reduction
With a 45 percent gear reduction (1.82:1 ratio), you can do anything you want. That means freedom to run huge tires that still feel like stock. With Gear Driven Performance, you're getting more than a gear ratio, you get freedom. Push your UTV harder than you ever have before without breaking an axle or a prop shaft. Ride harder and higher. Gear Driven Performance means freedom and fun.

Performance

  • 45% gear reduction
  • Designed for all terrains and riding styles
  • GDP maintains performance-ready axle angles

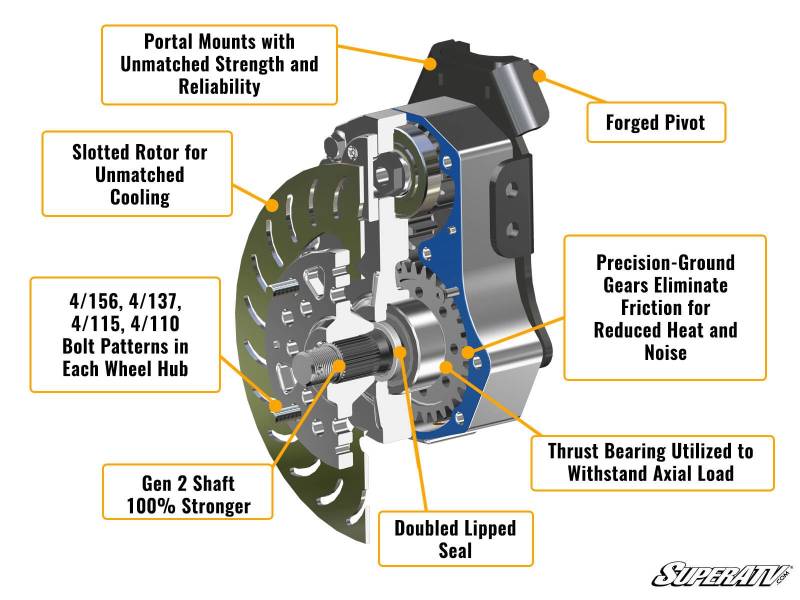

Impenetrable Bearings and Seals

  • First in the industry thrust bearing that is specifically designed to take axial load, unlike the standard bearing that is only sufficient for radial loads
  • Automotive grade bearings
  • Press fit, precision ground gears and shafts to eliminate unwanted slop


Precision-Ground Gears: drive gear, idler gear and driven gear

  • Precision-ground chromium titanium alloy gears
  • Reduced friction build-up
  • Quiet gears at all speeds
  • Allows you to run at higher speeds


Gen 2 Portal Drive Shaft

  • Designed to be unbreakable
  • Made of 4340 hardened steel
  • 1.5 in diameter (40 mm)
  • M30 threads


Steering Arm

  • Heavy duty structural member
  • 10.9 grade hardware
  • Modular design for improved functionality

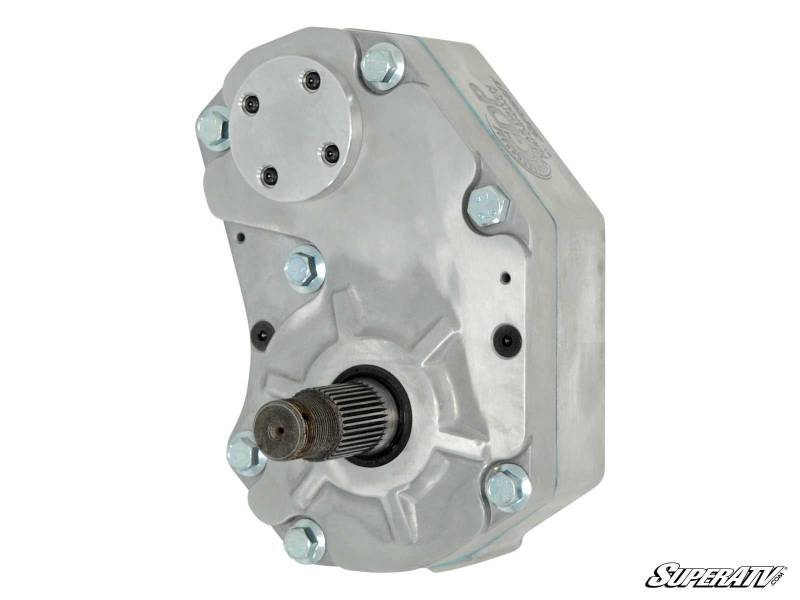

Gen 2 Aluminum Housing

  • CNC machined solid aluminum housing for superior strength
  • Polished aluminum for long lasting, stylish finish


Mounting Plates and Pivot Blocks

  • CNC formed, fully gusseted 5/16" mounting plates
  • Forged pivot blocks
  • Carbon steel caliper mounting plates


Gen 2 Slotted Rotors for Unmatched Cooling

  • Each wheel hub includes 4 bolt patterns 4/156, 4/137, 4/115, 4/110
  • Ability to utilize different wheels on same hub
  • Extra thick hub designed to handle any torque

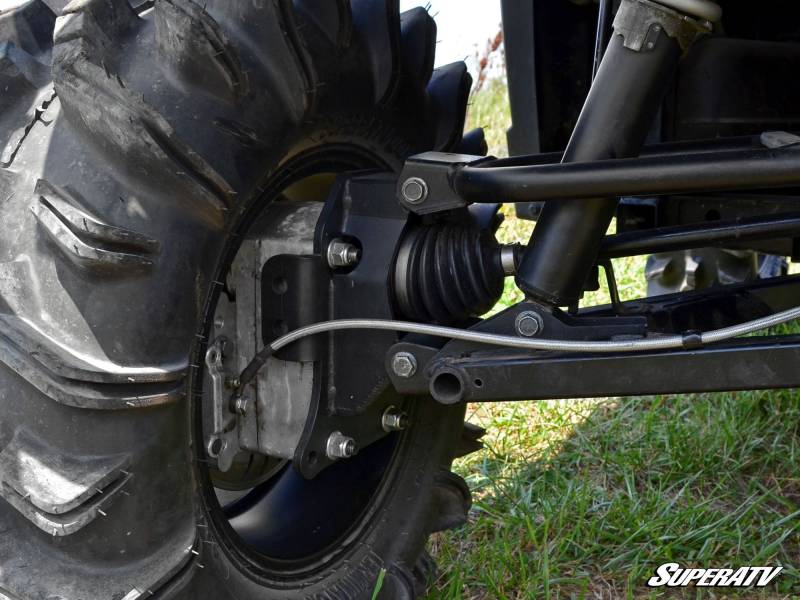

  • Stainless steel, braided brake lines included in each kit


Wheel Requirements

  • Requires an 18" or larger wheel
  • 18" wheels can not exceed 4-1/2" backspacing
  • 20" and larger wheels can not exceed 5" backspacing

FITMENT

  • Polaris Ranger XP 1000 : 2017+
  • Polaris Ranger XP 1000 Crew : 2017+

Gear Driven Performance by SuperATV|Portal Gear Lifts



Recessed Nut Kit required for most aftermarket axles. Not required when using Stock, Rhino Brand and ADR axles.

Suspension Setup Max Tire Size
Stock w/ 6" Portals 30"
1.5" Forward Front A Arms w/ 6" Portals 33"
3" Lift Kit w/ 6" Portals 31"
1.5" Forward Front A Arms and 3" Lift Kit w/ 6" Portals 34"
6" Lift Kit w/ 6" Portals 38"
Measurements taken with suspension fully compressed and at max turn. Although these are not fully representative of normal riding conditions, stated tire sizes will not rub. With minimal rubbing or trimming, larger sizes can be used.
