SUPERATV Can-Am Maverick Trail 4" Portal Gear Lift

Can-Am Maverick Trail 4" Portal Gear Lift

Why We Make Them?
Get all the torque you can handle and all the torque your Can-Am Maverick Trail with a 4” Gen 2 Gear Driven Performance Portal Gear Lift by SuperATV. With a Maverick you need all the torque you can get to upgrade to those larger tires the 4” of lift make room for. When you want to go big, you want GDP from SuperATV.

Why GDP?
GDP Portal Gear lifts are the ultimate in lift technology and the pinnacle of precision. GDP relocates your axle centerline 4” vertically and retains your suspension and steering geometry. That means it’s easy on your axles, differential, and drive train components. Inside every hub is a 1.4:1 gear reduction (approximately 30%) that gives you a huge boost of torque right at the ground. All that torque means you can crawl over bigger obstacles and roll on massive tires, but your machine will feel like stock. With GDP, your Maverick Trail will have performance and so much more.

Performance

• Pair with SuperATV lift kits, a arms, and axles for extreme performance
• 30% gear reduction
• Designed for all terrains and riding styles

Axles

• You will not chop your axles. GDP is the only kit on the market compatible with aftermarket and OEM axles with no modifications
• GDP maintains performance-ready axle angles

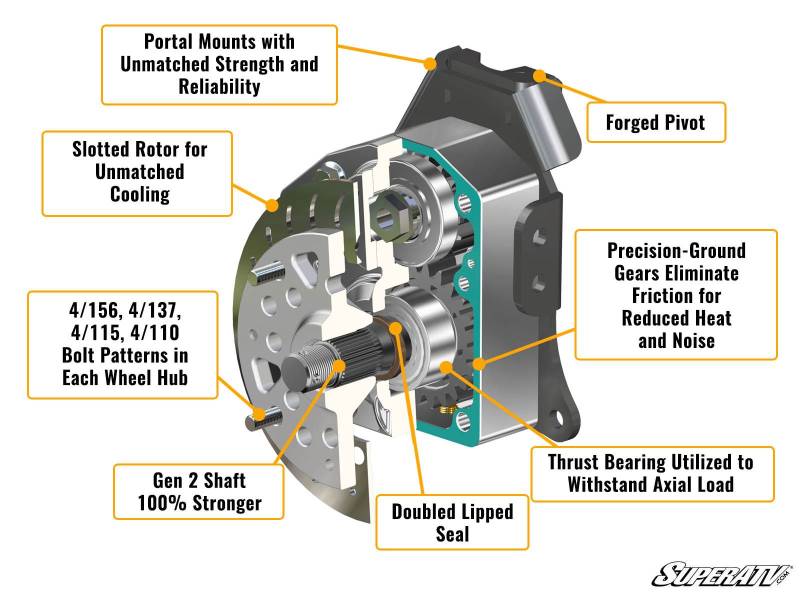

Impenetrable Bearings and Seals

• First in the industry thrust bearing that is specifically designed to take axial load, unlike the standard bearing that is only sufficient for radial loads
• Automotive grade bearings
• Press fit, precision ground gears and shafts to eliminate unwanted slop

Precision-Ground Gears: drive gear, idler gear and driven gear

• Precision-ground chromium titanium alloy gears for industry best performance
• Eliminates friction for reduced heat, noise and allows you to run at higher speeds
• Reduced friction build-up
• Quiet gears at all speeds
• Performs at machine's fullest capacity

Gen 2 Portal Drive Shaft

• Designed to be unbreakable
• Made of 4340 hardened steel
• 40 mm diameter
• M30 threads

Steering Arm

• Heavy duty structural member
• 10.9 grade hardware
• Modular design for improved functionality

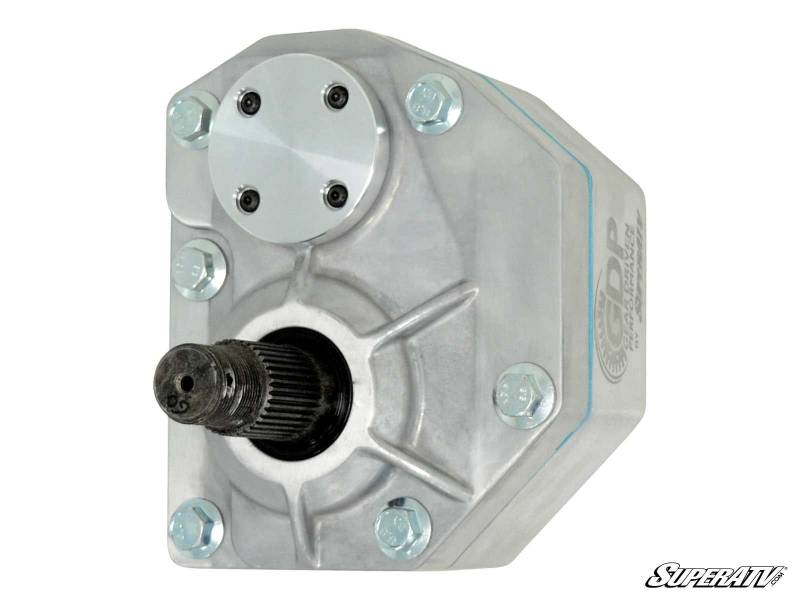

Gen 2 Aluminum Housing

• CNC machined solid aluminum housing for superior strength
• Polished aluminum for long lasting, stylish finish

How About Adjustability? Pair with our adjustable a arms

• GDP understands the need for adjustability allowing you to custom tailor your machine to match your riding needs
• Eliminates unwanted, premature tire wear caused from misalignment
• Camber adjustability on all SuperATV a arms

Mounting Plates and Pivot Blocks

• CNC formed, fully gusseted 5/16" mounting plates
• Forged pivot blocks
• Carbon steel caliper mounting plates

Gen 2 Slotted Rotors for Unmatched Cooling

• Each wheel hub includes 4 bolt patterns 4/156, 4/137, 4/115, 4/110
• Ability to utilize different wheels on same hub
• Extra thick hub designed to handle any torque
• Stainless steel, braided brake lines included in each kit

Wheel Requirements

• Requires a 14" or larger wheel
• Wheels can not exceed 4" backspacing
• Not compatible with dual beadlock wheels
