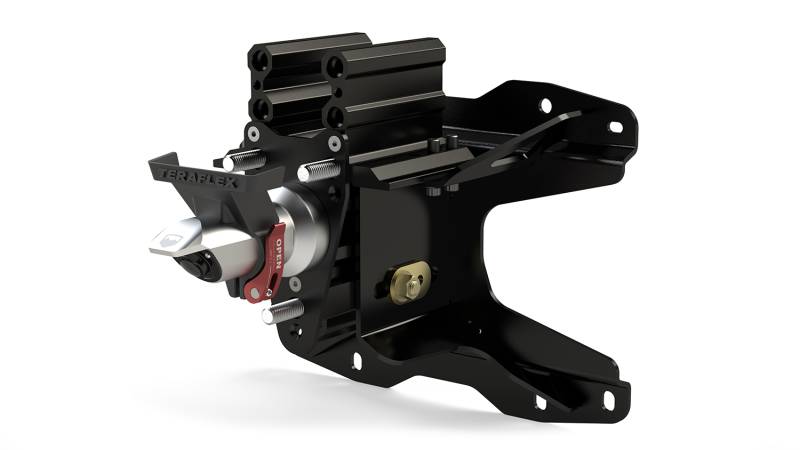

Teraflex JL: Alpha HD Adjustable Spare Tire Mount Kit w/ Brake Light & Camera Mounts–5x5” - 4838910

Designed to accommodate up to a 40” tire, the TeraFlex JL: Alpha HD Hinged Spare Tire Carrier (NOT INCLUDED) and Alpha HD Adjustable Spare Tire Mount will secure your full-size spare tire over the most extreme trails and rugged terrain. Mounts to the TeraFlex JL: Alpha HD Hinged Spare Tire Carrier or the factory tailgate.

Although the Alpha HD Adjustable Spare Tire Mount can be used alone, it has been designed to be installed in conjunction with the Alpha HD Hinged Spare Tire Carrier. The Tire Mount can support the additional weight of a full-size spare tire by securely mounting the tire to the Tire Carrier and tailgate. Complete adjustability includes vertical as well as fore and aft adjustments.

The Alpha HD Adjustable Spare Tire Mount Kit includes a quick-release 3rd Brake Light Mount and billet aluminum Rearview Camera Mount.

The heavily gusseted Tire Mount is formed and welded from CNC laser cut steel for superior strength, while the adjustable Tire Carrier is constructed from strong and lightweight 6061-T6 extruded aluminum.

FEATURES/BENEFITS:

• Max Tire: 40” (w/ Alpha HD Hinged Spare Tire Carrier)
• Max Tire: 35”/ 100 lbs. (w/out tailgate reinforcement)
• Wheel Pattern: 5x5”
• Innovative and unique design w/ easy adjustability
• Maintains single-handed entry to the rear cargo area
• Easy fore/aft and height adjustments
• Relocates 3rd brake light from behind tailgate to behind spare tire
• Includes new quick-release 3rd Brake Light Mount
• Includes new hard-anodized billet aluminum Rearview Camera Mount
• Spare Tire Mount is formed and welded from CNC laser cut steel for superior strength
• Adjuster made from strong and lightweight 6061-T6 extruded aluminum
• Works w/ OEM and most aftermarket bumpers
• Simple installation using common hand tools
• No drilling required — uses factory mounting locations
• Dedicated CAD-designed tooling and CAE design
• FEA validation, ASTM, and SAE testing procedures
• 1,000-hour extreme salt spray testing
• OEM Quality UV resistant powder coat finish w/ 3,000-hour accelerated weather testing

INCLUDES

• Alpha HD Adjustable Spare Tire Mount – 5x5”
• Quick-release 3rd Brake Light Mount
• Billet aluminum Rearview Camera Mount
• All necessary hardware

VEHICLE FITMENT INFO

Fits:

• JL Wrangler (2-door)
• JL Wrangler Unlimited (4-door)

Specs:

• Max Tire: 40” (when used w/ Alpha HD Hinged Spare Tire Carrier)
• Max Tire: 35” (when used w/out tailgate reinforcement)
• Wheel Pattern: 5x5”

PRODUCT NOTES

• The factory tailgate can only support the weight of up to a 35” spare tire and wheel combo w/out reinforcement. The Alpha HD Hinged Spare Tire Carrier (# 4838900 – NOT INCLUDED) or other tailgate reinforcement and Alpha HD Adjustable Spare Tire Mount (# 4838910 – INCLUDED) are required to support up to a 40” spare tire and wheel combo.
• A spare tire larger than 40” will interfere with the stock rear bumper.
• Tire size fitment and aftermarket bumper clearance varies by manufacturers; please confirm fitment before purchase.

RELATED ITEMS

• Alpha HD Hinged Spare Tire Carrier Kit (# 4838900)
• Alpha HD Adjustable Spare Tire Mount Kit w/ Brake Light & Camera Mounts – 5x5” (# 4838910)
• Alpha HD Hinged Spare Tire Carrier & Adjustable Spare Tire Mount Kit – 5x5” (# 4838920)
• Alpha HD 8-Lug Spare Tire Carrier Conversion Kit – 8x6.5” (# 4838930)
• Alpha HD Adjustable Spare Tire Mount Kit & HD 8-Lug Conversion Kit – 8x6.5” (# 4838940)
• Alpha HD Spare Tire Delete Plate Kit (# 4838500)

INSTALL TIME

1 Hour
