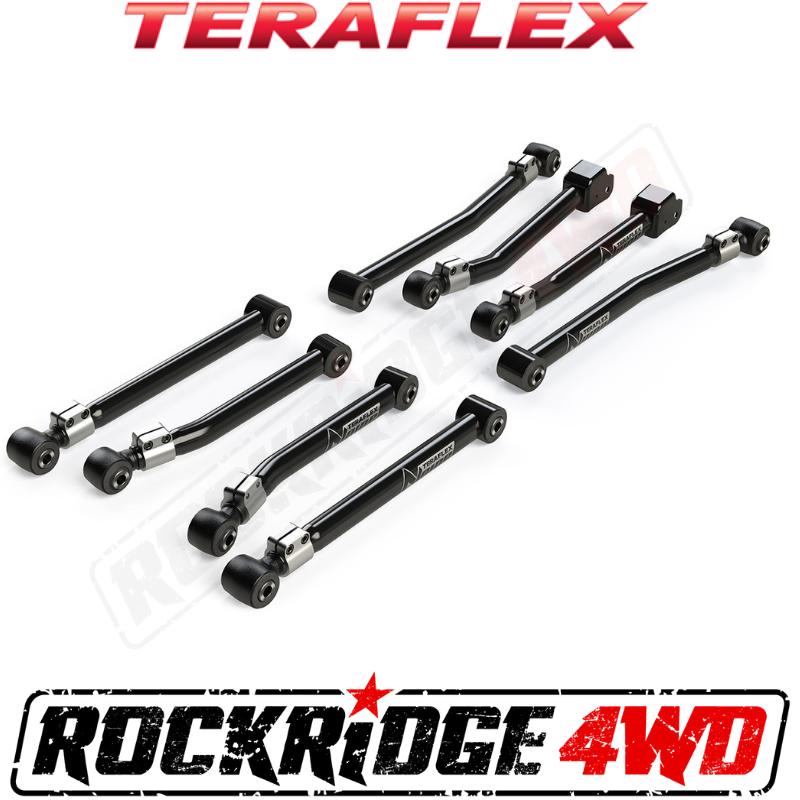

Teraflex JL/JLU Alpine Flexarm Kit - 8-Arm Adjustable Control Arms (0-4.5” Lift) - 1416610

TeraFlex JL/JLU Alpine Flexarm adjustable control arms provide maximum adjustability, dependability, and performance while retaining factory control arm mounting locations on JL/JLU Wrangler models with 0-4.5” lifts. Features factory-style bushings. Can be added to any existing suspension lift.

Fits:

• JL Wrangler (2-door)
• JLU Wrangler Unlimited (4-door)

• 0-4.5” Lift

Includes:

Alpine Flexarm - Adjustable Control Arms - 8:
• Front Upper (# 1416520) - pair
• Front Lower (# 1416500) - pair
• Rear Upper (# 1416560) - pair
• Rear Lower (# 1415540) - pair

Features & Benefits:

• Durable 42mm x 4mm wall DOM (Drawn Over Mandrel) tube provides maximum strength
• Adjustable Alpine Flexarms optimize pinion and caster angles and tune anti-squat geometry for proper suspension alignment
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full-range of movement will not restrict articulation or flex off-road
• High-quality factory style bushings that provide excellent noise, vibration, and harshness (NVH) damping and ride quality characteristics w/ zero maintenance
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating provides superior durability and corrosion resistance on tube and forged rod end housing
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• TeraFlex Lifetime Warranty against defects

Flexarm Specs:

• Tube Diameter & Wall = 42mm x 4mm

JL/JLU Alpine Flexarm Kit: Front Upper Adjustable - (# 1416520):

• Factory Length = 20.185”
• Min. Length = 20”
• Max. Length = 21”
• Both Ends = 14mm Bolt

JL/JLU: Alpine Flexarm Kit - Front Lower Adjustable - (# 1416500):

• Factory Length: 24”
• Min. Length: 24”
• Max. Length: 25.25”
• Both Ends: 16mm Bolt

JL/JLU: Alpine Flexarm Kit - Rear Upper Adjustable - (# 1416560):

• Factory Length = 17.425”
• Min. Length = 17-3/8”
• Max. Length = 18-1/2”
• Both Ends = 14mm Bolt

JL/JLU - JK/JKU: Alpine Flexarm Kit - Rear Lower Adjustable - (# 1415540)

• Factory Length = 19-3/4”
• Min. Length = 19-13/16”
• Max. Length = 21-1/16”
• Both Ends = 14mm Bolt

Install Time: 3.5 Hours
