Vision X 3" Flush Mount Kit With (2) Mixed 10° and 20° 4 LED Mini Dura Work Light

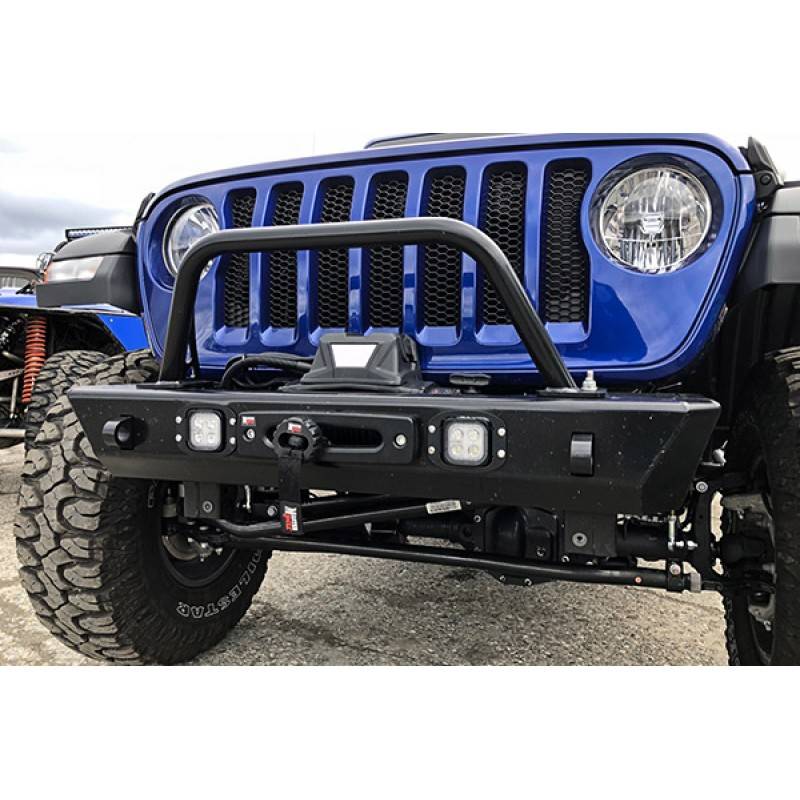

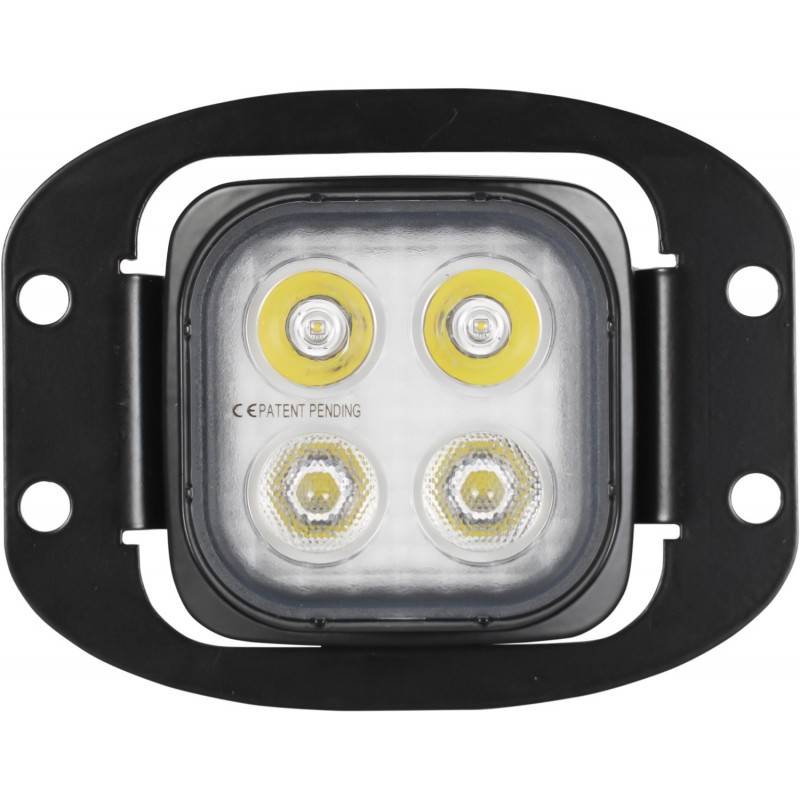

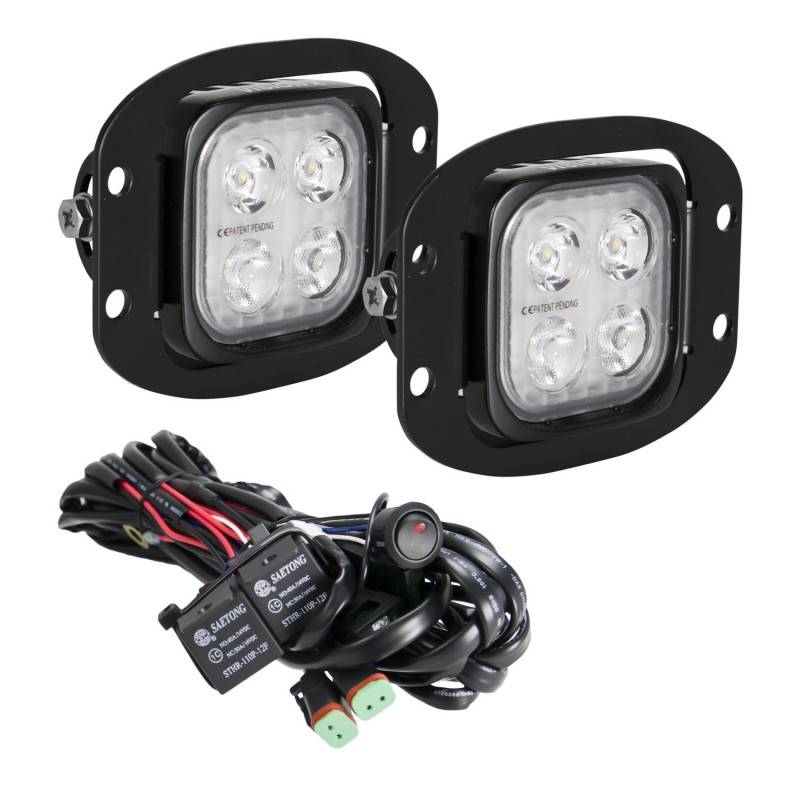

The Duralux Mini Flush Kit is our powerful answer to a small fog/reverse light. The sleek and compact 2.75” housing coupled with four 5W Cree LEDs that pushes 2,000+ lumens of light (each), making it one of the brightest lights in its class. Our newly design flush mounting brackets fit perfectly into any aftermarket bumper that is fitted with 3” Square light pocket. Don’t have pre-cut pockets? No problem, we provide a template for easy cutting and installation. The Duralux Mini Flush Kit comes standard with flush brackets, mounting hardware, wiring harness with a lighted rocker switch,  and a limited lifetime warranty. Also sold individually without the wiring harness.



LIGHT OUTPUT
BEAM PATTERN	Mixed 10 and 25 Degrees
RAW LUMENS	2,115 lm (each)
EFFECTIVE LUMENS	1,480 lm (each)
LED COLOR	White
DIMENSIONS
LENGTH	5
WIDTH	2
HEIGHT	5
WEIGHT	1.5
FEATURES
PRIME DRIVE (DIMMABLE)
COVERS AVAILABLE
HOUSING MATERIAL	6061 Aluminum
LENS MATERIAL	Polycarbonate
IP RATING	IP-68/69K
VIBRATION RATING
OPERATION TEMPERATURE	-40 Celsius ~ +80 Celsius
LIFE SPAN
GORE® MOISTURE PROTECTION
REVERSE POLARITY PROTECTION	?
DOT APPROVED
EMARK APPROVED
POWER USAGE
WATTAGE	20W (each)
AMP DRAW	1.67A (each)
VOLTAGE	9-32V DC
ADDITIONAL
BRACKET TYPE	Vehicle Specific
CONNECTOR TYPE	Deutch
INCLUDES HARNESS
