ROCK HARD 4X4™ ALUMINUM COMPLETE BELLYPAN SKID PLATE SYSTEM WITH DUAL CROSSMEMBERS FOR JEEP WRANGLER JL2 DR 3.6L 2018

JL Skid Plates
The Jeep Wrangler JL brings many upgrades over the best-selling 2007 - 2018 JK, but also has it's own unique undercarriage short-comings. It lacks any skid plates! A selling feature of the JL is also a hint at a major flaw: the suspension capabilities and increase fender flare clearance require less lift to increase tire size. This means wheelers can install larger tires and tackle tougher trails without having to install a traditional suspension lift kit. Less lift means more dragging your undercarriage and drivetrain all over the rocks.

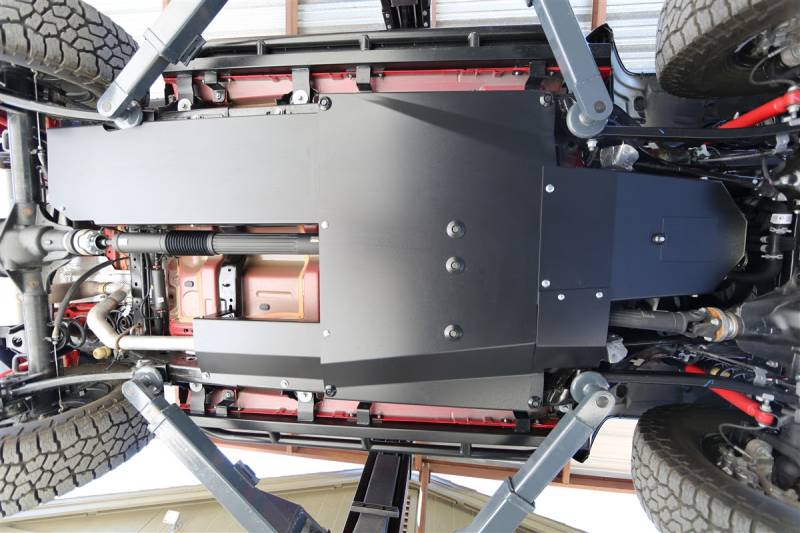

Belly-Pan Design
To help you make it to the end of the trail, we're offering our most comprehensive and largest skid plate system we've ever designed. This is a true "belly pan" system that protects all your vital drivetrain components. The new JL 8-speed transmission drives fantastic, but is very long and pushes your drivetrain further back underneath your rig. To protect your transmission and transfer case, we had to increase the size of our skid plates. This is where our "belly pan" design gets to work. From frame rail to frame rail and oil pan to exhaust resonator, our design is comprehensive and complete.

Dual Crossmembers
Jeep had a brilliant idea to make the JL frame rails out of a new harder material, but trail testing has exposed a major flaw: thinner walls but stronger material twists! Early in 2018's Easter Jeep Safari exposed major flexing and twisting in rigs coming back off their day's runs. To prevent this plus strengthen our larger skid plates, we include 2 new 1" by 2" thick steel crossmembers. These CNC machined crossmembers extend from driver to passenger side frame rails and not only give our skid plates the foundation they need to protect your drivetrain, but also take twist and flex out of your frame.

Complete Skid Plate System
Oil Pan / Transmission Skid Plate
Transfer Case Skid Plate
Resonator Skid Plate

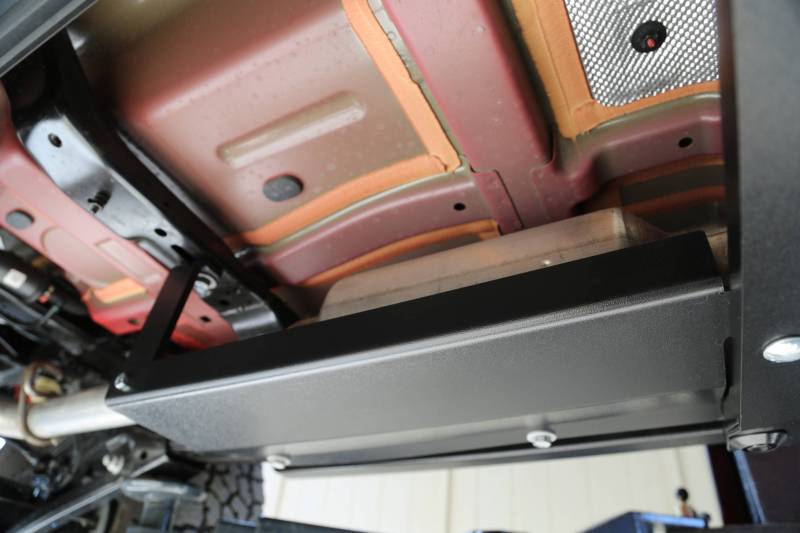

Fuel Tank Skid Plate
Dual 1" x 2" Steel Crossmembers
Tapered Washers
Hardware

Features
1/4" thick plate aluminum
100% bolt-on design
Dual 1" thick x 2" wide steel crossmembers
Powder coat included
All hardware included
Exclusive tapered bolt head protecting washers
Exclusive oil change access door

Specifications
Aluminum Skid System Weight: 180 lbs.

Components
Laser cut oil change access door.

Dual 1" x 2" thick steel crossmembers

Laser Cut and CNC bent motor mount braces

Laser cut and CNC bent resonator skid plate braces
