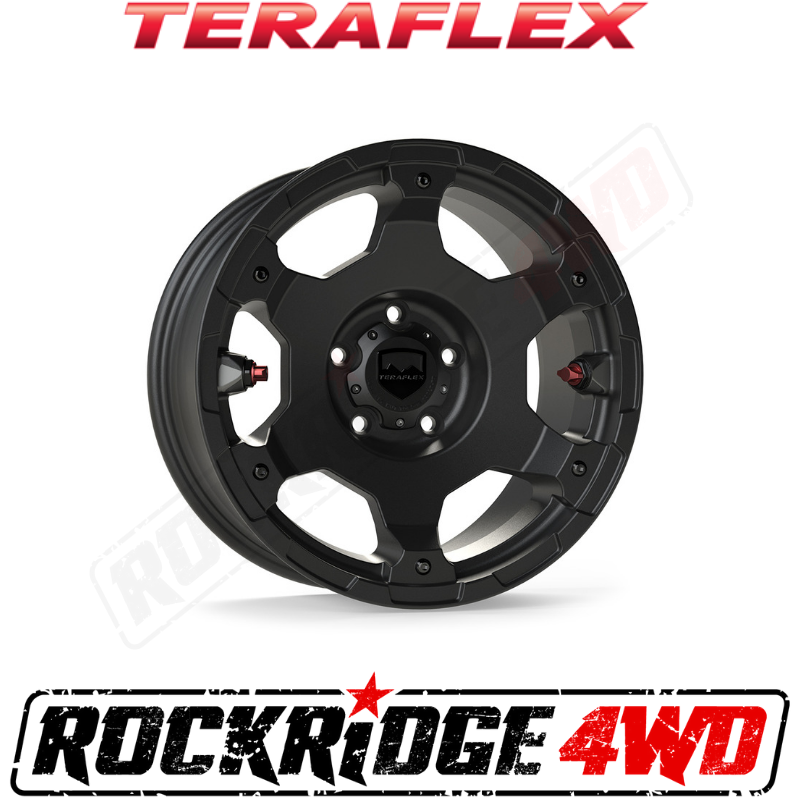

TeraFlex JL/JLU–JK/JKU: Nomad Off-Road Wheel - Deluxe - 5x5” - Metallic Black - Each

Round out your build with a set of these tough and durable TeraFlex JL/JLU–JK/JKU: Nomad Off-Road Wheels. These cast alloy wheels feature a reinterpretation of the classic six-hole design. Engineered with a “form follows function” philosophy resulting in a technical look.

With its modular plug system, the TeraFlex Nomad Wheel is the only wheel compatible with our all-new proprietary Air Deflator that allows you to quickly air down your tires to a preset pressure. An adjustment screw allows you to set the preset pressure at any psi as low as 10 psi.

Fits:

• JL Wrangler (2-door)
• JLU Wrangler Unlimited (4-door)
• JK Wrangler (2-door)
• JKU Wrangler Unlimited (4-door)

Specs:

• Diameter x Width: 17” x 8.5”
• Bolt Pattern: 5x5”
• Offset: 0”
• Back Spacing: 4.75”
• JL/JLU: hub centric
• JK/JKU: lug centric
• Finish: Metallic Black

Includes:

• Nomad Off-Road Wheel - each
• Center Cap (# 1056004)
• Fully encapsulated Schrader Valve Stem Housing & Cap (# 1056001)
• Air Deflator (# 1056000)

Features & Benefits:

Nomad Off-Road Wheel:

• Cast from heat treated A356-T6 aluminum
• Strong enough to handle 40” tires
• Locking bead seat knurling allows for safely running lower air pressure
• Lack of “water troughs” prevents water pooling
• Dual-stage clear powder coat w/ UV inhibiters
• Easy to clean finish
• Modular Plug System accepts Schrader valve, wheel plug, or Air Deflator
• Symmetrical valve holes for balance
• Fully encapsulated Schrader valve to keep out contaminants

Air Deflator:

• Air Deflator allows you to quickly air down your tires to a preset pressure
• Adjustment screw sets spring preload
• Allows pressure to be preset to as low as 10 psi
• Releases up to 40x more air than Schrader valve for quick air down
• O-ring seal ensures air blows contaminates away from air release orifices
• Viton O-ring can be changed w/out disassembly
• O-ring seals pressures up to 3,500 psi
• Black and red anodized finish

Note(s):

• NOT recommended for use w/ balance beads or fix-a-flat tire sealants.
• Schrader Valve Housing & Cap (#1056001) NOT compatible w/ 2007-2010 OEM bolt-on aluminum TPMS sensor. Woks w/ 2011-2018 OEM rubber TPMS sensor or aftermarket equivalent.

Accessories & Replacement Parts:

• Nomad Wheel Black Rash Rings (# 1056009)
• Nomad Wheel Center Cap (# 1056004)
• Nomad Wheel Air Deflator (# 1056000)
• Nomad Wheel Valve Stem Housing & Cap (# 1056001)
• Nomad Wheel Plug (# 1056002)

Nomad Wheel Rash Ring (#1056009)

Available Configurations:

• Deluxe - 5x5” - Metallic Black - Each (# 1056059)
• Deluxe - 5x5” - Titanium Gray - Each (# 1056159)
• Base - 5x5” - Metallic Black - Each (# 1056050)
• Base - 5x5” - Titanium Gray - Each (# 1056150)
