BDS Suspension 3.5" UCA Lift Systems for the 2019+ Ford Rangers - 1545H

BDS1545H
Pricing: $1,305.11

Customize Your Item

- Rear Shock Selection -
 * required
- Shock Boots -
 * required
- Intrusion Beams -
 * required
Qty:
Free Shipping

Description

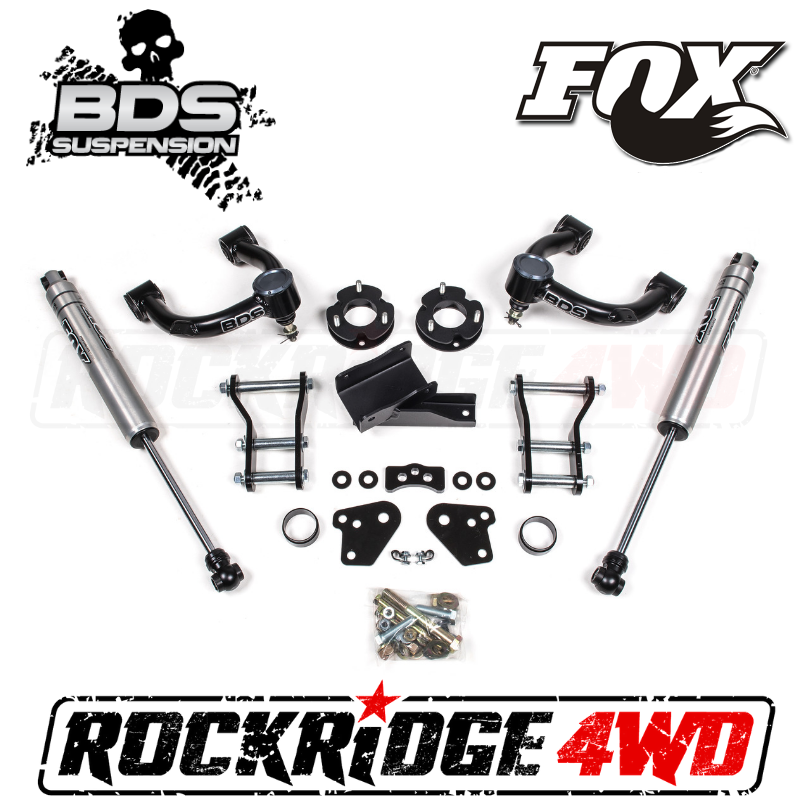

BDS Suspension adds new 3.5" UCA lift systems designed to take advantage of the stout factory front suspension design on the 2019 Ford Ranger.



This new system builds off the factory mounting points and offers improved strength, ground clearance and suspension travel. The new ride height is the result of a combination top mounted steel fabricated strut spacer along with preload spacer for a total 3.5" of front lift. The reason for the combination is to achieve the correct ride height without increasing the overall extended length of the strut assembly too the point of causing premature wear of the CV axles and other front end components. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Built from thick wall 1.5" DOM tubing, these UCAs utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable Moog ball joints and Clevite rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims. Finishing out the front of these 3.5" systems is a small differential relocation to help further improve CV axle operating angle.



In the rear of these lift systems the factory leaf springs are retained and 1" lift comes from a heavy duty replacement shackle. These shackles are built from high strength 3/8" steel and have the benefit of leveling the stance, correcting rear pinion angle and allowing for increased rear suspension travel. Also supplied for the rear of these 3.5" lift kits are your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks for improved damper performance. All kits come finished in a durable black e-coat finish and sent with all hardware packs to complete the install along with step-by-step installation instructions. All BDS kits include Factory Protection Plus for the ultimate extended warranty to include BDS's No Fine Print Warranty, ESC System compatibility and a 5year-60mile drivetrain warranty to match the dealer. Improve the look and capability of your 2019 Ford Ranger with these new 3.5" UCA lift systems from BDS Suspension.

    • Tire & Wheel Combinations
    • 285/70r17 w/17" and back spacing
    • 285/16r18 w/18" and back spacing
    • 275/65r18 w/18x9 and 6.125" back spacing

*Trimming may be required*

  • Est. Installation: 4 hours
  • Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

  • 2019 Ford Ranger 4WD
  • 2020 Ford Ranger 4WD

Important Kit Notes

  • - Aftermarket wheels must have a minimum of 93.1mm center hub bore.
  • - Tires larger than 285/70r17 or 285/65r18 cannot be installed on factory wheels due to steering knuckle clearance.
  • - Strut disassembly required, high quality wall mounted strut compressor and skilled technician recommended

BDS Suspension Lift Kit Warranty

No Fine Print Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
