BDS 2.5" Lift System | 2019+ Ford Ranger - 1546H

BDS1546H
Pricing: $365.39

Customize Your Item

- Shock Selection -
 * required
- Shock Boots -
 * required
- Ford Ranger Upper Control Arm -
 * required
- 1" Rear Shackle Kit -
 * required
- Intrusion Beams -
 * required
Qty:
Free Shipping

Description

BDS Suspension adds new 2.5" lift systems to their ever-expanding lineup for the 2019 Ford Ranger.

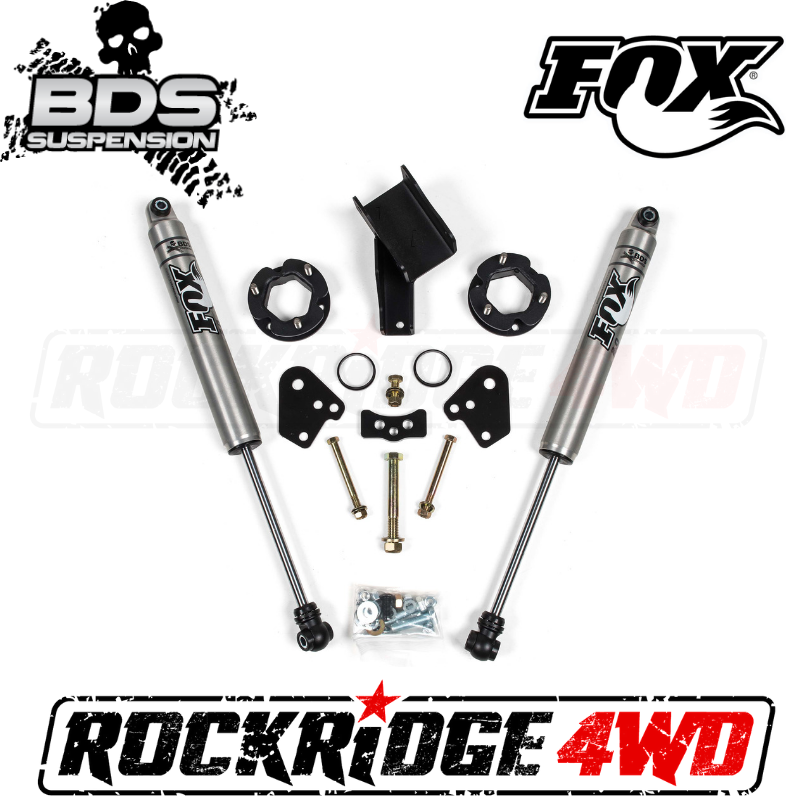

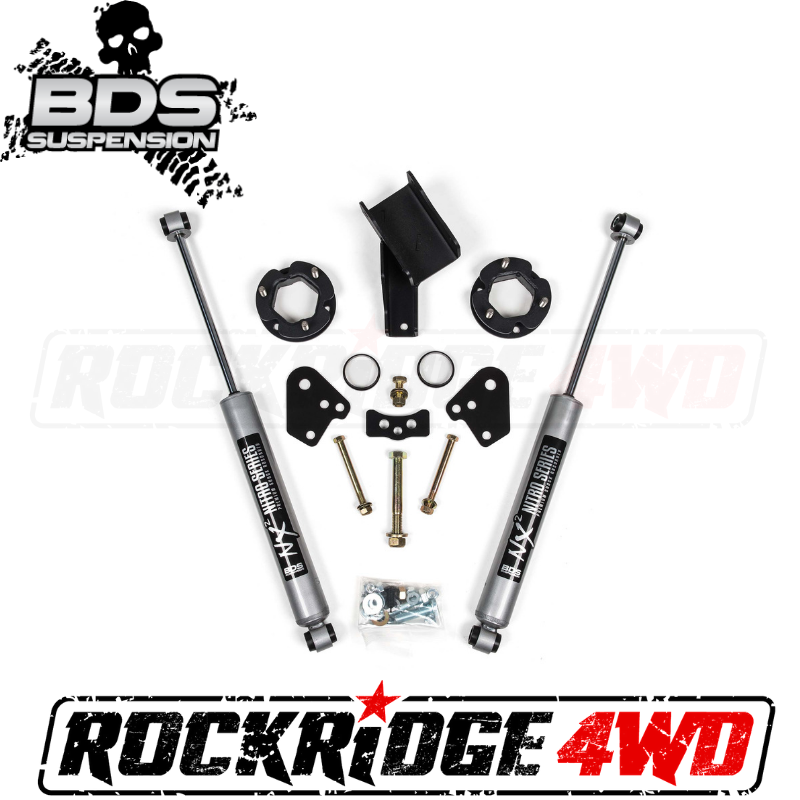

This new system builds off the factory suspension mounting points and offers improved strength, ground clearance and suspension travel. All components have been engineered in unison to ensure suspension and drivetrain geometry is maintained, rather than other " leveling kits" on the market that just throw in a top spacer which maxes out the angles at droop. The new ride height is the result of a combination of a specially designed top mounted steel fabricated strut spacer in conjunction with a preload spacer for a total 2.5" of front lift. The reason for the combination is to achieve the correct ride height without increasing the overall extended length of the strut assembly too the point of causing premature wear of the CV axle boots and other front end components. To further ensure proper drivetrain geometry the front differential is repositioned using relocation brackets. These brackets correct CV axle angle while allowing the use of the factory front skid plates. In the rear the factory shocks are replaced with your choice of precision tuned NX2 gas or FOX 2.0 performance IFP gas shocks for improved damping.



Optional accessories include the BDS performance upper control arm (UCA) kit and 1" HD rear shackle kit. All kits come finished in a durable black e-coat finish and sent with all hardware packs to complete the install along with step-by-step installation instructions. All BDS kits include Factory Protection Plus for the ultimate extended warranty to include BDS's No Fine Print Warranty, ESC System compatibility and a 5year-60mile drivetrain warranty to match the dealer. Improve the look and capability of your 2019 Ford Ranger with these new 2.5" lift systems from BDS Suspension.

Important Kit Notes

  • - Aftermarket wheels must have a minimum of 93.1mm center hub bore.
  • - Tires wider than 285/70r17 or 285/65r18 cannot be installed on factory wheels due to steering knuckle clearance.
  • - Strut disassembly required, high quality wall mounted strut compressor and skilled technician recommended
    • Tire & Wheel Combinations
    • 285/70r17 w/17" and stock back spacing
    • 285/65r18 w/18" and stock back spacing

*Trimming may be required*

  • Est. Installation: 4 hours
  • Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

  • 2019 Ford Ranger 4WD
  • 2020 Ford Ranger 4WD

BDS Suspension Lift Kit Warranty

No Fine Print Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
