Zone Offroad 2" Leveling Kit for 2020 Chevy/GMC HD 2500/3500 HD - C1230

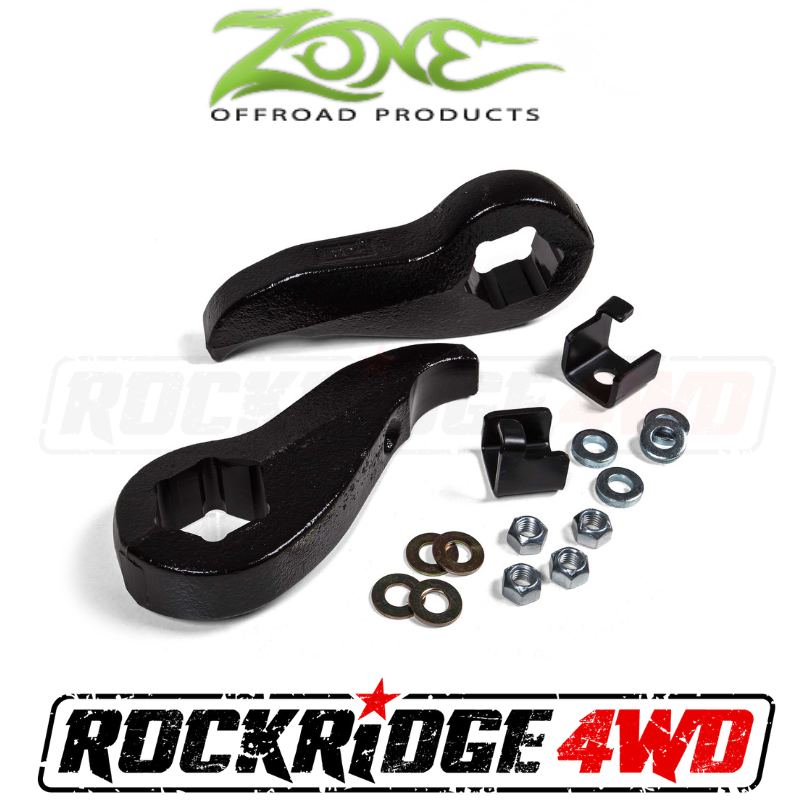

Zone Offroad is now offering the first of several new lift and leveling kit options for the redesigned 2020 Chevy Silverado 2500HD/3500HD and GMC Sierra/Denali 2500HD/3500HD trucks with new 2" leveling kits. While the suspension on the new 2020 trucks has some similarities to the previous models, there are several minor changes that required a new leveling kit to allow for optimal performance. At the heart of this 2" leveling kit are a pair of nodular cast iron torsion bar keys for strength and feature indexed torsion bar slots designed to properly lift/level the stance. Also supplied are a pair of torsion bar bolt keepers to prevent the bolt from slipping off the key during extreme off-road use. This kit allows the use of factory shocks with the supplied upper shocks extensions and is designed to offer more suspension travel without worry of overextending at full droop. This kit is easy to install using a torsion bar tool and can be completed in 1-2 hours. The final result is a leveled stance, comfortable ride and handling and clearance for up to 35" tires.

Featured Technology & Benefits

• Nodular cast iron torsion bar keys featured indexed slot to lift/level stance
• Shock extensions to allow use of factory shocks while properly limiting droop travel
• Torsion bar bolt keepers ensure bolt correct engagement and positioning
• Levels stance and allows clearance for 35" tires
• Quick install with easy to follow instructions
• Includes Factory Protection Plus warranty

Important Notes!

• Requires torsion bar unloading tool Kent Moore #CH48809 or equivalent
• Will fit AT4 & Trail Boss models
• Will NOT fit models equipped with factory plow prep package
• Will NOT fit models equipped with heavy duty spring rate packages
• Will only work with trucks with factory torsion key part #84461807






ATTENTION STATE OF CALIFORNIA CONSUMERS:
Proposition 65 WARNING!







This product fits the following applications:

• 20 Chevy 2500HD Pickup Silverado HD 2WD/4WD
• 20 Chevy 3500HD Pickup Silverado HD 2WD/4WD
• 20 GMC 2500HD Pickup HD 2WD/4WD
• 20 GMC 2500HD Pickup Sierra HD 2WD/4WD
• 20 GMC 3500HD Pickup HD 2WD/4WD
• 20 GMC 3500HD Pickup Sierra HD 2WD/4WD





Quick Specs

• Front Lift Height: 2″
• Front Lift Method: Torsion Bar Keys
• Install Time Hrs: 1-2
• Difficulty Level 1-5: 3
• Wheel Size: 35x12.50
• Back Spacing: Stock
• Max Tire Size: 17″ + OE
