Zone Offroad 4" Suspension Systems 2019-2020 Chevy/GMC Silverado/Sierra 1500 Trucks - C42N

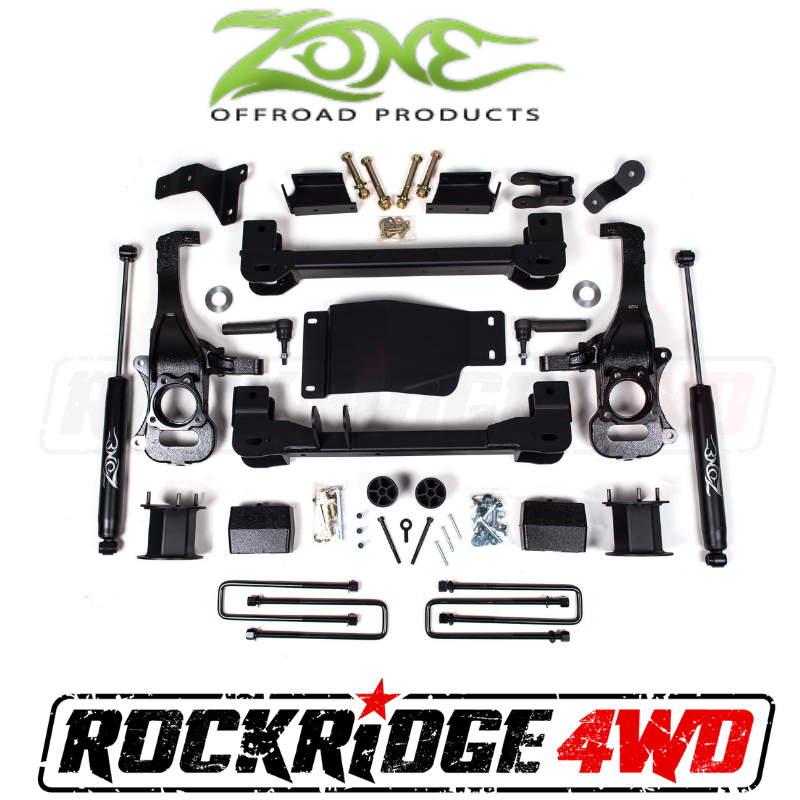

Zone Offroad is excited to announce the newest addition to its lineup parts and accessories for the 2019-2020 Chevy Silverado and GMC Sierra 1500 4WD trucks. These new 4" IFS Lift Kits have been specially designed new trucks to take advantage of the updated OE suspension design for improved offroad performance and capability while maintaining on road comfort and handling characteristics. This new 4" lift kit joins the current 2" leveling kits and 6" IFS lift kits to offer a more comprehensive suspension solution designed to allow clearance for up to 35" tires. At the heart of this new 6" lift kit Zone Offroad utilizes a pair of 1/4" thick, American steel crafted drop crossmembers to reposition the OE lower control arms. These control arms offer additional ground clearance and are paired with a differential skid plate to create a strong subframe while adding protection for critical steering and driveline components. In place of the factory steering knuckles a pair of specially designed steering knuckles are supplied to maintain proper steering geometry for ESC system compatibility. Unlike most other kits that limit the wheel configurations this knuckle design allows for 17" or larger aftermarket wheels to be installed as well as 20" OEM wheels. Also supplied are a set of heavy duty replacement tie rod ends and weld-in crossmember plate to strengthen the chassis. The front differential is secured in its new location using a multipoint differential relocation brackets to keep the CV axle operating angles at a minimum. The additional ride height comes from a set of top mounted steel fabricated strut spacers to mount onto the factory strut assemblies. These allow for quick-simple installation without the need to disassemble the factory struts and retain the OE ride quality. A pair of sway bar drop brackets are used to correct the operating angle of the factory sway bar as well as created a strong brace between the rear crossmember and the frame.

In the rear of this 4" lift kits, the OE block is replaced with a 3" lift block and longer u-bolts to lift and level the stance. Rear brake line / ABS line brackets allow the use of factory brake lines. Rounding out the rear are a pair of Nitro gas shocks for improved damping performance. All Zone Offroad kits include Factory Protection Plus for the ultimate extended warranty to include Zone Offroad's Limited Lifetime Warranty, FMVSS No.126 (ESC System) compliance certification and a 5year-100mile drivetrain warranty to match the dealer. Improve the look and capability of your 2019 Chevy/GMC 1500 truck with this new 4" lift kits from Zone Offroad.

Featured Technology & Benefits

• High strength 1/4" thick steel crossmembers with differential skid plate.
• Corrects geometry while offering more ground clearance than other kits on the market.
• Specially designed steering knuckles offer improved strength while correcting steering angles to maintain ESC compatibility.
• Maintains ride quality and handling characteristics with bolt-in ready fully welded strut spacers.
• Can be used with 17" aftermarket wheels or stock 20" wheels (doesn't require 4.5" BS wheels like other kits).
• Factory Protection Plus included.
• Allows clearance for 35" tires.
• Lifts and levels the front to back stance.

Important Notes!

• 1. Requires frame bracket modification
• 2. Will NOT fit Adaptive Ride Control (ARC) equipped models
• 3. Stock 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled.
• 4. 17" Wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod.
• 5. All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
• 6. Will NOT work with TrailBoss or AT4 models.

ATTENTION STATE OF CALIFORNIA CONSUMERS:
Proposition 65 WARNING!





This product fits the following applications:

• 19-20 Chevy 1500 Pickup Silverado 4WD
• 19-20 GMC 1500 Pickup Sierra 4WD

Quick Specs

• Front Lift Height: 4″
• Rear Lift Height: 3″
• Install Time Hrs: 8
• Difficulty Level 1-5: 4
• Wheel Size: 35x12.50
• Back Spacing: 5.5-6.25″
• Max Tire Size: 20x9/22x9
• Wheel Size: 33x12.50
• Back Spacing: 4.5-6.25″
• Max Tire Size: 20x9/22x9
• Wheel Size: 33x12.50
• Back Spacing: 4.5″
• Max Tire Size: 17x8/17x9/18x9
