BDS SUSPENSION 6" COIL-OVER LIFT | 2019 Dodge / Ram 1500 Pickup w/o Air-Ride - 1637F

BDS1637F
Not Available
Pricing: $4,322.94

Description

2019 Dodge Ram 1500 4WD

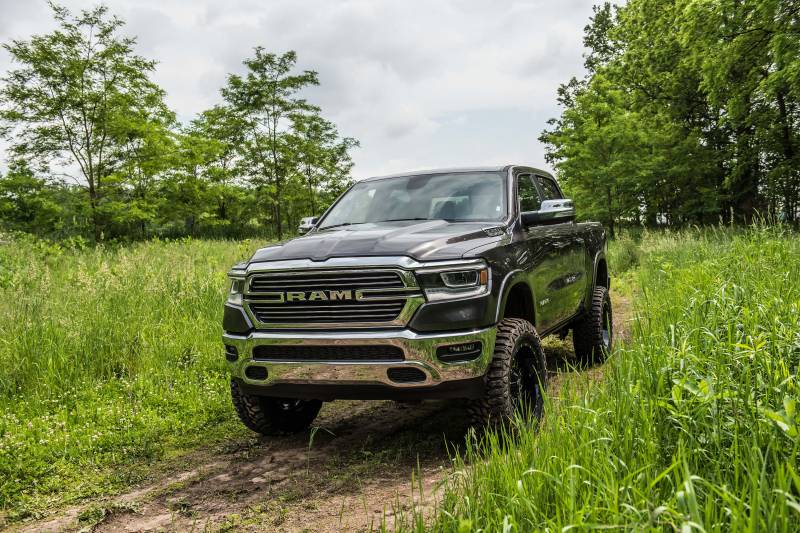

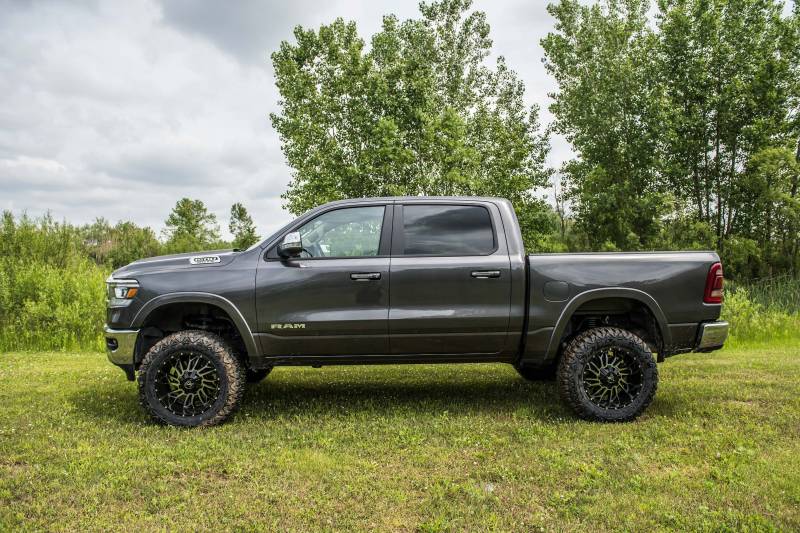

Take your 2019 RAM 1500 to the next level with the 6" performance coilover systems from BDS Suspension. Based around the tried and true high clearance technology that has made BDS the go to for RAM suspension lifts, these systems have been designed from the ground up to get more out of your new RAM. This 6" coilover system offers smooth on-road comfort while providing impressive off-road performance and capability with clearance for 35-37" tires.

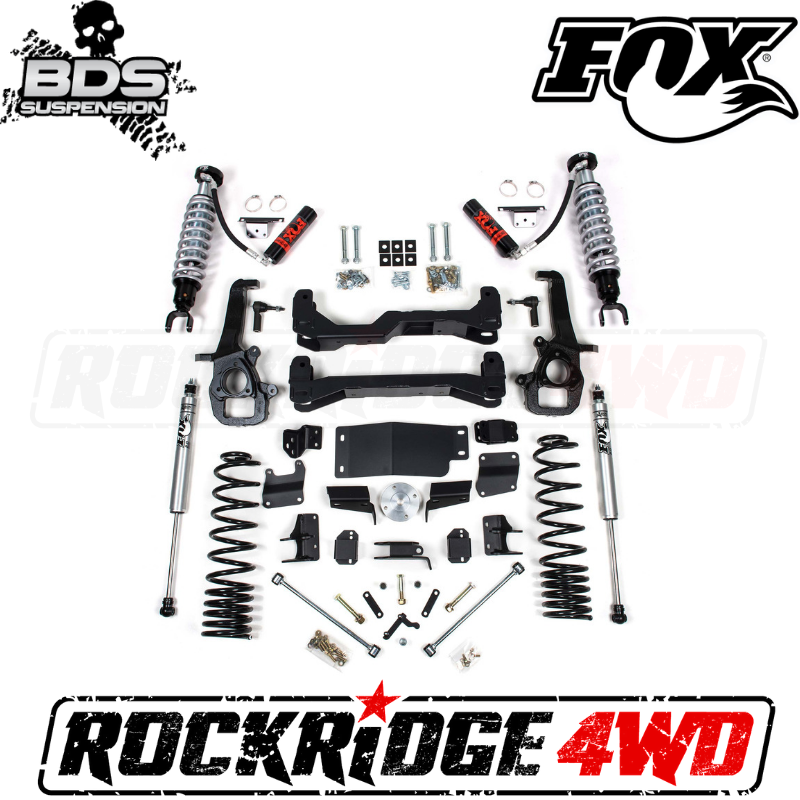

Performance comes from a pair of precision tuned FOX 2.5 factory series remote reservoir coilovers engineered to outperform on and offroad as they soak up the terrain. These coilovers are preset for the correct lift height right out of the box to provide optimal performance and direct bolt-in replacement for the factory strut assemblies. They feature a smooth bore and honed seamless alloy body, 7/8" hardened steel carbon shaft, Eibach coil springs and black anodized machined 6061-T6 billet aluminum mounts along with remove reservoirs with mounting brackets. Along with these coilovers these new 6" coilover systems utilize a pair of 1/4" thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with the heavy duty front skid plate system create a rigid subframe while adding protection for vital steering and driveline components. In place of the factory steering knuckles a pair of specially designed ductile iron replacement steering knuckles are supplied to maintain proper steering geometry for ESC system compatibility. These connect to the factory steering with a pair of heavy duty replacement tie rod ends included in the kit. The front differential is repositioned with BDS's multipoint relocation bracket system to secure the front differential and keep CV axle angles at a minimum. A billet aluminum front driveshaft spacer is also supplied along with longer hardware to allow the reinstallation of the factory driveshaft. Rounding out the front of this kit are a pair of stainless steel braided extended brake line and sway bar relocation brackets.



In the rear of this 6" lift system the factory coil springs are replaced with 5" ProRide coil springs to level the stance. With the additional ride height the rear suspension geometry is corrected with control arm relocation brackets, a bolt-on rear track bar relocation bracket to recenter the axle, extended length sway bar links to correct operating angle, and bump stop extensions to properly limit up travel. For the rear of these systems a pair of FOX 2.0 IFP performance series gas shocks are utilized to offer improved damper performance in rough terrain and a smooth ride on the highway. All kits come finished in a durable textured black powdercoat and sent with all hardware packs to complete the install along with step-by-step installation instructions. All BDS kits include Factory Protection Plus for the ultimate extended warranty to include BDS's No Fine Print Warranty, ESC System compatibility and a 5year-100mile drivetrain warranty to match the dealer. Improve the look and capability of your 2019 RAM 1500 truck with this new 6" performance coilover system from BDS Suspension.

Important Kit Notes

  • 1. RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ
  • 2. Will NOT fit adjustable "air ride" suspension equipped models
  • 3. Will NOT fit 2019 RAM 1500 Classic models, Refer to the 2018 kit listings
  • 4. Stock 17" wheels cannot be reinstalled to to steering interference. Stock 20s can be reinstalled with factory tire size
  • 5. This kit will NOT work on Diesel models.
  • FMVSS No.126 compliant
  • The NHTSA's Federal Motor Vehicle Safety Standard (FMVSS) No.126 requires all new passenger vehicles to include Electronic Stability Control (ESC) systems that meet certain standards that can be tested through a comprehensive series of evasive maneuvers. Aftermarket products must meet these standards as
    • Tire & Wheel Combinations
    • 37" x 12.50" w/17x9 and 4.5" back spacing
    • 37" x 12.50" w/18x9 / 20x9 and 4.5-5" back spacing

*Trimming may be required*

  • Est. Installation: 12 hours
  • Difficulty Level (easy 1 - 5 complicated): 5

Vehicle Fitment Information

  • 2019 Dodge / Ram 1500 Pickup w/o Air-Ride
  • 2019 Dodge / Ram 1500 Rebel w/o Air-Ride

BDS Suspension Lift Kit Warranty

No Fine Print Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.

Details

Shipping Information

  • Item Requires Shipping
  • Free Shipping
