TeraFlex JL 4dr: Alpine Long Arm Bracket Kit (3-6” Lift) – Brackets Only

These CAD-designed TeraFlex JL 4dr: Alpine Long Arm Brackets are engineered for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance.

On higher lifts, Alpine (IR) Long Control Arms (not included) and Alpine Long Arm Brackets reposition the frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the control arms. Can be added to an existing suspension lift.

Must be used with adjustable Alpine IR Long Control Arms (# 1310505) or adjustable Alpine Long Control Arms (# 1316005) to optimize caster angle and tune anti-squat geometry for proper suspension alignment on JL Wrangler/Unlimited models with 3-6” lifts.

Fits:

• JL Wrangler Unlimited (4-door)
• 3-6” Lift

Includes:

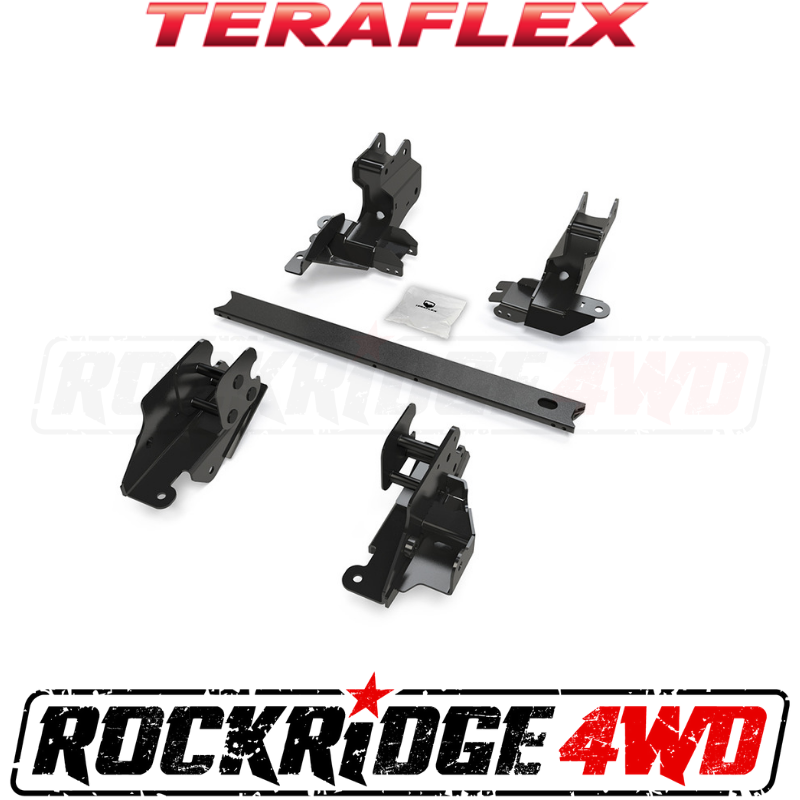

Alpine Long Arm Brackets:
• Front Brackets – pair
• Rear Brackets – pair
• Cross Member
• All necessary hardware

Features & Benefits:

• Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation, which reduces bushing stress during droop and shock load transferred through control arms
• Premium black e-dipped coating provides superior durability and corrosion resistance
• TeraFlex Lifetime Warranty against defects

Note(s):

• Requires cutting/removal of factory control arm bracketry to install Alpine Long Arm Brackets.
• Alpine Long Arm Brackets (JL 2-Door: 1958002; JL 4-Door: # 1958000) MUST be used w/ Alpine IR Long Control Arms (# 1310505) or Alpine Long Control Arms (# 1316005) – NOT INCLUDED.

Install Time: XX Hours

Configurations:

JL:

Alpine IR Long Control Arm Kit – 8-Arm Adjustable (# 1310505):
• Front Upper (# 1310520) – pair
• Front Lower (# 1310500) – pair
• Rear Upper (# 1310560) – pair
• Rear Lower (# 1310540) – pair

Alpine Long Control Arm Kit – 8-Arm Adjustable (# 1316005):
• Front Upper (# 1316520) – pair
• Front Lower (# 1316500) – pair
• Rear Upper (# 1316560) – pair
• Rear Lower (# 1316540) – pair

JL 2-Door:

• Alpine IR Long Control Arm & Bracket Kit – 8-Arm (# 1310512)
• Alpine Long Control Arm & Bracket Kit – 8-Arm (# 1316012)
• Alpine Long Arm Bracket Kit – Brackets Only (# 1958002)

JL 4-Door:

• Alpine IR Long Control Arm & Bracket Kit – 8-Arm (# 1310510)
• Alpine Long Control Arm & Bracket Kit – 8-Arm (# 1316010)
• Alpine Long Arm Bracket Kit – Brackets Only (# 1958000)
