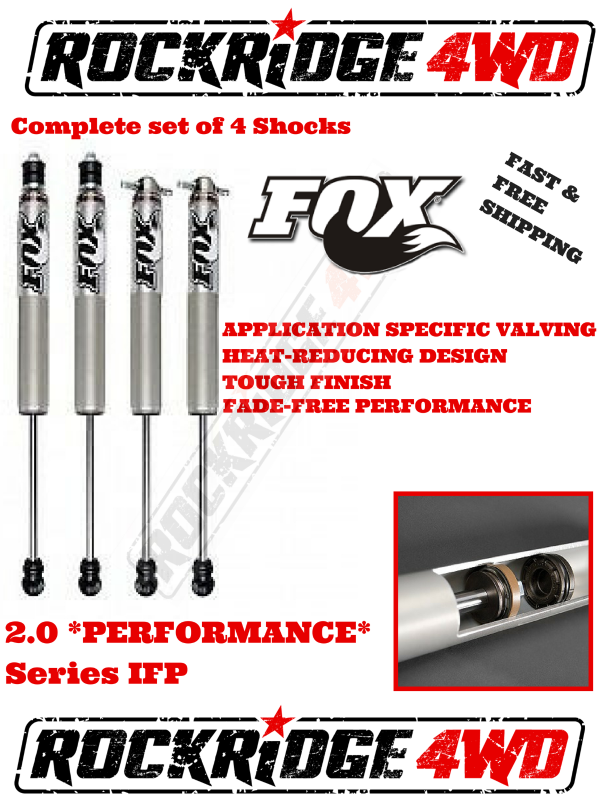

Fox and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. The basic shock design is based on Fox Racing Shox race products, but re-designed to turn your BDS equipped truck or Jeep into an offroad machine.
Cold-forged, metal-impacted 6061 T6 aluminum shock body dissipates heat three times faster than a conventional steel body shock. The 2.0 Performance Series shock runs as cool as a 2.5 diameter shock on the same application.
FOX Racing Shox formulated race shock oil developed for ultimate performance at variable temperatures.
CNC machined aluminum components
Heavy-duty 5/8" chrome shafts are induction case hardened to over 55 Rockwell C, virtually eliminating scratches caused by rust and debris.
The Internal Floating Piston (IFP) design separates shock oil from the high pressure nitrogen charged gas chamber, eliminating oil aeration and cavatation, while providing a predictable ride — capable of handling the roughest conditions with fade-free performance.
Raw Cylinder |
Extended Length |
Collapsed Length |
Body Diameter |
Top Mount |
Bottom Mount |
|
---|---|---|---|---|---|---|
8248 | 30.05 | 18.45 | 2-1⁄4" | EB1 | EB1 |
Raw Cylinder |
Extended Length |
Collapsed Length |
Body Diameter |
Top Mount |
Bottom Mount |
|
---|---|---|---|---|---|---|
8252 | 35.50 | 20.40 | 2-1⁄4" | BP8 | EB1 |
