Zone Offroad 4" IFS Lift System for 2019-2020 Chevy Trail Boss & GMC AT4

ZNC44N
Not Available
Pricing: $1,395.95

Description

Zone Offroad is excited to announce the newest addition to its lineup parts and accessories for the 2019-2020 Chevy Silverado 1500 Trail Boss and GMC Sierra 1500 AT4 trucks. These new 4" IFS Lift Kits have been specially designed new trucks to take advantage of the updated OE suspension design for improved offroad performance and capability while maintaining on road comfort and handling characteristics. This new 4" lift kit joins the current 1.75" leveling kits to offer a more comprehensive suspension solution designed to allow clearance for up to 35-37" tires. These new kits integrate the OE equipped 2" strut lift and net 4" of lift, final ride height is similar to a standard GM1500 equipped with a full 6" IFS lift kit. At the heart of this new 4" lift kit Zone Offroad utilizes a pair of 1/4" thick, American steel crafted drop crossmembers to reposition the OE lower control arms. These control arms offer additional ground clearance and are paired with a differential skid plate to create a strong subframe while adding protection for critical steering and driveline components. In place of the factory steering knuckles a pair of specially designed steering knuckles are supplied to maintain proper steering geometry for ESC system compatibility. Unlike most other kits that limit the wheel configurations this knuckle design allows for 17" or larger aftermarket wheels to be installed as well as 20" OEM wheels. Also supplied are a set of heavy duty replacement tie rod ends and weld-in crossmember plate to strengthen the chassis. The front differential is secured in its new location using a multipoint differential relocation brackets to keep the CV axle operating angles at a minimum. The additional ride height comes from a set of top mounted steel fabricated strut spacers to mount onto the taller Trail Boss/AT4 strut assemblies. These allow for quick-simple installation without the need to disassemble the factory struts and retain the OE ride quality. A pair of sway bar drop brackets are used to correct the operating angle of the factory sway bar as well as created a strong brace between the rear crossmember and the frame.

In the rear of this 4" lift kits, the OE lft blocks are replaced with 5" lift blocks and longer u-bolts to lift and level the stance without stacking lift blocks. Rear brake line / ABS line brackets allow the use of factory brake lines. Rounding out the rear are your choice of Nitro-series twin tube gas shocks or FOX 2.0 adventure series monotube gas shocks for improved damper performance. All Zone Offroad kits include Factory Protection Plus for the ultimate extended warranty to include Zone Offroad's Limited Lifetime Warranty, FMVSS No.126 (ESC System) compliance certification and a 5year-100mile drivetrain warranty to match the dealer. Improve the look and capability of your 2019-2020 Chevy Trail Boss or GMC AT4 truck with this new 4" lift kits from Zone Offroad.

Featured Technology & Benefits

  • Maintains on-road handling while improving offroad performance
  • Heavy duty crossmembers and skid plates for protection
  • New steering knuckles add strength and allow ESC system compatibility
  • Top mounted front strut spacer retains factory ride quality

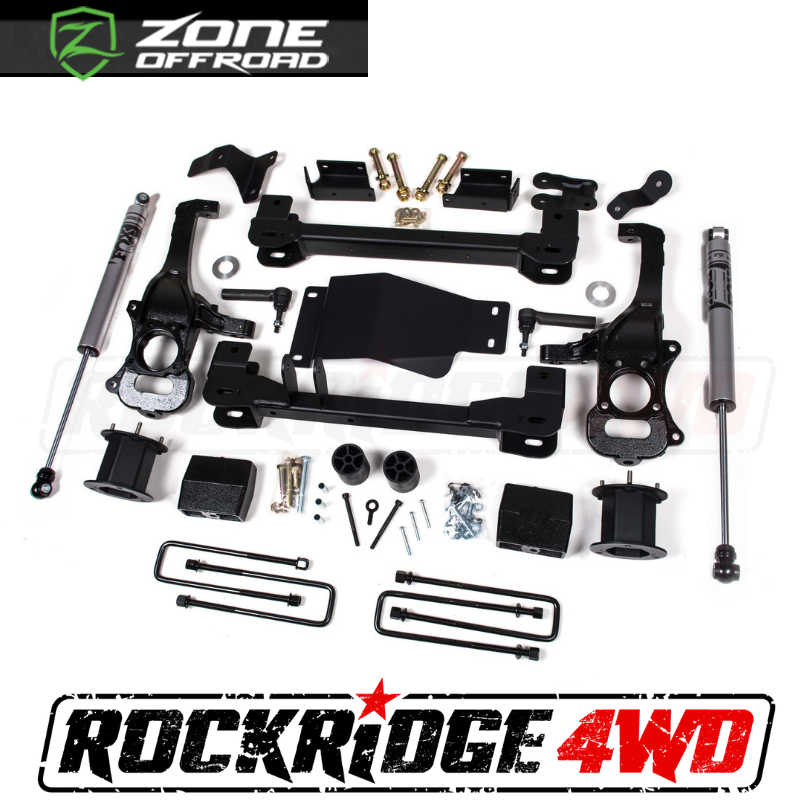

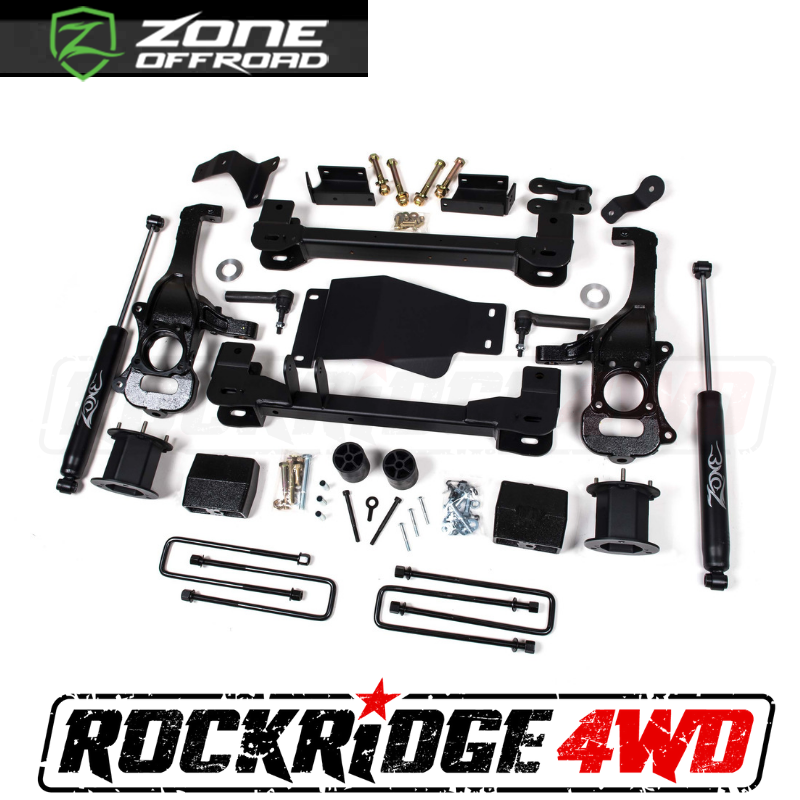

  • Includes Nitro Series or FOX 2.0 Adventure Series rear shocks
  • Allows fitment of 35-37" tires

Important Notes!

  • Requires frame bracket modification
  • Will not fit Adaptive Ride Control (ARC) equipped models
  • Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled.
  • 17" wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod.
  • All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.
  • Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.

This product fits the following applications:

  • 19-20 Chevy Silverado 1500 Trail Boss
  • 19-20 GMC Sierra 1500 AT4

Quick Specs

  • Front Lift Height: 4″
  • Front Lift Method: Strut Spacer
  • Rear Lift Height: 3″
  • Rear Lift Method: Block
  • Install Time Hrs: 8
  • Difficulty Level 1-5: 3
  • Wheel Size: 17x9/18x9
  • Back Spacing: 4.5″
  • Max Tire Size: 34x12.50
  • Wheel Size: 20x9/22x9
  • Back Spacing: 4.5″-6.25″
  • Max Tire Size: 37x12.50
  • Wheel Size: 20x9/22x9
  • Back Spacing: 5.5″-6.25″
  • Max Tire Size: 37x12.50
