ROUGH COUNTRY 5 INCH LIFT KIT CHEVY/GMC 2500HD (20-22)

RC-10230A
Pricing: $1,849.95

Customize Your Item

- Shock Series -
 * required
Qty:
Free Shipping

Description

Give your HD a total transformation that complements the look of your new truck with Rough Country’s Non-Torsion Drop 5-inch Suspension Lift Kit. This all-inclusive kit comes with everything you need to give your truck an aggressive look and enough increased ride height to run up to 35-inch tires with a non-torsion drop design that keeps everything looking flush and clean underneath.

GM’s 2020 HD 2500 received a major redesign. Once lifted, this truck transforms into an absolute monster that will keep you smiling every time you see it. While some kits on the market leave your torsion bars hanging in plain view, Rough Country’s 5-inch lift features a non-torsion drop design that keeps everything tucked in and tidy, effectively giving you more ground clearance and a much cleaner look that fits in better with the overall design of your new truck.

This kit also includes a set of front and rear crossmembers that are laser cut from durable US steel for a precise fit on your vehicle and feature an “RC” logo that displays prominently at the front of the vehicle. Each kit also features lifted knuckles, a beefy differential skid plate, and a set of Rough Country’s N3 Nitrogen-charged shock absorbers that provide an incredibly smooth, factory-like ride quality both on and off-road.

Best of all, this kit features Rough Country’s Lifetime Replacement Guarantee!

FEATURES

  • Clean, Non-torsion Drop Design
  • Laser-cut crossmember for precise fit
  • Maintains factory ride quality
  • Maintains the stock track width
  • Unmatched ground clearance
  • Axles maintain factory position and angle
  • No drilling or modifying of the differential
  • No drivetrain modifications required
  • Includes our latest application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

NOTES - IMPORTANT

  • Does NOT fit dually models.
  • Does NOT fit models with Magnetic Ride Control.
  • Does NOT work with factory wheels.
  • Gas models may require modification to the exhaust for driveshaft clearance

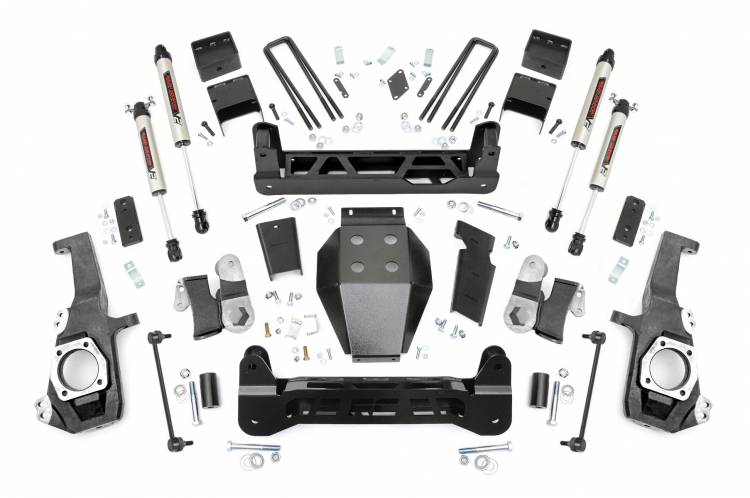

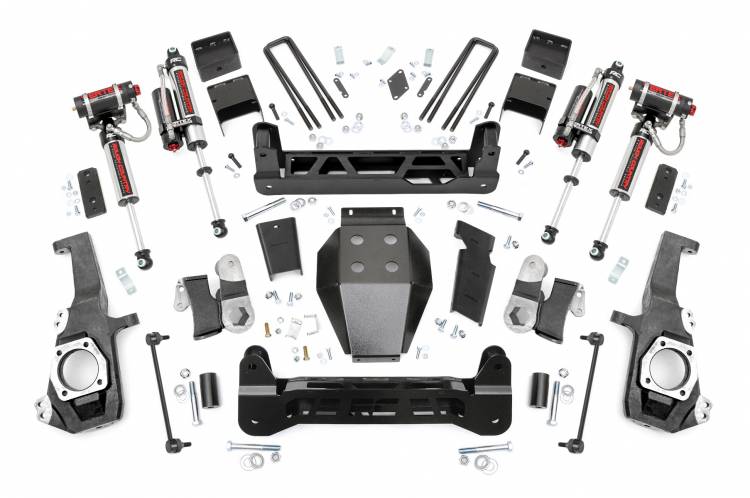

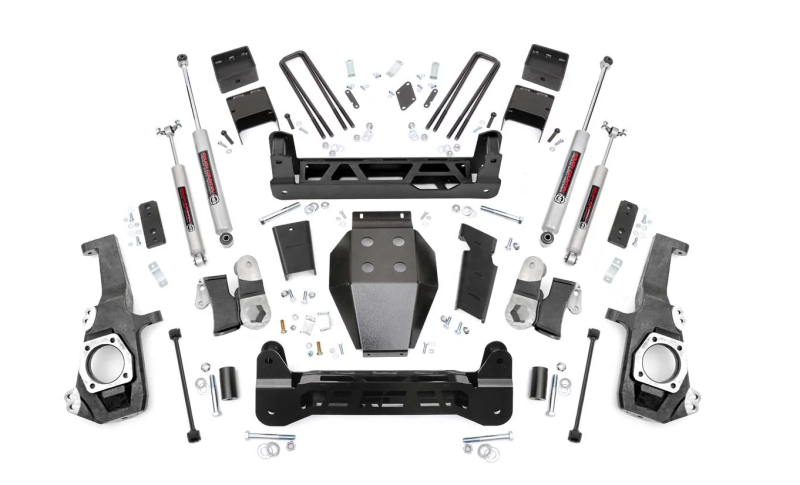

FRONT
  • Lifted knuckles
  • Front crossmember
  • Rear crossmember
  • Differential drop brackets
  • Differential skid plate
  • Non-torsion bar drop brackets
  • Sway-bar links
  • Sway-bar brackets
  • Upper shock brackets
  • Brake line relocation bracket
  • Hardware
REAR
  • Lift blocks
  • U-bolts
  • Bump-stop brackets
  • Brake line brackets
  • E-brake line bracket
  • Hardware
SHOCKS
(4) Premium N3 series
SKU 10230
Est. Install Time 8 - 10 hours
2020-2022 4WD Chevy Silverado 2500 HD
2020-2022 4WD GMC Sierra 2500 HD
35x12.50R20 20x9 8x180 -12 -
35x12.50R20 20x9 8x180 +0 -
35x12.50R20 20x9 8x180 +1 -
295/60R20 20x9 8x180 -12 -
295/60R20 20x9 8x180 +0 -
295/60R20 20x9 8x180 +1 -
295/60R20 20x10 8x180 -18 -
295/60R20 20x10 8x180 -19 -
35x12.50R20 20x10 8x180 -18 Minor Trimming
35x12.50R20 20x10 8x180 -19 Minor Trimming
Does NOT fit factory wheels
