You'll never look at a Tundra the same way after installing Rough Country's 4-inch Toyota Tundra kit. This all-inclusive kit is a total transformation for your truck, with durable lifted knuckles, protective skid plate, and all the brackets and hardware needed to set your truck to a factory-like geometry while providing additional ground clearance. The beefy front crossmember features a high-clearance design to help traverse off-road obstacles with no hang-ups.
Run larger wheels and tires while giving your truck a one-of-a-kind look and exceptional off-road performance. This kit affords your truck an aggressive appearance and a higher profile that is sure to demand attention. This kit includes Rough Country’s Nitrogen-charged N3 Shocks for the ultimate balance in highway ride quality and off-road vibration dampening. Includes Rough Country’s Lifetime Replacement Guarantee.
FEATURES
- Unmatched ground clearance due to high clearance crossmember design.
- 100% precision laser cut materials used in latest computer aided design process.
- Levels the front with the rear of the vehicle
- Will work with factory 18-inch or larger wheels.
- Requires no modification to the stock differential mounts, drivetrain or exhaust.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.

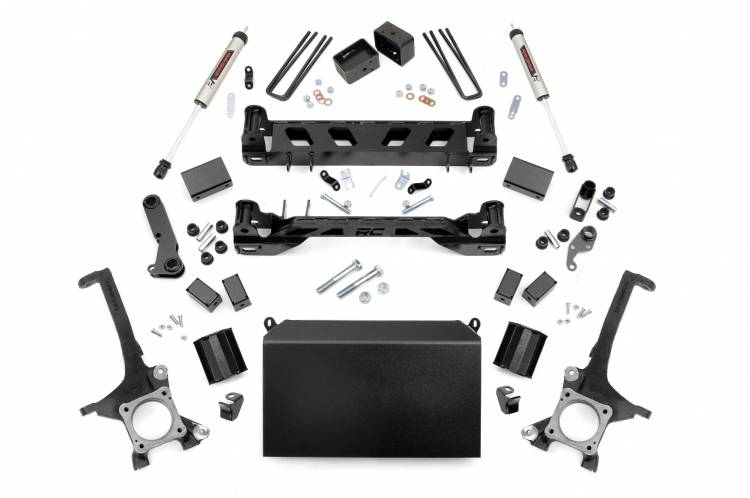

OPTIONAL V2 MONOTUBE SHOCKS
- Incredible ride quality & performance
- Monotube design
- Nitrogen-charged
- 46mm high-flow piston
- Mounts inverted
- 36kN Tensile Strength
- 3-year Manufacturer's Warranty

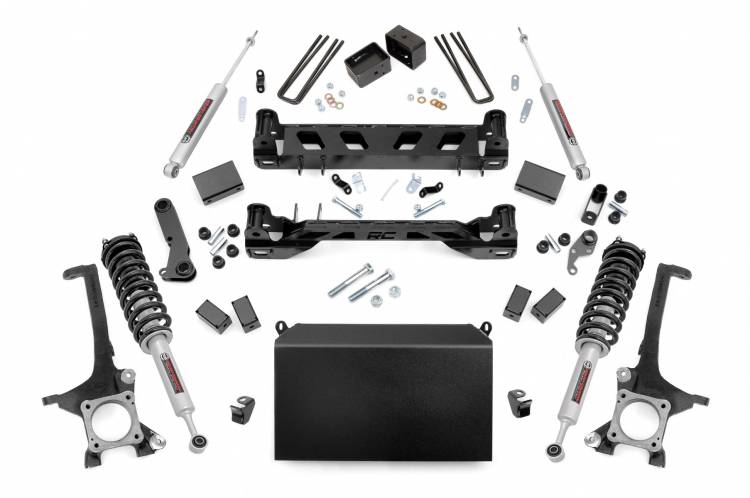

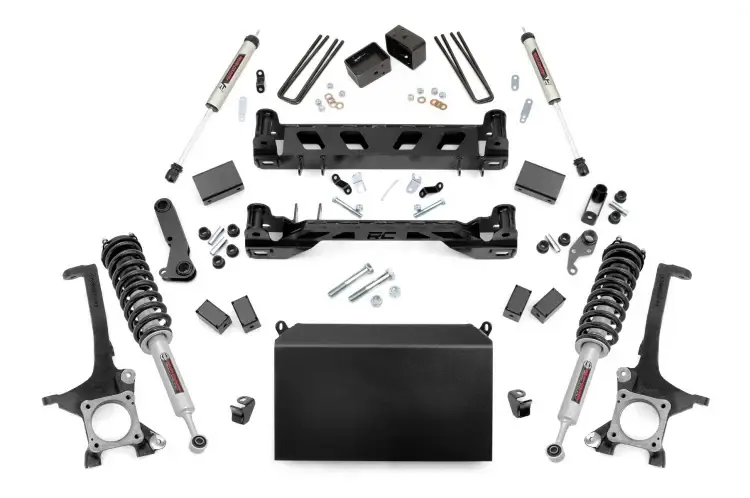

OPTIONAL N3 STRUTS
- Maintains smooth, factory-like ride
- Infinitely Variable Damping
- Leak-proof piston seal
- Massive 1 3/8in Bore
- Increased ground clearance
- Only fits 4WD models
- 3-year Limited Warranty
NOTES - IMPORTANT
- N3 Loaded Struts are ONLY for 4WD models.
- Cutting and drilling is required.
- Does NOT fit Pro Series models
- Does NOT fit XSP-X models.
- Requires 18-inch or larger wheels.
- Stock 18-inch or larger wheels can be used but can accommodate tires no wider than 11.5-inch.
- In some cases minor trimming may be needed to clear 35-inch tires.
- On vehicles equipped with a two piece driveshaft there is the potential for take off vibration, this can be corrected with SKU: 1776BOX1 carrier bearing shim kit.

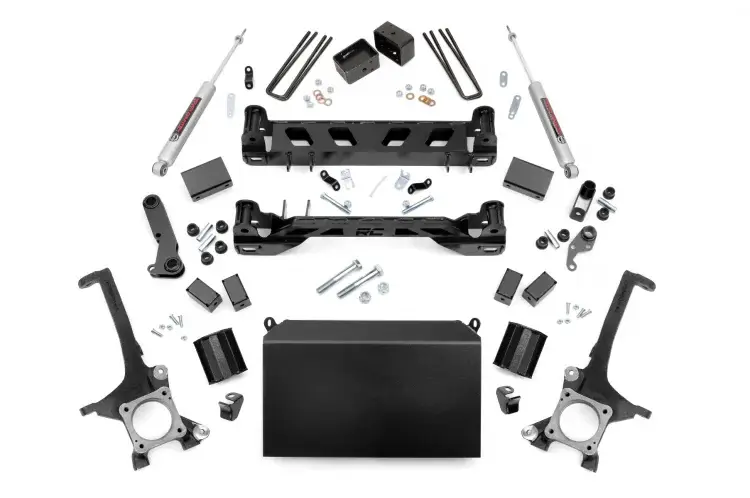

FRONT
- Lifted knuckles
- Strut spacers
- Front crossmember
- Rear crossmember
- Steering stops
- Brake line brackets
- Differential drop brackets
- Bumpstop brackets
- Sway-bar brackets
- Lower skid plate
- Hardware
REAR
- Fabricated lift blocks
- U-bolts
- Brake line brackets
- Hardware
SHOCKS
- (2) Premium N3 Series (Rear)
Est. Install Time |
8-10 hours
|
2016-2021 |
2WD |
Toyota |
Tundra |
2016-2021 |
4WD |
Toyota |
Tundra |
35x12.50R18 |
18x8.5 |
5x150 |
+36 |
- |
35x12.50R18 |
18x9 |
5x150 |
+18 |
- |
35x12.50R18 |
18x9 |
5x150 |
+20 |
- |
35x12.50R18 |
18x9 |
5x150 |
+0 |
Minor Trimming |
35x12.50R18 |
18x9 |
5x150 |
+1 |
Minor Trimming |
35x12.50R18 |
18x9 |
5x150 |
-12 |
Minor Trimming |
35x12.50R20 |
20x9 |
5x150 |
+18 |
- |
35x12.50R20 |
20x9 |
5x150 |
+20 |
- |
35x12.50R20 |
20x9 |
5x150 |
+0 |
Minor Trimming |
35x12.50R20 |
20x9 |
5x150 |
+1 |
Minor Trimming |
35x12.50R20 |
20x9 |
5x150 |
-12 |
Minor Trimming |
