ROUGH COUNTRY 6 INCH LIFT KIT DIESEL | FORD SUPER DUTY 4WD (2017-2022)
RC-55630
Pricing:
$1,349.95
Description
Take your truck to new heights with Rough Country's 6in Radius Arm Suspension Lift! This all-inclusive kit comes with everything you need for a total trasnformation of your truck. Run up to 37in tires while preserving the smooth, factory ride quality with this impressive upgrade.

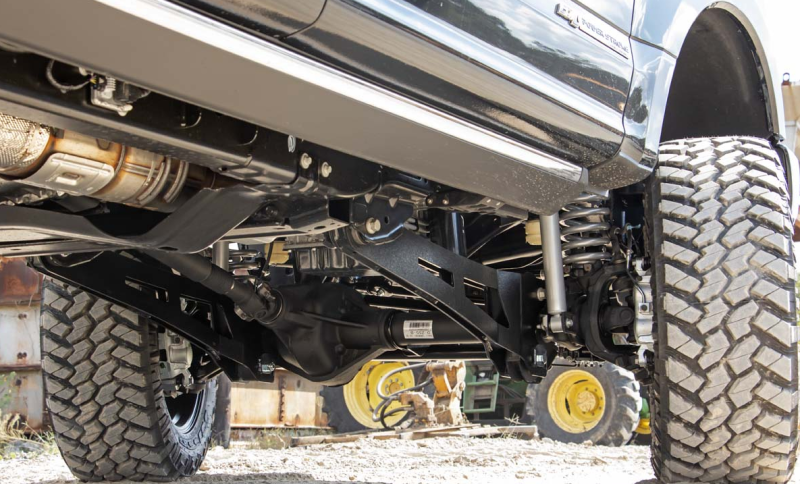

When changing a vehicle's suspension, the key to preserving ride quality is keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 6-inch Radius Arm Suspension Lift features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. At 27lbs each, these beefy, upgraded Radius Arms dwarf stock equipment and feature durable Clevite Rubber Bushings for maximum vibration absorption.
This kit includes a set of lifted coil springs and ultra-durable, fabricated anti-wrap rear blocks that prevent binding and axle wrap. Best of all, this kit comes with your choice of Rough Country’s N3, V2 Monotube, or Vertex Adjustable Reservoir shocks! Includes Rough Country’s Lifetime Replacement Warranty
FEATURES
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Includes durable Radius Arms
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
OPTIONAL PREMIUM N3 SHOCKS
- 10-Stage Variable Valving
- High Pressure Nitrogen Charged
- 35mm Piston
- Chromed Hardened 18mm Piston Rod
- 36kN Tensile Strength
- Spring Loaded Piston Rod Seal
- Metallic Silver Paint
- Silver powder coat finish
- 3-year Manufacturer's Warranty

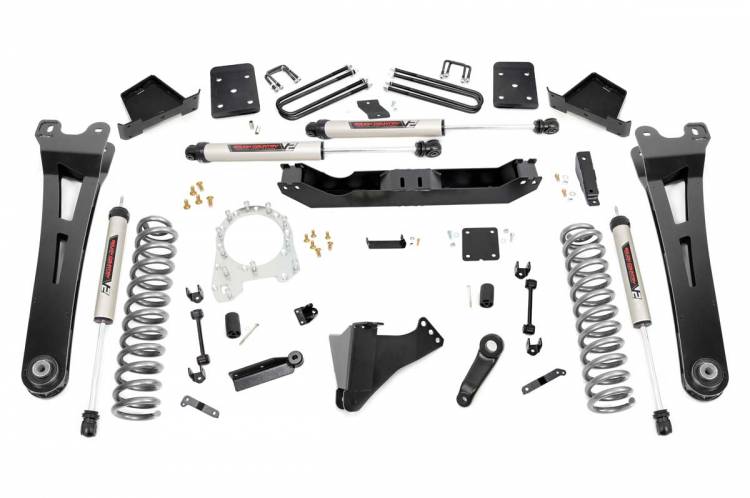

OPTIONAL V2 MONOTUBE SHOCKS
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- 3-year Manufacturer's Warranty

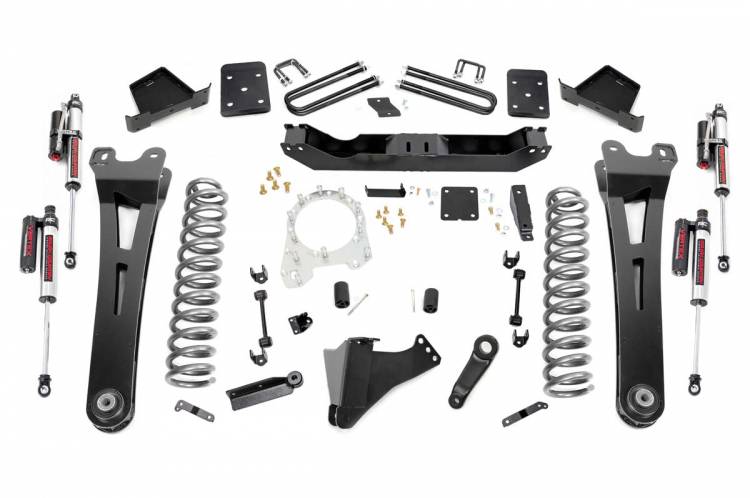

OPTIONAL VERTEX SHOCKS
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body
- 3-year Manufacturer's Warranty
NOTES - IMPORTANT
- Models equipped with a 10-speed transmission must remove dial pin.
- Does NOT fit gas engine models.
- Does NOT fit dually models.
- Does NOT fit manual shift transfer cases
- Does NOT work on models equipped with Tremor Factory Trim Package

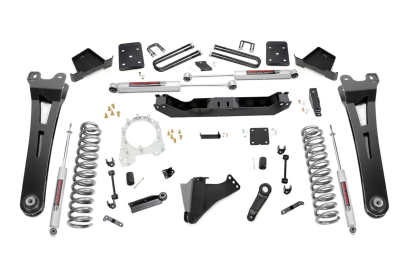

FRONT
- Lifted coil springs
- Radius arms
- Clocking ring kit
- Sway-bar links
- Track bar drop bracket
- Stabilizer relocation brackets
- Pitman arm
- Brake line brackets
- Bumpstop spacers
- Hardware
REAR
- Fabricated lift blocks
- Brake line brackets
- U-bolts
- Hardware
SHOCKS
- (4) Premium N3 series
| Est. Install Time | 6-10 hours |
|---|
| 2017-2022 | 4WD | Ford | F-250 Super Duty |
| 2017-2022 | 4WD | Ford | F-350 Super Duty |
| 37x12.50R17 | 17x9 | 8x170 | -12 | - |
| 37x12.50R18 | 18x9 | 8x170 | -12 | - |
| 37x12.50R20 | 20x9 | 8x170 | -12 | - |
| 37x12.50R22 | 22x9 | 8x170 | -12 | - |
Details
- RC-55630
- RC-55630
- Rough Country
- New
Categories
Shipping Information
- Item Requires Shipping
- Free Shipping
