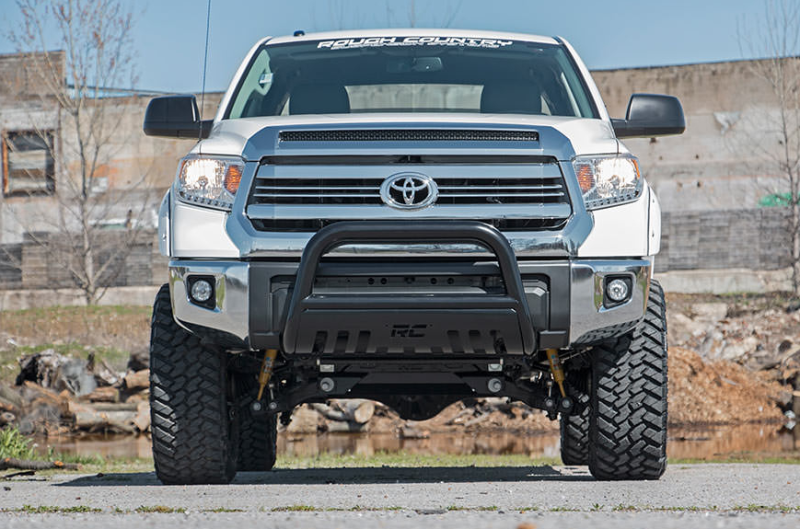

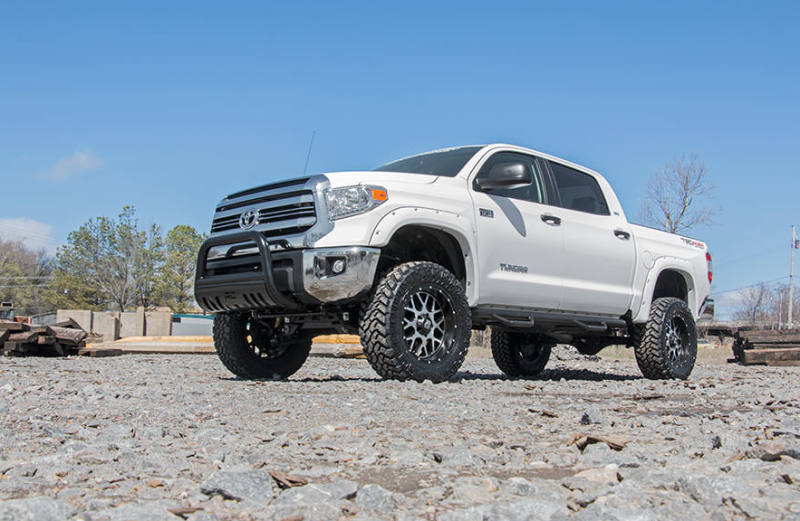

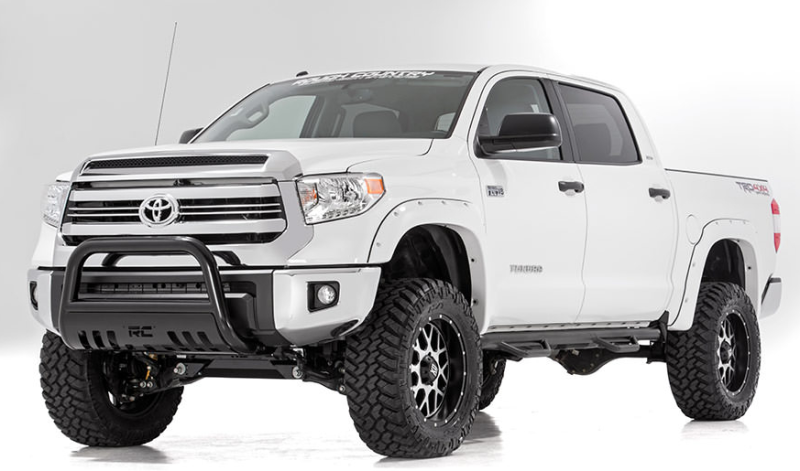

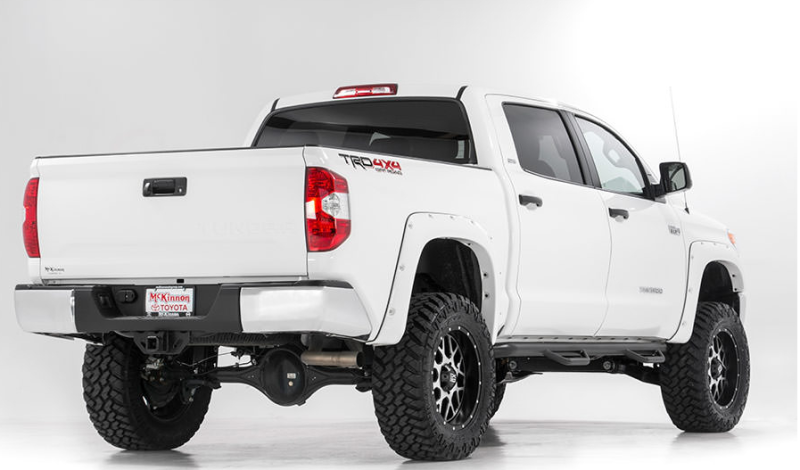

ROUGH COUNTRY 6 INCH LIFT KIT TOYOTA TUNDRA 2WD/4WD (2016-2021)

(0) Reviews: Write first review
RC-75230
Pricing: $1,379.95

Customize Your Item

- Select Configuration -
 * required
Qty:
Free Shipping

Description

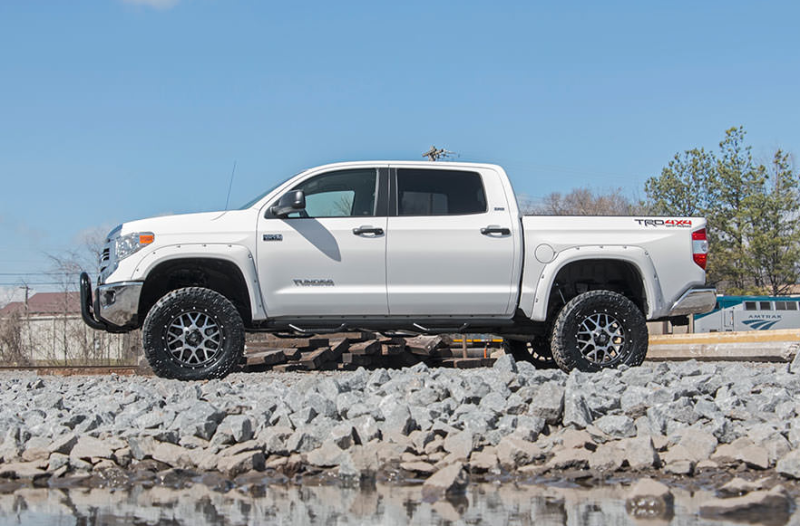

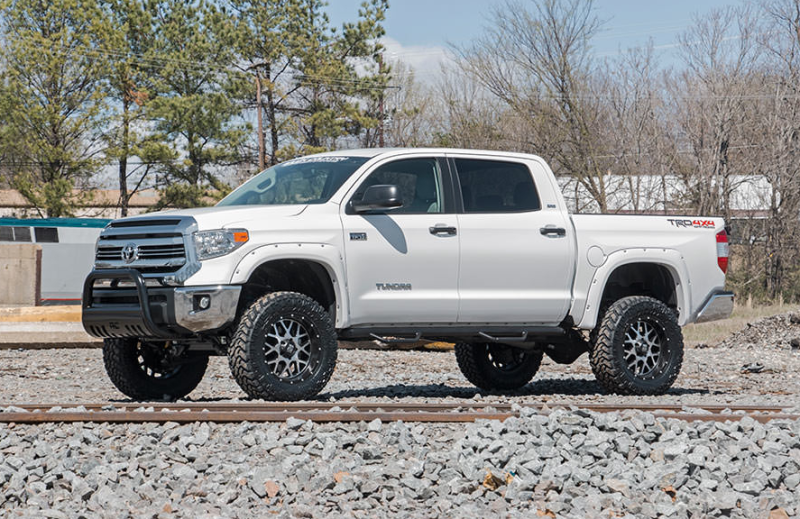

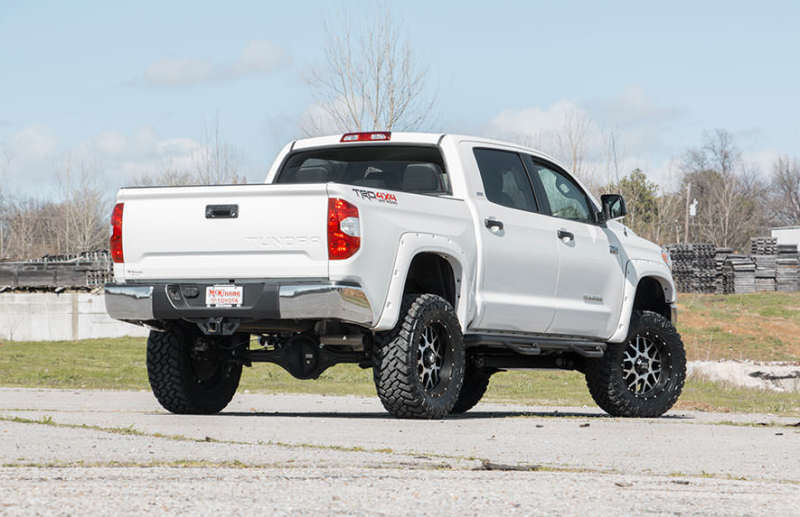

You'll never look at a Tundra the same way after installing Rough Country's 6-inch Toyota Tundra kit. This all-inclusive kit is a total transformation for your truck, with durable lifted knuckles, protective skid plate, and all the brackets and hardware needed to set your truck to a factory-like geometry while providing additional ground clearance. The beefy front crossmember features a high-clearance design to help traverse off-road obstacles with no hang-ups.

Run larger wheels and tires while giving your truck a one-of-a-kind look and exceptional off-road performance. This kit affords your truck an aggressive appearance and a higher profile that is sure to demand attention. This kit includes Rough Country’s Nitrogen-charged N3 Shocks for the ultimate balance in highway ride quality and off-road vibration dampening. Includes Rough Country’s Lifetime Replacement Guarantee.

FEATURES

    • Unmatched ground clearance due to high clearance crossmember design.
    • 100% precision laser cut materials used in latest computer aided design process.
    • Levels the front with the rear of the vehicle
    • Will work with factory 18-inch or larger wheels.
    • Requires no modification to the stock differential mounts, drivetrain or exhaust.
    • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.

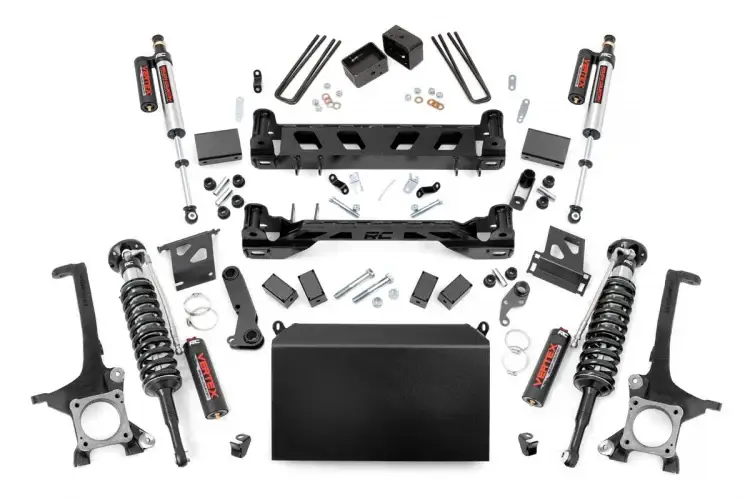

OPTIONAL VERTEX COILOVERS



  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-Charged
  • Massive 2.5in Piston
  • 3-Stage Seal System
  • Only fits 4WD models
  • 3-year Manufacturer's Warranty

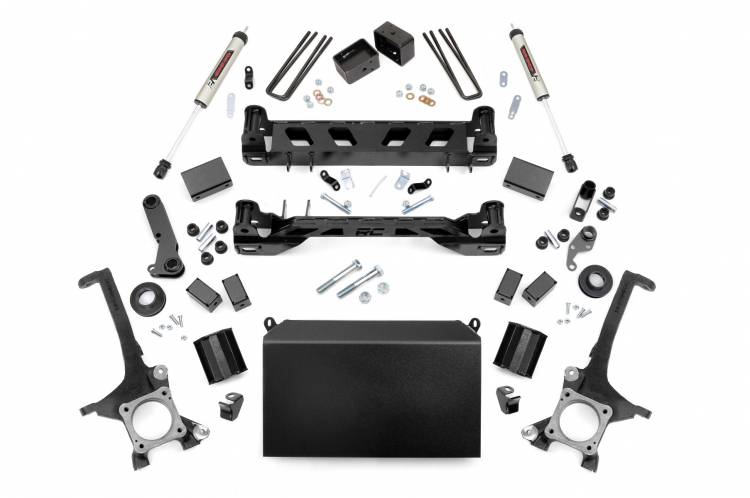

OPTIONAL V2 MONOTUBE SHOCKS



  • Incredible ride quality & performance
  • Monotube design
  • Nitrogen-charged
  • 46mm high-flow piston
  • Mounts inverted
  • 36kN Tensile Strength
  • 3-year Manufacturer's Warranty





OPTIONAL N3 STRUTS



  • Maintains smooth, factory-like ride
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Massive 1 3/8in Bore
  • Increased ground clearance
  • Only fits 4WD models
  • 3-year Limited Warranty



NOTES - IMPORTANT

  • N3 Loaded Struts are ONLY for 4WD models.
  • Vertex adjustable coilovers are ONLY for 4WD models.
  • Cutting and drilling is required.
  • Does NOT fit Pro Series models.
  • On TRD models equipped with a red rear sway bar it must be removed for installation.
  • Does NOT fit XSP-X models.
  • Requires 18-inch or larger wheels.
  • Stock 18-inch or larger wheels can be used but can accommodate tires no wider than 11.5-inch.
  • In some cases minor trimming may be needed to clear 35-inch tires.
  • On vehicles equipped with a two piece driveshaft there is the potential for take off vibration, this can be corrected with SKU: 1776BOX1 carrier bearing shim kit.

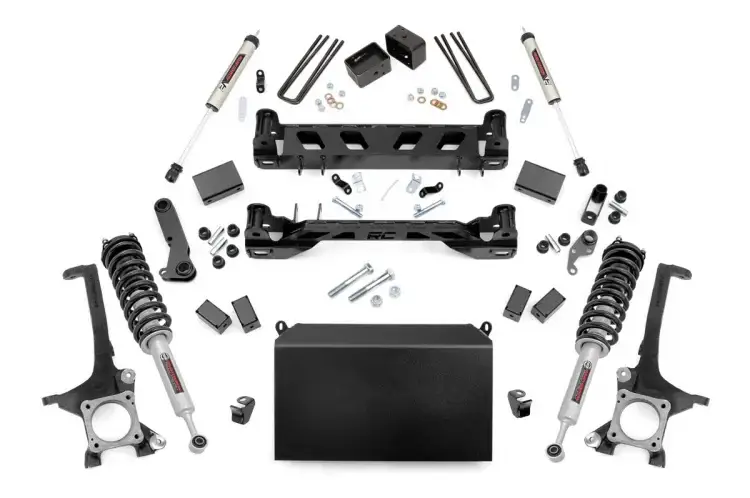

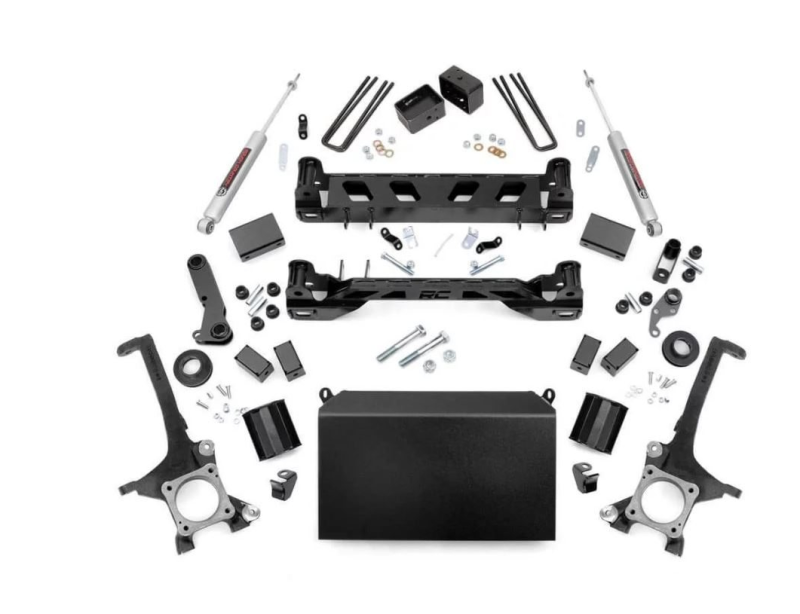

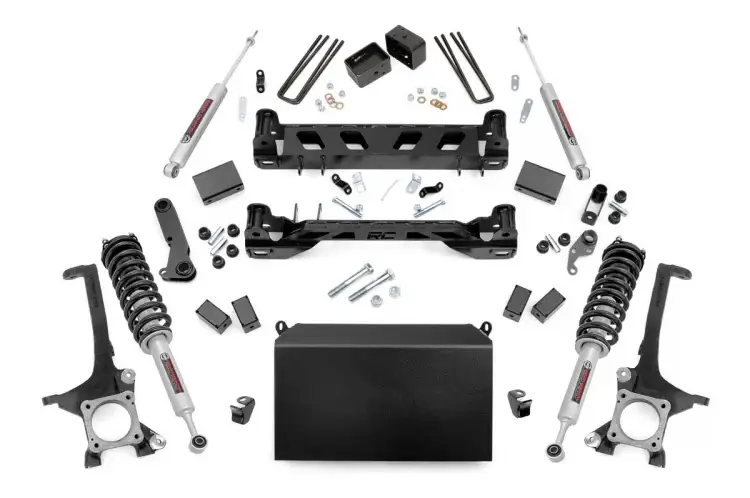

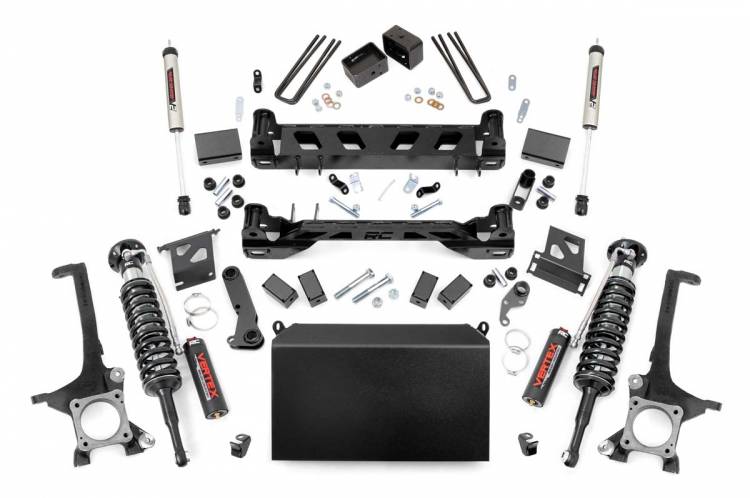

FRONT
  • Lifted knuckles
  • Strut spacers
  • Front crossmember
  • Rear crossmember
  • Steering stops
  • Brake line brackets
  • Differential drop brackets
  • Bumpstop brackets
  • Sway-bar brackets
  • Lower skid plate
  • Hardware
REAR
  • Fabricated lift blocks
  • U-bolts
  • Brake line brackets
  • Hardware
SHOCKS
  • (2) Premium N3 Series (Rear)
Est. Install Time 8-10 hours
2016-2021 2WD Toyota Tundra
2016-2021 4WD Toyota Tundra
35x12.50R18 18x9 5x150 +20 -
35x12.50R18 18x9 5x150 +18 -
35x12.50R18 18x9 5x150 -12 -
35x12.50R18 18x9 5x150 +0 -
35x12.50R18 18x9 5x150 +1 -
35x12.50R18 18x9 5x150 -12 -
35x12.50R20 20x9 5x150 +20 -
35x12.50R20 20x9 5x150 +18 -
35x12.50R20 20x9 5x150 +0 -
35x12.50R20 20x9 5x150 +1 -
35x12.50R20 20x9 5x150 -12 -
35x12.50R20 20x10 5x150 -18 Minor Trimming
35x12.50R20 20x10 5x150 -19 Minor Trimming
35x12.50R20 20x10 5x150 -24 Minor Trimming
35x12.50R20 20x10 5x150 -25 Minor Trimming
35x12.50R22 22x10 5x150 -18 Minor Trimming
35x12.50R22 22x10 5x150 -19 Minor Trimming
35x12.50R22 22x10 5x150 -24 Minor Trimming
35x12.50R22 22x10 5x150 -25 Minor Trimming
