Trail-Gear Transfer Case Gear Set for Suzuki Jimny Electric Pushbutton with Auto Transmissions (15%High/104%Low)

Transfer Case Gear Set for Suzuki Jimny Electric Pushbutton with Auto Transmissions (15%High/104%Low)

Trail-Gear is proud to offer a low range gear set for Jimnys with chain-drive transfer cases and automatic transmissions. Our Jimny low-range gears will reduce the high-range ratio of your pushbutton transfer case by 15% and the low-range ratio by 104%. They will greatly improve your off-road experience in Jimnys with a tire size of 29" [736mm] or higher.

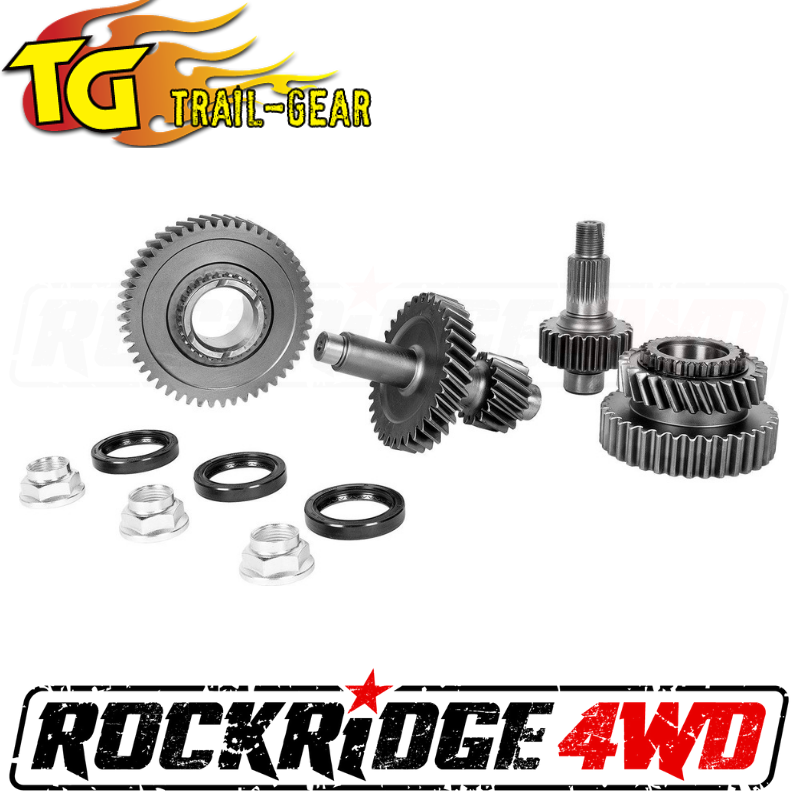

This complete kit includes (4) new gears made from high-strength SCM415 alloy steel. We also include a set of our Trail-Safe™ Jimny transfer case Input/Output seals along with (3) new staking nuts and a tube of Ultra Grey RTV silicone to seal your transfer case. Detailed instructions are available to guide you through the installation. Minor clearancing of the transfer case housing required.

Note:  These gears are for Jimny pushbutton transfer cases only.  They will not work with Jimny manual transfer cases (planetary gear style).

 WARNING Cancer and Reproductive Harm

• High-strength gears made from heat-treated & carburized SCM415 alloy steel.
• 15% high-range reduction, 104% low-range reduction.

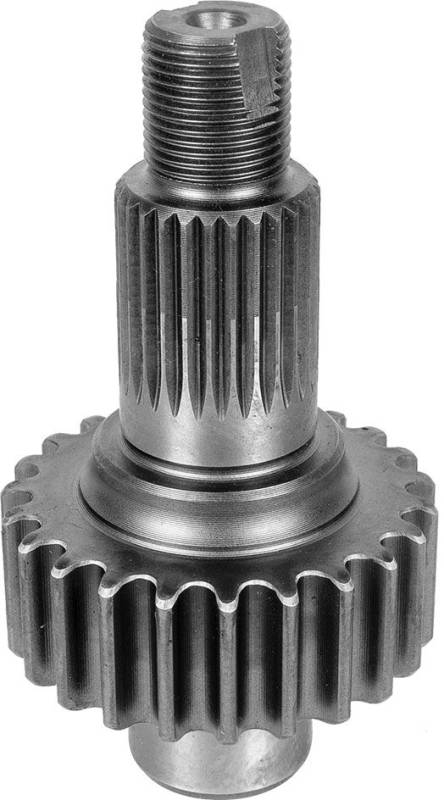

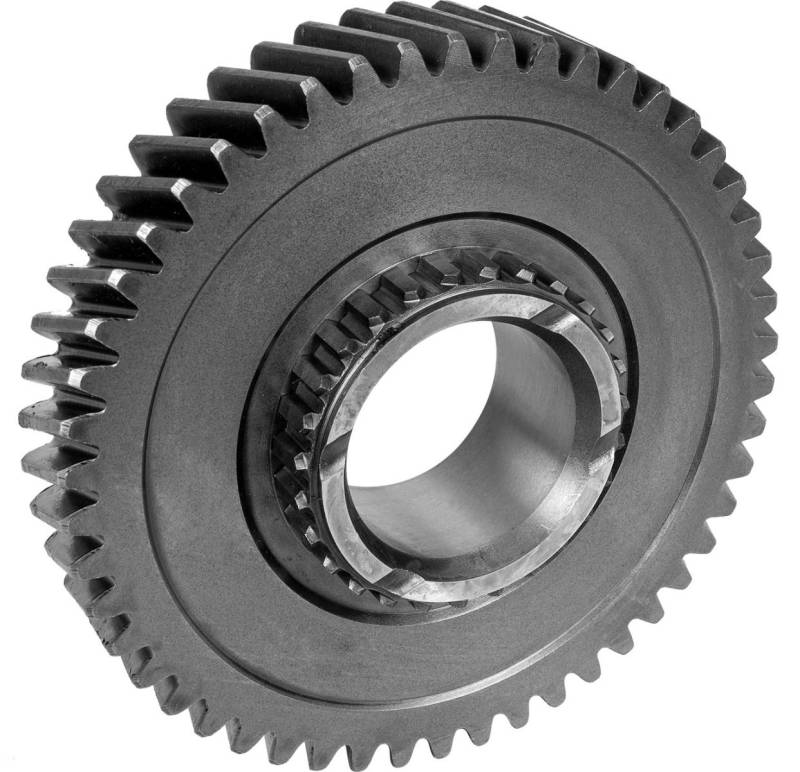

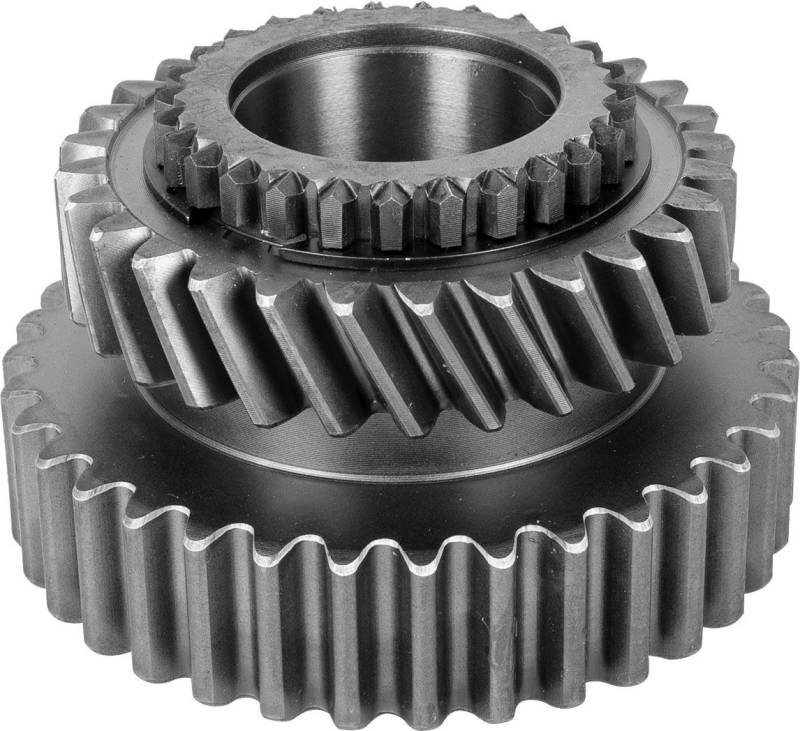

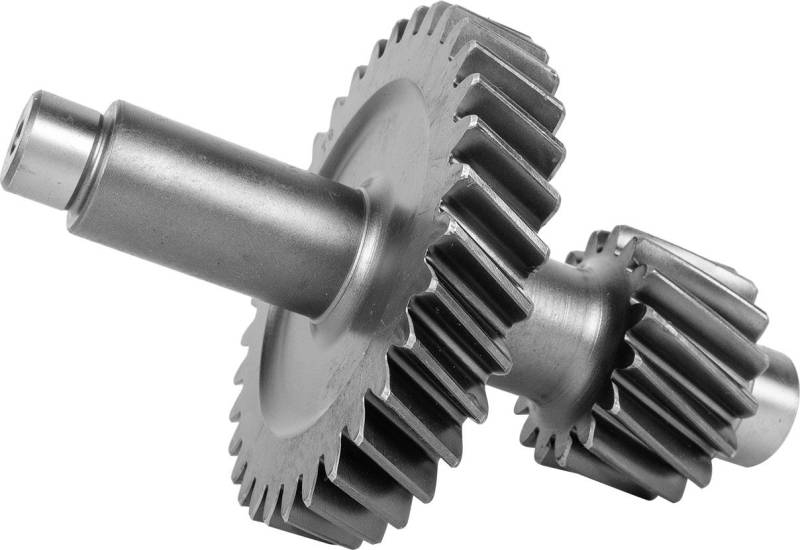

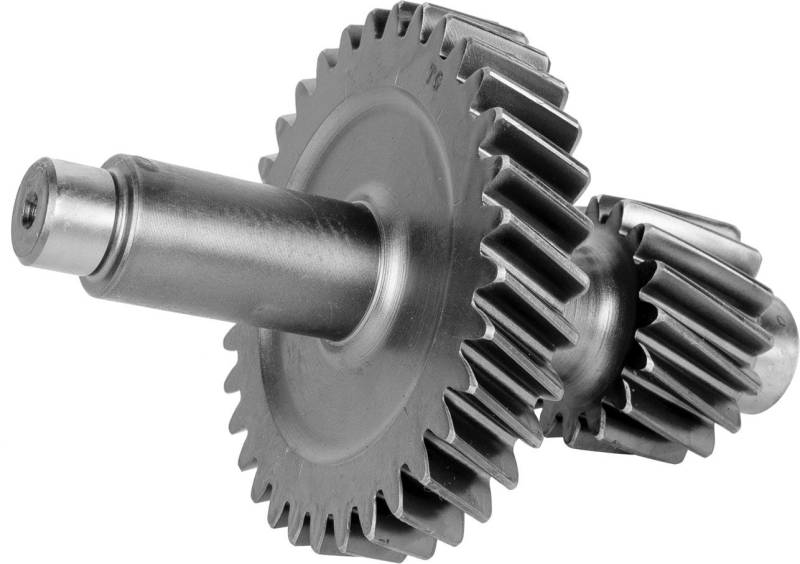

• New input shaft, low output gear, sprocket output gear, and counter shaft gear.
• Includes (3) Trail-Safe™ Jimny T-Case Input/Output oil seals and (3) staking nuts.

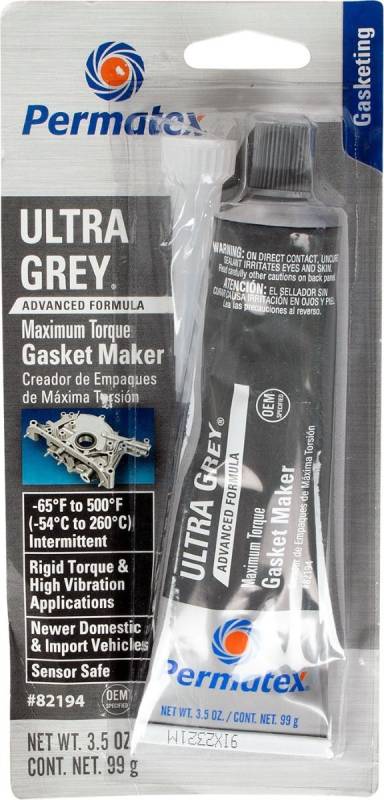

• Ultra Grey RTV silicone is provided.
• Minor clearancing of the transfer case housing required.

Automatic Transmissions Only

• 1998 Suzuki Jimny JB23
• 1999 Suzuki Jimny JB23
• 2000 Suzuki Jimny JB23
• 2001 Suzuki Jimny JB23
• 2002 Suzuki Jimny JB23
• 2003 Suzuki Jimny JB23
• 2004 Suzuki Jimny JB23
• 2005 Suzuki Jimny JB23
• 2006 Suzuki Jimny JB23
• 2007 Suzuki Jimny JB23
• 2008 Suzuki Jimny JB23
• 2009 Suzuki Jimny JB23
• 2010 Suzuki Jimny JB23
• 2011 Suzuki Jimny JB23
• 2012 Suzuki Jimny JB23
• 2013 Suzuki Jimny JB23
• 2014 Suzuki Jimny JB23
• 2015 Suzuki Jimny JB23
• 2016 Suzuki Jimny JB23
• 2017 Suzuki Jimny JB23
• 2018 Suzuki Jimny JB23
• 2019 Suzuki Jimny JB23
• 2020 Suzuki Jimny JB23
• 2021 Suzuki Jimny JB23

• 1998 Suzuki Jimny JB33
• 1999 Suzuki Jimny JB33
• 2000 Suzuki Jimny JB33
• 2001 Suzuki Jimny JB33
• 2002 Suzuki Jimny JB33
• 2003 Suzuki Jimny JB33
• 2004 Suzuki Jimny JB33
• 2005 Suzuki Jimny JB33
• 2006 Suzuki Jimny JB33
• 2007 Suzuki Jimny JB33
• 2008 Suzuki Jimny JB33
• 2009 Suzuki Jimny JB33
• 2010 Suzuki Jimny JB33
• 2011 Suzuki Jimny JB33
• 2012 Suzuki Jimny JB33
• 2013 Suzuki Jimny JB33
• 2014 Suzuki Jimny JB33
• 2015 Suzuki Jimny JB33
• 2016 Suzuki Jimny JB33
• 2017 Suzuki Jimny JB33
• 2018 Suzuki Jimny JB33
• 2019 Suzuki Jimny JB33
• 2020 Suzuki Jimny JB33
• 2021 Suzuki Jimny JB33

• 2000 Suzuki Jimny JB43
• 2001 Suzuki Jimny JB43
• 2002 Suzuki Jimny JB43
• 2003 Suzuki Jimny JB43
• 2004 Suzuki Jimny JB43
• 2005 Suzuki Jimny JB43
• 2006 Suzuki Jimny JB43
• 2007 Suzuki Jimny JB43
• 2008 Suzuki Jimny JB43
• 2009 Suzuki Jimny JB43
• 2010 Suzuki Jimny JB43
• 2011 Suzuki Jimny JB43
• 2012 Suzuki Jimny JB43
• 2013 Suzuki Jimny JB43
• 2014 Suzuki Jimny JB43
• 2015 Suzuki Jimny JB43
• 2016 Suzuki Jimny JB43
• 2017 Suzuki Jimny JB43
• 2018 Suzuki Jimny JB43
• 2019 Suzuki Jimny JB43
• 2020 Suzuki Jimny JB43
• 2021 Suzuki Jimny JB43

• 2005 Suzuki Jimny SN413
• 2006 Suzuki Jimny SN413
• 2007 Suzuki Jimny SN413
• 2008 Suzuki Jimny SN413
• 2009 Suzuki Jimny SN413
• 2010 Suzuki Jimny SN413
• 2011 Suzuki Jimny SN413
• 2012 Suzuki Jimny SN413
• 2013 Suzuki Jimny SN413
• 2014 Suzuki Jimny SN413
• 2015 Suzuki Jimny SN413
• 2016 Suzuki Jimny SN413

• 2005 Suzuki Jimny SN415
• 2006 Suzuki Jimny SN415
• 2007 Suzuki Jimny SN415
• 2008 Suzuki Jimny SN415
• 2009 Suzuki Jimny SN415
• 2010 Suzuki Jimny SN415
• 2011 Suzuki Jimny SN415
• 2012 Suzuki Jimny SN415
• 2013 Suzuki Jimny SN415
• 2014 Suzuki Jimny SN415
• 2015 Suzuki Jimny SN415
• 2016 Suzuki Jimny SN415
