Trail-Gear Samurai 4.90:1 T-Case Gear Set

Samurai 4.90 T-Case Gear Set

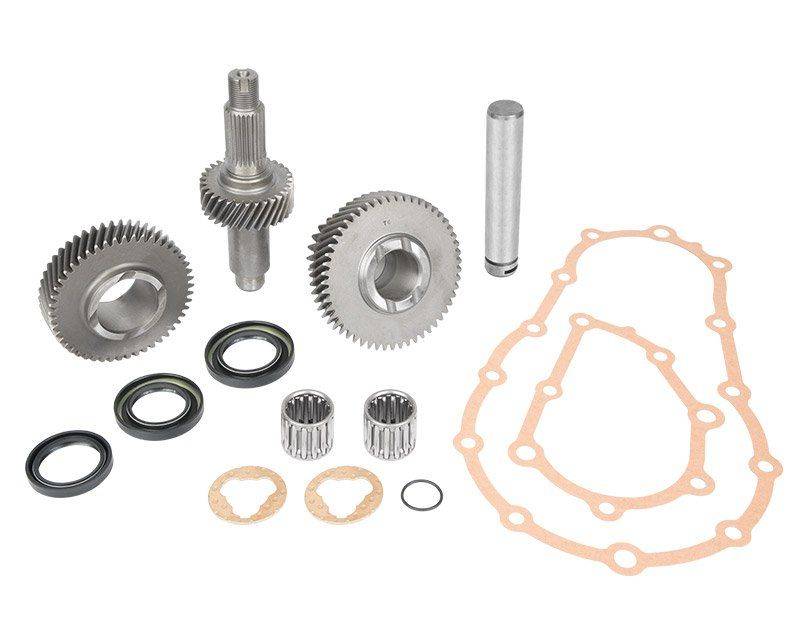

Low range gears are critical for technical off-road driving. Our Samurai low range gear kit is the highest quality gear set available. Low Range reduction is 4.90:1 (115% low range reduction). High range reduction is 16%. No welded or second rate, gears here. These are strong, run quiet and take a huge amount of abuse. This complete kit includes four new precision cut gears, counter shaft, needle bearings, shims, o-ring, gaskets, and input/output seals. Heavy duty front output shaft recommended. Minor grinding of case is necessary for installation.

Note: The recommended tire size for the 4.90 gears is 30"-31"

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specifications:

• Low Range reduction is 4.90 to 1 (115% low range reduction). High Range reduction is 16%
• Includes new precision cut gears, counter shaft, needle bearings, shims, o-ring, gaskets, and input/output seals
• Heavy Duty Samurai T-Case Output Shaft recommended
• Made out of Japanese SCM415 alloy for its greate strength and wear resistance
• SCM415 outperforms the 8620 material in yield and ultimate tensile strength

Application Data

• 1986-1995 Suzuki Samurai
