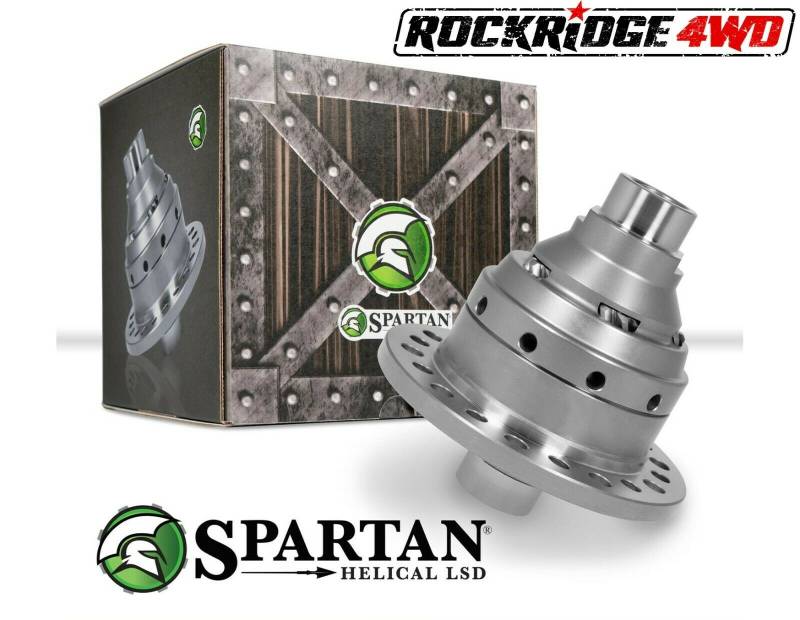

Spartan Helical Gear Positraction For Jeep Dana 30 Front 27 Spline | 3.73 & UP

When wheel slippage occurs, the Spartan Helical LSD’s pre-loaded worm gears funnel more power to the tire with the best traction. This 10-pinion design has a strength advantage over an equivalently sized 6-pinion or 8-pinion unit because it has more points of contact and more surface contact area to deliver optimal load distribution. Built tough, the Spartan Helical LSD is a fully assembled unit featuring a forged 8620 chromoly case and stout 8620 chromoly alloy internals for superior durability.

• 27 spline, 3.73-and-up ratio
• Fits Dana 30 front differentials
• Forged 8620 steel alloy case and internals for superior durability
• Maintenance free, no worry performance
• Recommended gear oil: Non-synthetic 80W-90 GL-5
• Smooth engagement and linear traction
• Use of friction modifiers not recommended

Technical Notes: Fits 3.73 and Up gear Ratio, (also 3.45 & Up Ratio on 2018+ Jeep Wrangler JL D30)

This unit would be comparable to an Eaton Truetrac or similar Torsen Style limited slip differentials with the main difference being the number of gears(pinions) internally.

COMPATIBLE DIFFERENTIALS

• Dana 30 Front, Crush Sleeve Design, Grand Cherokee
• Dana 30 Front, Standard Rotation
• Dana 30 Front, JK Non-Rubicon
• Dana "Super" 30, Jeep & Chrysler Front
• Dana "Super" 30 Ford Front
• Dana 30 Front, Crush Sleeve Design, TJ Wrangler
• Dana 30 Front, Reverse Rotation
• Dana 30 / 186mm Front, Jeep JL
