BDS 3.5" Coilover Lift Kit | 2019+ Ford Ranger 4WD

BDS Suspension adds new 3.5" coilover lift systems designed to take advantage of the stout factory front suspension design on the 2019-2020 Ford Ranger.

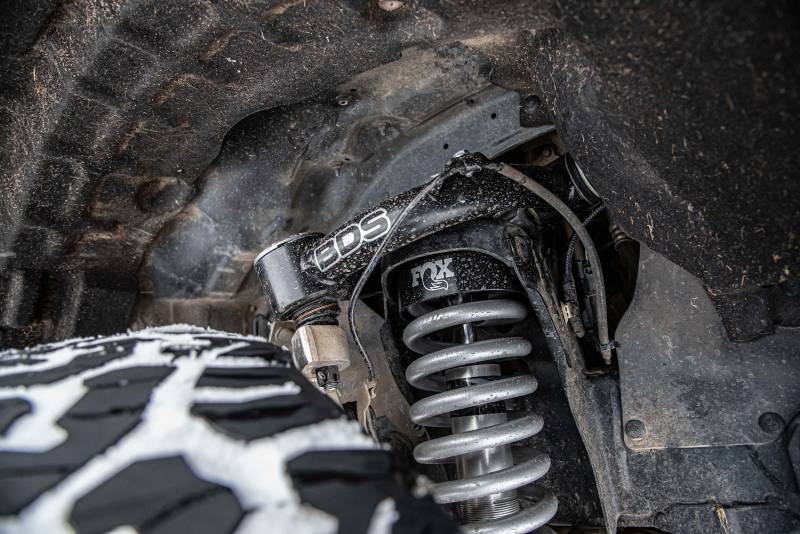

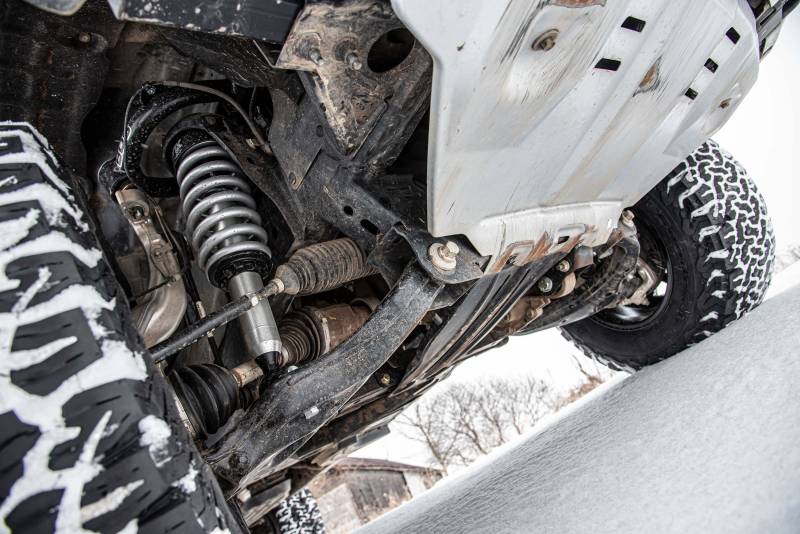

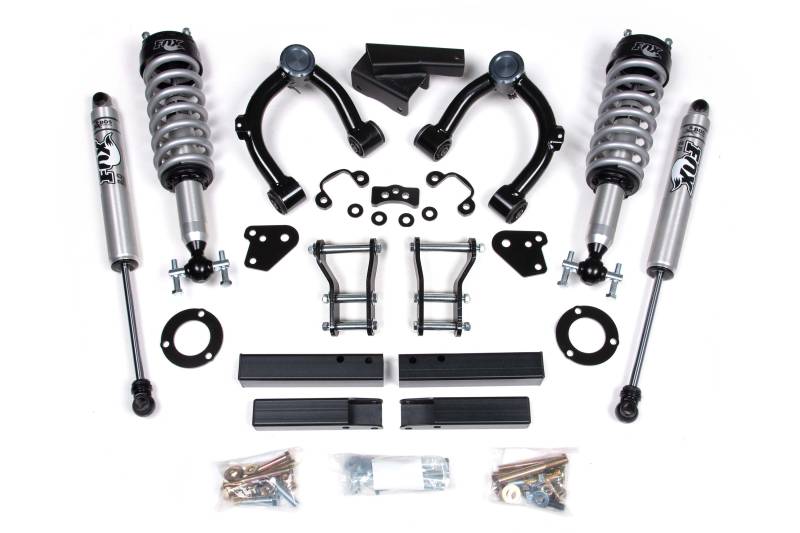

At the heart of these 3.5" coilover systems are a pair of specially tuned FOX 2.0 performance series coilovers. These non-reservoir coilovers are preset for the correct lift height right out of the box and use a threaded body to allow preload adjustment. They are a direct bolt-in replacement for the factory strut assemblies and improve damper performance featuring a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat treated alloy shaft all preloaded with coil springs ready for easy installation.This kit takes perfomrance for the next level by upgrading to FOX 2.0 performance series. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Built from thick wall 1.5" DOM tubing, these UCAs utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims. Finishing out the front of these 3.5" systems are fully fabricated differential relocation brackets to correct CV axle operating angles.

In the rear of these lift systems the factory leaf springs are retained and 1" lift comes from a heavy duty replacement shackle. These shackles are built from high strength 3/8" steel and have the benefit of leveling the stance, correcting rear pinion angle and allowing for increased rear suspension travel. Also supplied for the rear of these 3.5" lift kits are a pair of FOX 2.0 IFP performance series gas shocks to match the front performance. All kits come finished in a durable black e-coat finish and sent with all hardware packs to complete the install along with step-by-step installation instructions.

As with all BDS lift kits, these new kits are backed by Factory Protection Plus for piece of mind wherever your adventures may take you. Factory Protection Plus includes BDS's exclusive No Fine Print Warranty, ESC system compatibility and a 5-year 60,000-mile drivetrain warranty.

Important Kit Notes

• 1. Aftermarket wheels must have a minimum of 93.1mm center hub bore.
• 2. Tires larger than 285/70r17 or 285/65r18 cannot be installed on factory wheels due to steering knuckle clearance.
• 3. Will NOT work on trucks equipped with cast steel steering knuckles

• Tire & Wheel Combinations
• 275/65r w/20x9 and 6.18" back spacing
• 285/66r w/18x9 and 5.5-5.75" back spacing
• 305/55r w/20x9 and 5" back spacing

*Trimming may be required*

• Est. Installation: 4 hours
• Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

• 2019 Ford Ranger 4WD
• 2020 Ford Ranger 4WD

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
