ROUGH COUNTRY 3.5 INCH LIFT KIT CHEVY SILVERADO 1500 2WD/4WD (2019-2024)

RC-29531
Pricing: $649.95

Customize Your Item

- Control Arm Finish -
 * required
- Factory Rear Spring Type -
 * required
- Select Configuration -
 * required
Qty:
Free Shipping

Description

GM’s 2019 silverado and sierra features an impressive all-new design that’s built from the ground up, with aggressive angles and head-turning stylings. Put the finishing touch on your truck with Rough Country’s 3.5in Upper Control Arm Suspension Lift!

Rough Country's 3.5in lift features a set of forged aluminum upper control arms to provide the correct suspension geometry in our most durable control arm to date!

This perfect-height lift is a great choice for anyone who wants more than a simple level but doesn’t quite want the full height of a 6-inch option. This kit lifts and levels the front of the vehicle with the rear, offering enough increased ground clearance to run up to 295/55R20 tires with an improved, aggressive look.

This kit includes Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. Features natural rubber bushings and an eye-catching metallic silver paint.

This kit also features upgraded ball joints that are easy to install and maintenance free. These POM ball joints offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design. Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment. Includes a Lifetime Replacement Guarantee!

FEATURES

    • Lifts and levels front of vehicle with rear
    • Front Lift: 3.5in
    • Rear Lift: 2.5in
    • Increased ground clearance.
    • Includes forged aluminum control arms
    • Control arms include POM ball joints for greater range of motion and easier installation
    • Ball joints are pre-installed to ease installation.
    • Fabricated lift blocks are stronger and offer a longer lifespan than cast blocks.
    • Features application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.



OPTIONAL N3 LOADED STRUTS



  • Includes pre-loaded coil
  • Maintains smooth, factory-like ride
  • Increased ground clearance
  • Engineered for lifted applications
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Massive 1 3/8in Bore
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

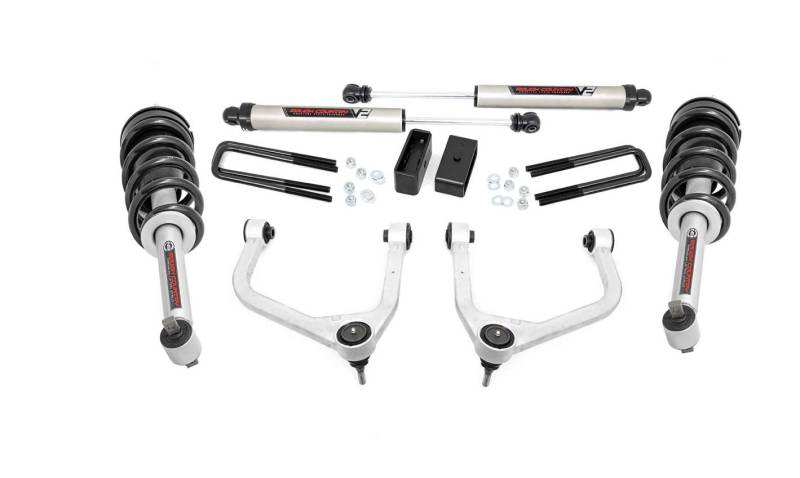

OPTIONAL V2 MONOTUBE SHOCKS



  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

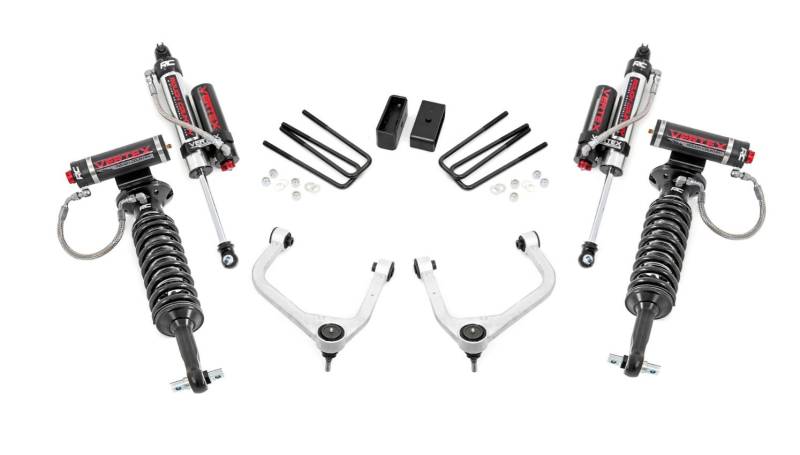

OPTIONAL VERTEX



  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty



NOTES - IMPORTANT

  • Fits crew cab, short bed models only
  • Does NOT fit 2019 "Classic" models (2018 body style)
  • Does NOT fit Chevy Trailboss models.
  • Does NOT fit GMC AT4
  • Does NOT fit models with Adaptive Ride Control
  • Strut replacement options will not work on diesel models

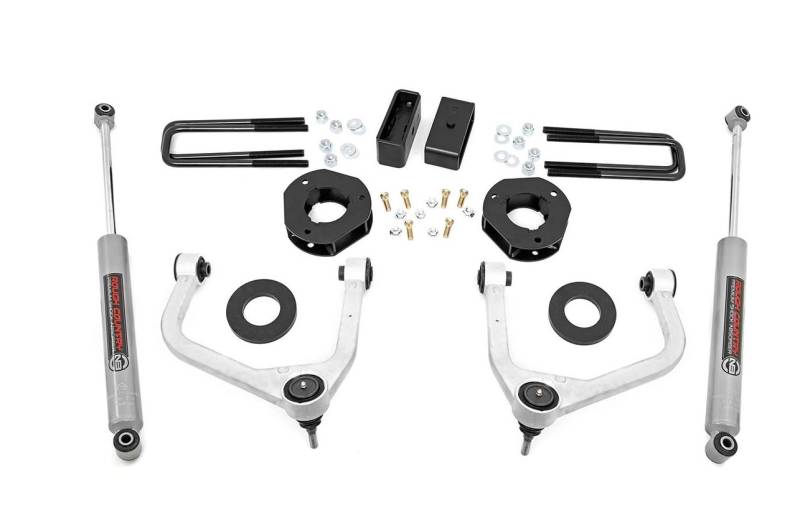

FRONT
  • Strut spacers
  • Forged aluminum upper control arms
  • Upper POM ball joints
  • Hardware
REAR
  • 2.5in fabricated lift blocks
  • U-bolts
  • Hardware
SHOCKS
  • (2) Rear Premium N3 series - V2 or Vertex available in options above!
Est. Install Time 5-6 hours
2019-2022 2WD Chevy Silverado 1500
2019-2022 4WD Chevy Silverado 1500
2019-2022 2WD GMC Sierra 1500
TIRE WHEEL BOLT PATTERN OFFSET NOTE
285/60R20 Factory 20 6x5.5 - -
295/55R20 Factory 20 6x5.5 - 0.25" Spacer
285/45R22 Factory 22 6x5.5 - -
285/55R20 20x9 6x5.5 -12 -
285/55R20 20x9 6x5.5 +0 -
285/55R20 20x9 6x5.5 +1 -
285/55R20 20x9 6x5.5 +18 -
285/55R20 20x9 6x5.5 +20 -
285/55R20 20x9 6x5.5 +1 -
295/55R20 20x9 6x5.5 -12 -
295/55R20 20x9 6x5.5 +0 -
295/55R20 20x9 6x5.5 +1 -
295/55R20 20x9 6x5.5 +18 -
295/55R20 20x9 6x5.5 +20 -
305/55R20 20x9 6x5.5 +0 -
305/55R20 20x9 6x5.5 +1 -
305/55R20 20x9 6x5.5 +18 -
305/55R20 20x9 6x5.5 +20 -
