BDS 6" SUSPENSION FOR 2019-2023 Chevy / GMC 1/2 Ton Truck 4WD Denali | Adaptive Ride Control Equipped Models Only

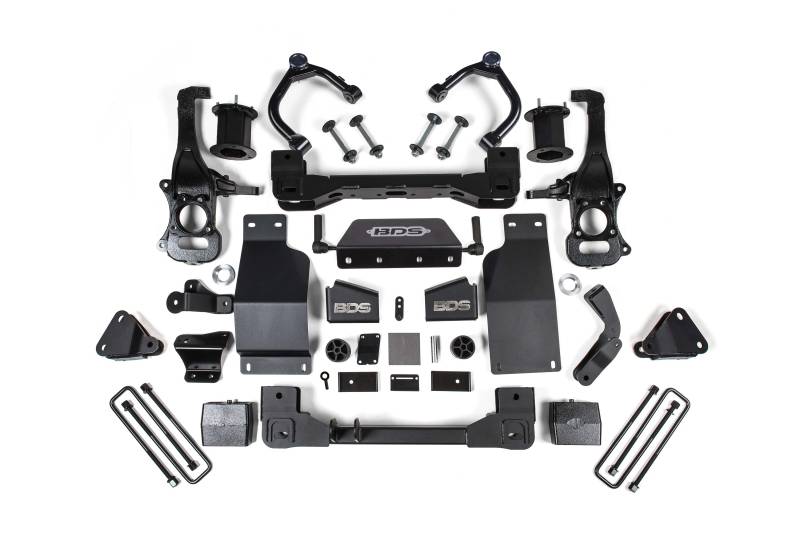

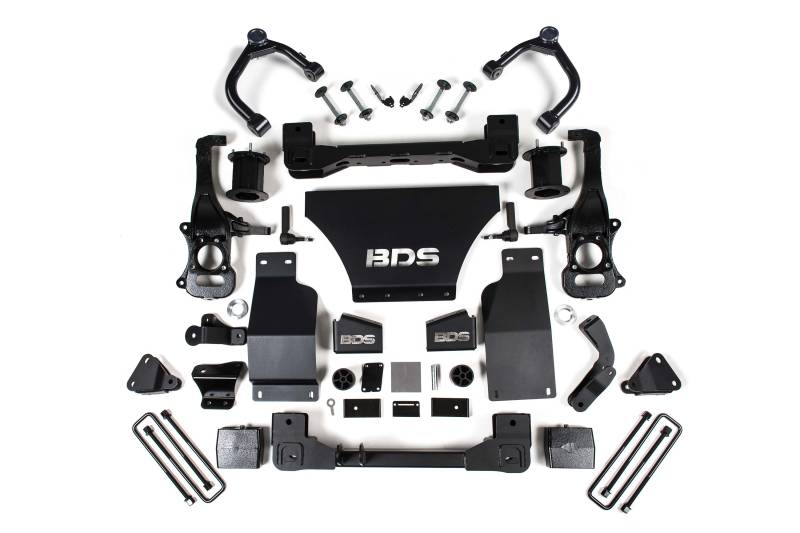

These 6" kits come complete with everything you need to properly lift your GMC Denali while retaining full functionality of the ARC (adaptive ride control) system. The goal with these kits is to build off the factory steering and suspension geometry to offer the optimized strength, safety, and performance you've come to expect from BDS Suspension. Parts list includes high strength 1/4" steel crossmembers, precision machined ductile iron steering knuckles, heavy duty tie rod ends, multipoint differential drop brackets, front and differential skid plates, performance series upper control arms, top mounted strut spacers, sway bar relocation, brake line relocation, front ARC sensor bracket relocation, rear block kit and rear ARC shock relocation brackets. Kits allow compatibility with more tire/wheel options than other lift kits on the market. These systems are not only built for daily driving, but will handle most any offroad excursion you want to tackle and provide extra ground clearance and heavy duty skid plates. Take your Denali to the next level with BDS.

As with all BDS lift kits, these new Adaptive Ride Control compatible lift kits are backed by Factory Protection Plus for piece of mind wherever your adventures may take you. Factory Protection Plus includes BDS's exclusive No Fine Print Warranty, FMVSS No.126 ESC System compatibility and a 5-year, 100,000-mile drivetrain warranty.

Important Kit Notes

• 1. Requires frame bracket modification
• 2. Designed to fit Adaptive Ride Control equipped trucks only
• 3. Will NOT work with Trail Boss or AT4 models
• 4. Will NOT work with 2019 1500 Classic models
• 5. Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled
• 6. 17" Wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod.
• 7. All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
• 8. 2.7L models use Diesel kit for proper skid plate fitment

• Tire & Wheel Combinations
• 295/70r17 w/17x9 / 18x9 and 4.5" back spacing
• 295/65r18 w/20x9 and 4.5-6.25" back spacing
• 35x12.50 w/20x9/22x9 and 5.5-6.5" back spacing

*Trimming may be required*

• Est. Installation: 8 hours
• Difficulty Level (easy 1 - 5 complicated): 4

Vehicle Fitment Information

• 2019 Chevy / GMC 1/2 Ton Truck 4WD Denali w/ ARC
• 2020 Chevy / GMC 1/2 Ton Truck 4WD Denali w/ ARC
• 2021 Chevy / GMC 1/2 Ton Truck 4WD Denali w/ ARC
• 2022 Chevy / GMC 1/2 Ton Truck 4WD Denali w/ ARC

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
