BDS 6" Lift Kit FOR 2019-2023 Chevy / GMC 1/2 Ton Truck 4WD

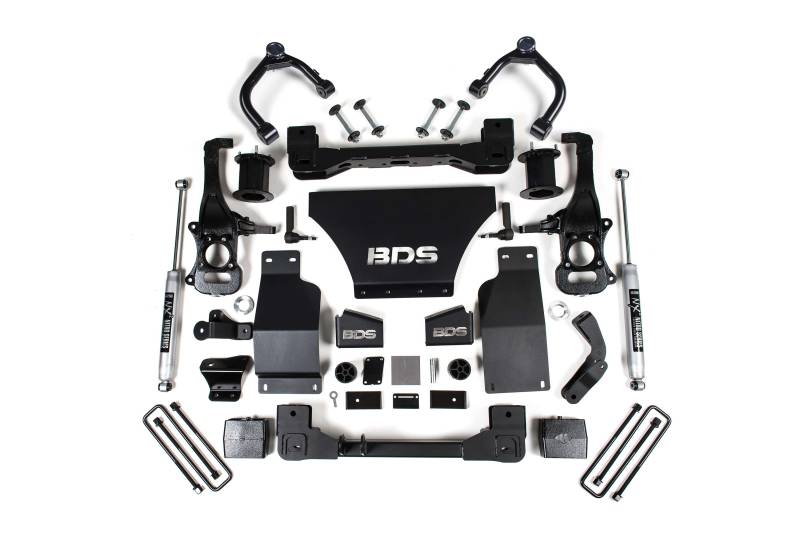

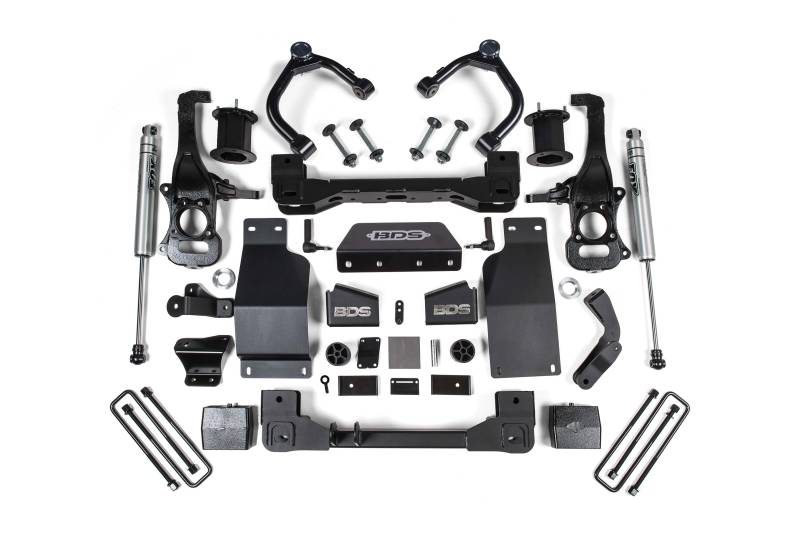

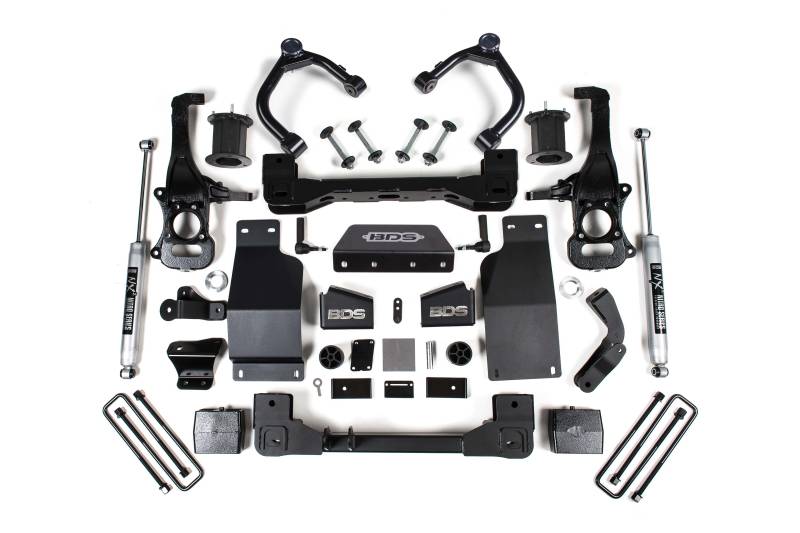

These 6" kits come complete with everything you need to properly lift your truck and allow clearance for 35-37" tires. The goal with these kits is to build off the factory steering and suspension geometry to offer the optimized strength, safety, and performance you've come to expect from BDS Suspension. Parts list includes high strength 1/4" steel crossmembers, precision machined ductile iron steering knuckles, heavy duty tie rod ends, multipoint differential drop brackets, front and differential skid plates, performance series upper control arms, top mounted strut spacers, sway bar relocation, brake line relocation, rear block kit and your choice of gas shocks. Kits allow compatibility with more tire/wheel options than other lift kits on the market. These systems are not only built for daily driving, but will handle most any offroad excursion you want to tackle and provide extra ground clearance and heavy duty skid plates. Take your GM truck to the next level with BDS. As with all BDS lift kits, these new 6" lift kits are backed by Factory Protection Plus for piece of mind wherever your adventures may take you. Factory Protection Plus includes BDS's exclusive No Fine Print Warranty, FMVSS No.126 ESC System compatibility and a 5-year, 100,000-mile drivetrain warranty.

Important Kit Notes

• 1. Requires frame bracket modification
• 2. Will not fit MagneRide / Adaptive Ride equipped models
• 3. Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled.
• 4. 17" Wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod.
• 5. All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
• 6. Will NOT work with TrailBoss or AT4 models.
• 7. Will NOT work with 2019 1500 Classic models.
• 8. Front skid plate will not work with 2.7L Turbo Engines.

Vehicle Fitment Information

• 2019 Chevy / GMC 1/2 Ton Truck 4WD Silverado / Sierra
• 2020 Chevy / GMC 1/2 Ton Truck 4WD Silverado / Sierra
• 2021 Chevy / GMC 1/2 Ton Truck 4WD Silverado / Sierra
• 2022 Chevy / GMC 1/2 Ton Truck 4WD Silverado / Sierra

• 2023 Chevy / GMC 1/2 Ton Truck 4WD Silverado / Sierra

For additional tire & wheel combinations refer to the instruction sheet

• Tire & Wheel Combinations
• 37"x12.50" w/20x9 (Chevy) and 5.5"-6.25" back spacing
• 35"x12.50" w/20x9 (Chevy) and 4.5"-6.25" back spacing
• 35"x12.50" w/20x9 (GMC) and 5.5"-6.25" back spacing

*Trimming may be required*

• Est. Installation: 8 hours
• Difficulty Level (easy 1 - 5 complicated): 4

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
