BDS 2.5" Coilover Lift Kit FOR 2019-2023 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss or GMC AT4

2.5" High Clearance Coilover Systems for Chevy Trail Boss or GMC AT4.

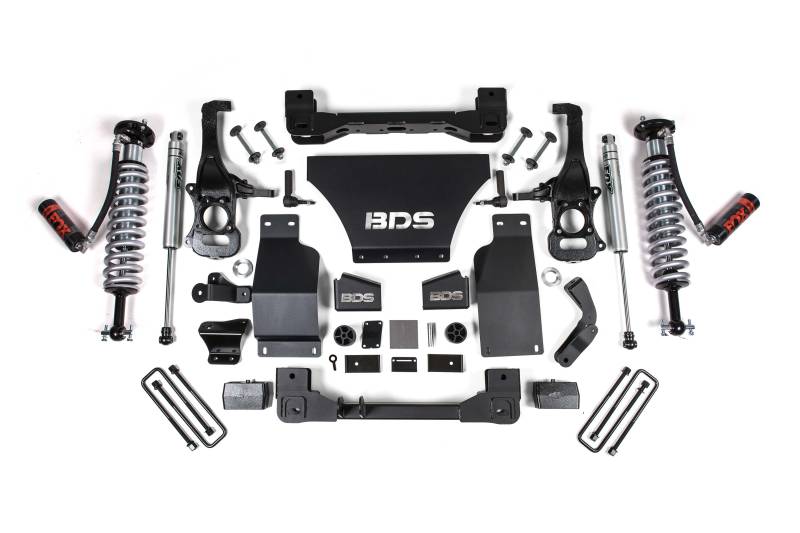

If you're looking to optimize performance and capability this 2.5" coilover system is for you. While these kits net 2.5" of lift on a Trail Boss/AT4, ride height is similar to a 4" lift on a standard GM1500 truck. Building on the tried-and-true BDS high clearance design these kits maintain on-road handling and performance while upping the ante with FOX 2.5 factory race series remote reservoir coilovers for truly next level performance on any terrain. These coilovers are available in standard or DSC (dual speed compression) adjustable versions and pair with a set of FOX 2.0 IFP performance series rear shocks. Additionally high strength 1/4" steel crossmembers, precision machined ductile iron steering knuckles, heavy duty tie rod ends, multipoint differential drop brackets, front and differential skid plates, performance series upper control arms, sway bar relocation, rear block kit and brake line relocation brackets come together to form a quality systems designed to enhance your late model GM truck with clearance for up to 35" tires.

All BDS kits include Factory Protection Plus for the ultimate extended warranty to include BDS's No Fine Print Warranty, FMVSS No.126 (ESC System) compliance certification and a 5year-100mile drivetrain warranty to match the dealer.

Vehicle Fitment Information

• 2019 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4
• 2020 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4
• 2021 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4
• 2022 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4
• 2023 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4

• Tire & Wheel Combinations
• 35x12.50 w/20x9/22x9 and 5.5-6.25" back spacing
• 33x12.50 w/20x9/22x9 and 4.5-5" back spacing
• 33x12.50 w/17x9/18x9 and 4.5" back spacing

*Trimming may be required*

• Est. Installation: 8 hours
• Difficulty Level (easy 1 - 5 complicated): 4

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
