BDS 3" Radius Arm Lift Kit for 2019-2021 Dodge / Ram 2500 Truck 4WD w/ Rear Air-Ride | Diesel

Late model Rear Air Ride equipped RAM 2500 4WD Diesel trucks with new 3" Radius Arm Systems

Designed to improve the looks and performance of your new RAM, these kits join existing 2", 4", and 6" options and are offered as a complete system to enhance offroad capability, maintain on-road handling and clear larger wheels/tires.

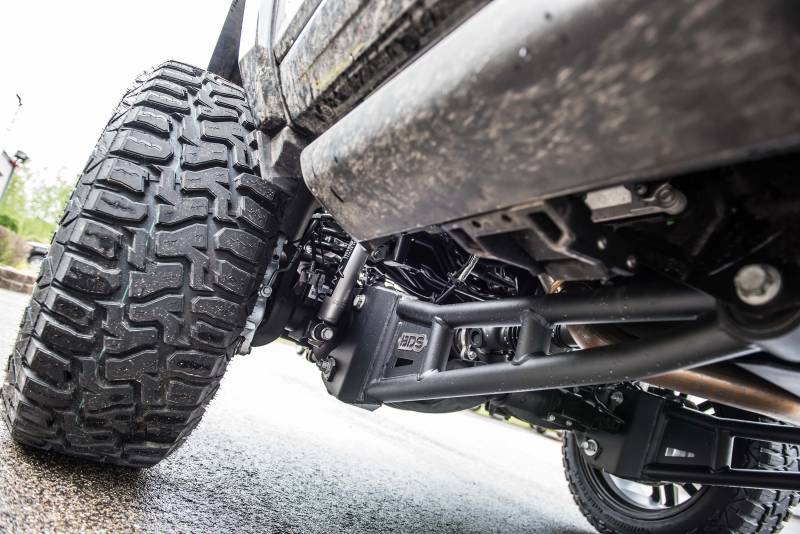

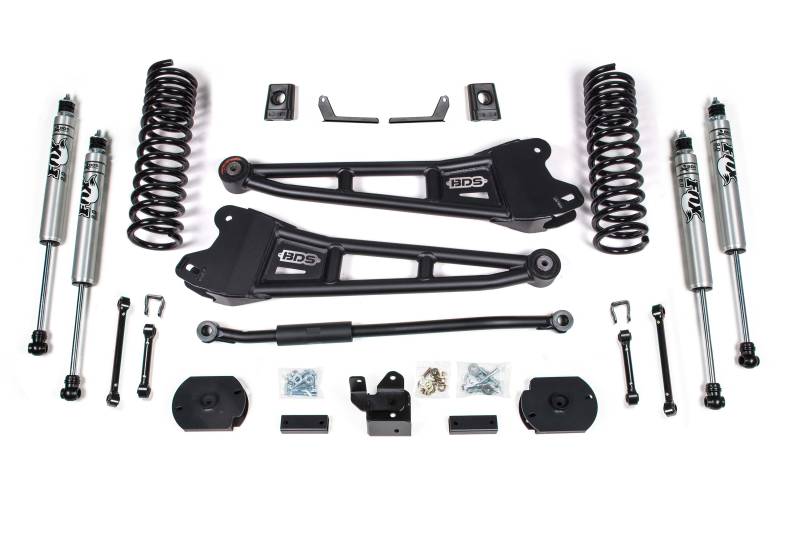

Up front these systems use a pair of (diesel specific) progressive rate 3" coil springs to provide the extra height and offer controlled performance in the harshest of terrains. A high strength adjustable track bar with center pinch-bolt turnbuckle is supplied to re-center the front axle. A pair of extended length sway bar links correct the OE sway bar operating angle for optimal performance along with extended polyurethane bump stops to limit up travel and brake line brackets to allow full droop. To correct the front suspension geometry at the new height a pair of heavy duty replacement radius arms that bolt directly into the factory location. These new radius arms are massive upgrade to the factory stamped units, using tubular construction and a lower cam adjustment to dial in front end caster. Also supplied are your choice of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks for improved ride and performance.

In the rear, heavy duty air bag spacer brackets are used to level the stance along with a rear track bar bracket to correct axle positioning, extended length sway bar links, and bump stop extensions. BDS supplies new air ride leveling sensor brackets to position the ride height sensors at the stock angle. This allows the rear suspension to be perform just like it does at factory ride height and maintain full air bag range of motion. The rear suspension is rounded out with your choice of NX2 series or FOX 2.0 shocks. As with all BDS Suspension kits these include Factory Protection Plus for a limited lifetime warranty, ESC System compatibility, and 5-year, 100,000-mile drivetrain warranty. Get the look and the ride you are after with these new 3" radius arm systems from BDS Suspension.

Important Kit Notes

• Designed for rear air-ride equipped models only
• For use on diesel models only
• Not for use on Power Wagon models

• Tire & Wheel Combinations
• 35x12.50 w/17x9 and 4.5-5" back spacing
• 35x12.50 w/20x9 and 4.5-5" back spacing
• 35x12.50 w/20x9 and 4.5-5" back spacing

*Trimming may be required*

• Est. Installation: 5 hours
• Difficulty Level (easy 1 - 5 complicated): 3

• • Vehicle Fitment Information

    • 2019 Dodge / Ram 2500 Truck 4WD w/ Rear Air-Ride
    • 2020 Dodge / Ram 2500 Truck 4WD w/ Rear Air-Ride
    • 2021 Dodge / Ram 2500 Truck 4WD w/ Rear Air-Ride

  • BDS Suspension Lift Kit Warranty



    All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

    If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
