ROUGH COUNTRY 4 INCH LIFT KIT X-SERIES | JEEP WRANGLER JK 2WD/4WD | 4 DOOR (2007-2018)

(0) Reviews: Write first review
RC-67430
Pricing: $1,399.95

Customize Your Item

- Shock Series -
 * required
Qty:
Free Shipping

Description

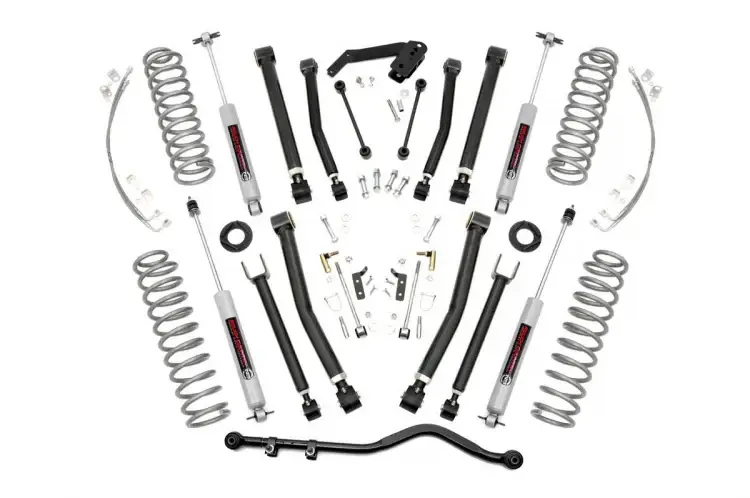

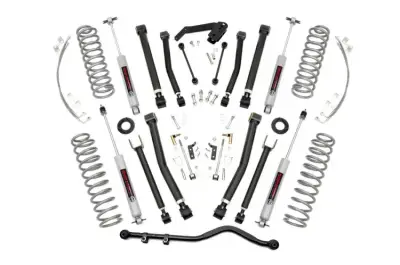

Give your Jeep a total transformation with Rough Country’s 4in X-Series Suspension Lift. This all-inclusive kit comes with everything you need to give your vehicle aggressive good looks and improved off-road performance!

This kit features a set of front and rear upper and lower adjustable control arms with a high-clearance design, allowing you to dial in the exact ride you desire! Each kit also comes with lifted coil springs and coil correction plates, providing lift height and impeccable vibration dampening on any terrain.

For those who are serious about flexing, crawling, and pushing your Jeep to the limits, this kit features an upgraded Forged Adjustable Track Bar. Made of forged steel, this 16lb Track Bar boast a beefy construction that will dwarf stock equipment. Easy to install and fully adjustable on the vehicle.

Best of all, this kit features Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. Features natural rubber bushings and an eye-catching metallic silver paint.

FEATURES

    • Easy bolt-on installation
    • Increased ground clearance
    • Levels the front with the rear of the vehicle
    • Front adjustable track bar is made of forged solid steel for unsurpassed strength and durability
    • Coil correction plates correct the rear coil spring angle by 10 degrees, allowing them to function more effeciently.
    • Includes our Premium N3 shock absorbers.
    • X-Flex control arm features:
      • Clevite brand OEM style rubber bushings.
      • Flex joints feature a massive 2.5" diameter body and 1.25" thread.
      • Fully greasable.



OPTIONAL N3 SHOCKS



  • 10-Stage Variable Valving
  • High Pressure Nitrogen Charged
  • 35mm Piston
  • Military Spec. Fluid Rated To –40° C
  • 36kN Tensile Strength
  • Leak-proof piston seal
  • Spring Loaded Piston Rod Seal
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

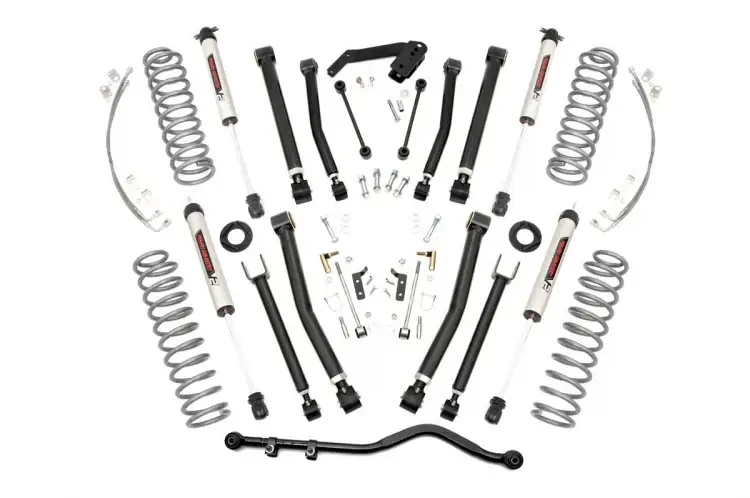

OPTIONAL V2 MONOTUBE SHOCKS



  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

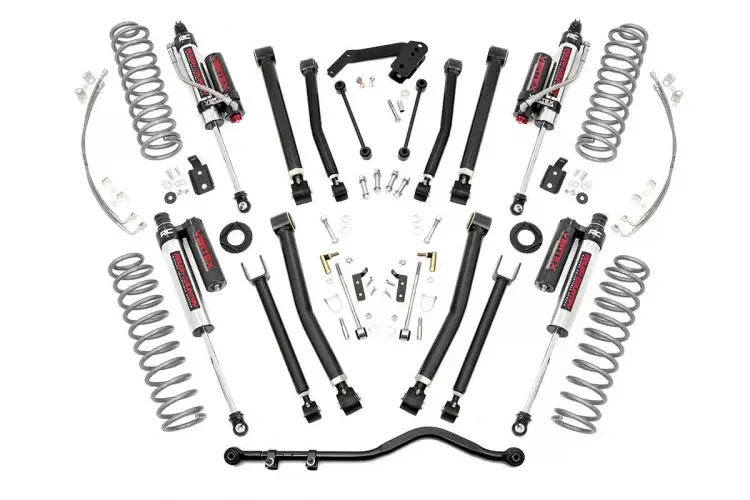

OPTIONAL VERTEX SHOCKS



  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty



NOTES - IMPORTANT

  • Does NOT fit 2-door models.
  • 2012-2018 models require exhaust modifications to clear the front driveshaft SKU: 1030.
  • On Automatic equipped vehicles; due to use of an oversize driveshaft from the factory and inadequate factory clearance it may be possible for the front driveshaft to come in contact with the automatic transmission pan tearing the factory boot and rubbing on the shaft. Generally this occurs during heavy articulation when front sway bar links are disconnected and longer shocks are installed. If this is found to occur, the proper procedure would be to replace the oversize factory shaft with an aftermarket smaller diameter shaft to increase clearance between the transmission and front driveshaft. Rough Country does offer this driveshaft if needed.
FRONT
  • Lifted coil springs
  • Upper adjustable control arms
  • Lower adjustable control arms
  • Sway-bar quick disconnects
  • Forged adjustable track bar
  • Stainless steel braided brake lines
  • Shock relocation brackets
  • Hardware
REAR
  • Lifted coil springs
  • Upper adjustable control arms
  • Lower adjustable control arms
  • Coil correction plates
  • Track bar drop bracket
  • Extended sway-bar links
  • Stainless steel braided brake lines
  • Hardware
SHOCKS
  • (4) Premium N3 Series
Est. Install Time 4-6 hours
2007-2010 2WD Jeep Wrangler JK Unlimited
2007-2018 4WD Jeep Wrangler JK Unlimited
35x12.50R17 17x9 5x5.0 +0 -
35x12.50R17 17x9 5x5.0 +1 -
35x12.50R17 17x9 5x5.0 -12 -
35x12.50R17 17x9 5x5.0 -6 -
35x12.50R18 18x9 5x5.0 +0 -
35x12.50R18 18x9 5x5.0 +1 -
35x12.50R18 18x9 5x5.0 -12 -
35x12.50R18 18x9 5x5.0 -6 -
35x12.50R20 20x9 5x5.0 +0 -
35x12.50R20 20x9 5x5.0 +1 -
35x12.50R20 20x9 5x5.0 -12 -
35x12.50R20 20x9 5x5.0 -6 -
35x12.50R18 18x10 5x5.0 -6 -18
35x12.50R18 18x10 5x5.0 -19 -
35x12.50R20 20x10 5x5.0 -6 -18
35x12.50R20 20x10 5x5.0 -19 -
35x12.50R22 22x10 5x5.0 -6 -18
35x12.50R22 22x10 5x5.0 -19 -
