ROUGH COUNTRY 5 INCH LIFT KIT RAM 2500 4WD (2019-2022)

RC-36030
Pricing: $1,499.95

Customize Your Item

- Select Configuration -
 * required
Qty:
Free Shipping

Description

Compliment your RAM 2500's aggressive, good looks with Rough Country's new 5-inch Lift Kit with lifted coil springs. New model RAM Trucks come with a wealth of impressive features right from the factory. Rough Country's new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where it's needed most. The result is a lifted beast with a mean profile and lush ride-quality that'll make other RAM owners wonder where you got yours from!

When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 5-inch Suspension kit features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. These beefy, upgraded Radius Arms also feature a durable, Clevite Rubber Bushing for maximum vibration absorption. This kit also includes a skid plate and a set of front, lifted coil springs for unparalleled ride quality from your lifted Dodge Ram. This kit also features an option upgrade for Dual Rate front and rear coils - Dual Rate coil springs combine a relatively low initial spring rate, designed to absorb minor undulations and increase grip with a secondary higher spring rate to improve handling and driveability.

FEATURES

  • Increased ground clearance
  • Track bar bracket keeps the front axle properly centered
  • Radius Arms offer a more factory-like angle and feature a durable, Clevite
  • Rubber Bushing for maximum vibration absorption
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

NOTES - IMPORTANT

  • Requires removal of Transfer case for clocking ring install for correct front driveline geometry.
  • Does NOT fit 'Power Wagon' models
  • Does NOT fit air ride models.
  • Does NOT models with a manual transfer case.
  • ONLY fits Diesel models
  • Requires minor cutting.
  • On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, this can be corrected with SKU: 1161 carrier bearing shim kit.

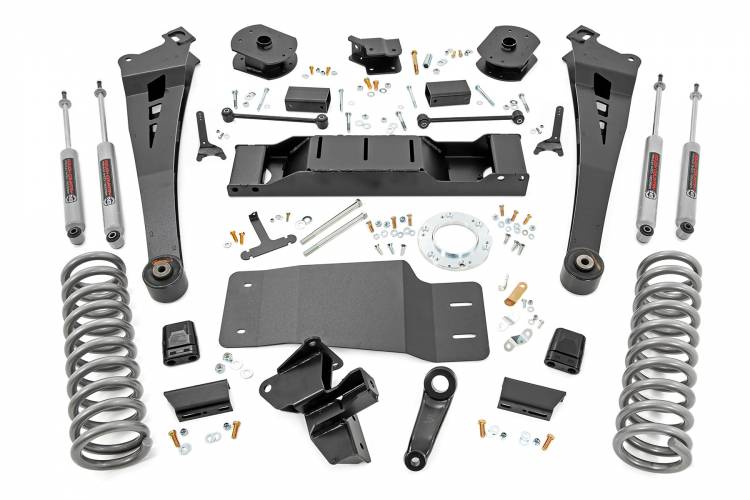

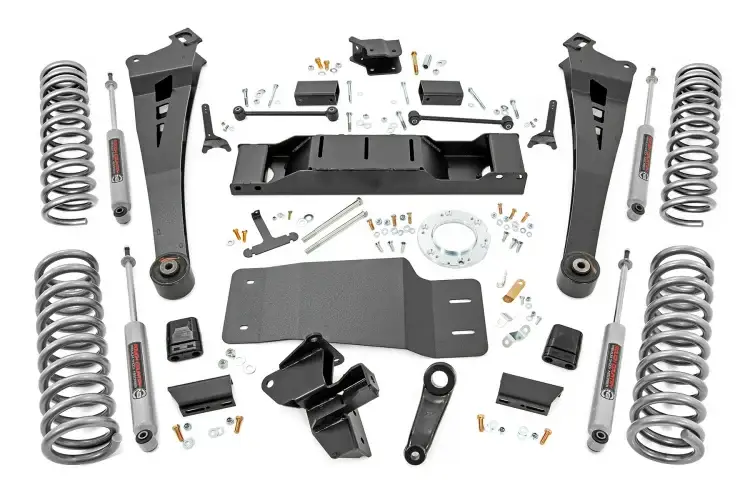

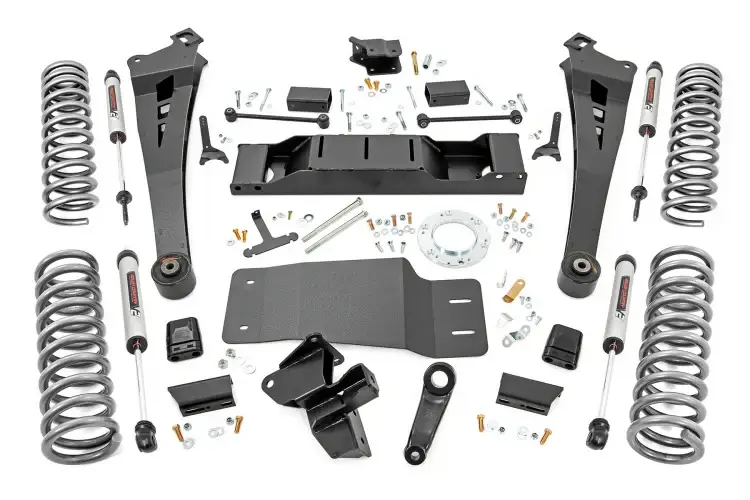

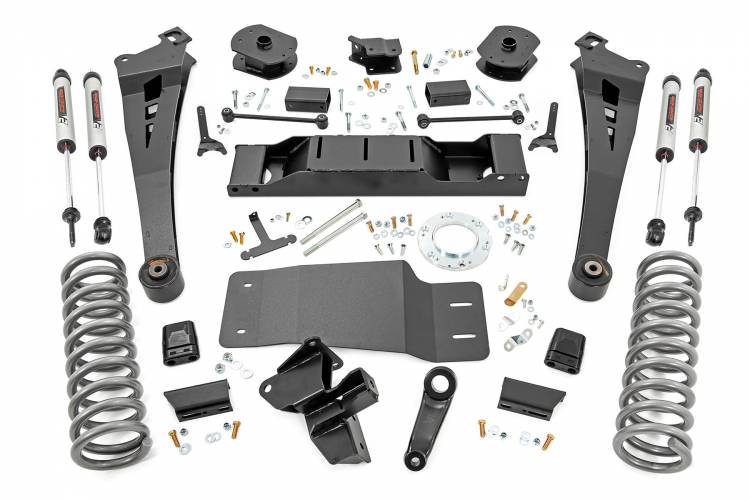

FRONT
  • Lifted Coil springs
  • Radius arms
  • Track bar bracket
  • Bump stops
  • Sway-bar brackets
  • Transmission Crossmember
  • Pitman arm
  • Hardware
REAR
  • Optional: Lifted Coil springs
  • Rear lift spacers
  • Track bar bracket
  • Transfer Case Skid Plate
  • Sway-bar links
  • Bump stop brackets
  • Ride height arms
  • Hardware
SHOCKS
  • (4) Premium N3 Series
Est. Install Time 7-9 hours
2019-2022 4WD Ram 2500
35x12.50R20 20x10 8x6.5 -18 -
35x12.50R20 20x10 8x6.5 -19 -
35x12.50R20 20x10 8x6.5 -24 -
35x12.50R20 20x10 8x6.5 -25 -
35x12.50R22 22x10 8x6.5 -18 -
35x12.50R22 22x10 8x6.5 -19 -
35x12.50R22 22x10 8x6.5 -24 -
35x12.50R22 22x10 8x6.5 -25 -
37x12.50R17 17x9 8x6.5 +0 -
37x12.50R20 20x9 8x6.5 +0 -
37x12.50R20 20x10 8x6.5 -18 Minor Trimming
37x12.50R20 20x10 8x6.5 -19 Minor Trimming
37x12.50R20 20x10 8x6.5 -24 Minor Trimming
37x12.50R20 20x10 8x6.5 -25 Minor Trimming
37x12.50R22 22x10 8x6.5 -18 Minor Trimming
37x12.50R22 22x10 8x6.5 -19 Minor Trimming
37x12.50R22 22x10 8x6.5 -24 Minor Trimming
37x12.50R22 22x10 8x6.5 -25 Minor Trimming
