ROUGH COUNTRY 5 INCH LIFT KIT RAM 3500 4WD (2019-2022)
RC-37530
Was:
$1,549.95
Sale:
$1,299.95
Save:
16%
Save:
$250.00
Description
Compliment your RAM 3500's aggressive, good looks with Rough Country's 5-inch Radius Arm Lift Kit. RAM Trucks come with a wealth of impressive features right from the factory. Rough Country's new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where it's needed most. The result is a lifted beast with a mean profile and lush ride-quality that'll make other RAM owners wonder where you got yours from!
When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's 5-inch Suspension kit features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. These beefy, upgraded Radius Arms also feature a durable, Clevite Rubber Bushing for maximum vibration absorption. This kit also includes a set of front, lifted coil springs for unparalleled ride quality from your lifted Dodge Ram.
FEATURES
- Increased ground clearance
- Track bar bracket keeps the front axle properly centered
- Radius Arms offer a more factory‐like angle and feature a durable, Clevite Rubber Bushings for maximum vibration absorption
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off‐road use.
NOTES - IMPORTANT
- Requires removal of Transfer case for clocking ring install for correct front driveline geometry.
- Does NOT fit 'Power Wagon' models
- Does NOT fit air ride models
- Fits single rear wheel models and dual rear wheel models.
- Rear wheels may require additional dually wheel spacers to run 12.50in wide tire
- ONLY fits Diesel models
- Requires minor cutting.
- On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.

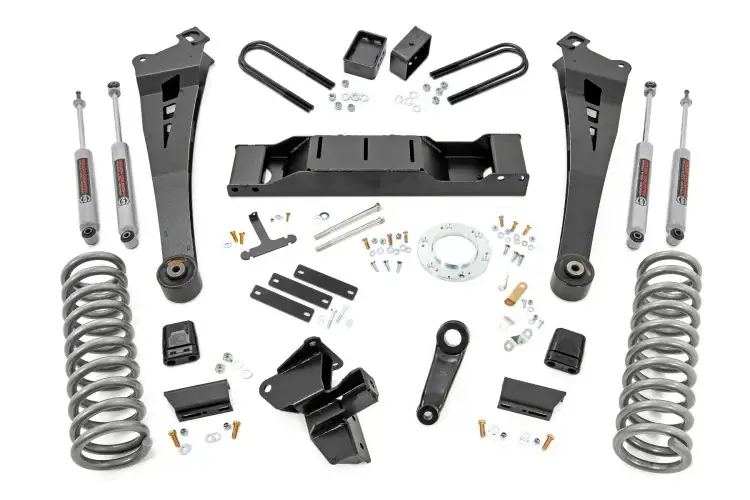

FRONT
- Lifted Coil springs
- Radius arms
- Track Bar bracket
- Transmission crossmember
- clocking ring
- Sway-bar brackets
- Pitman arm
- Carrier bearing shims
- Hardware
REAR
- Rear lift blocks
- U-bolts
- Track bar bracket
- Sway-bar links
- Hardware
SHOCKS
- (4) Premium N3 Series
| Est. Install Time | 6-8 hours |
|---|
| 2019-2022 | 4WD | Ram | 3500 |
| 37x12.50R17 | 17x9 | 8x6.5 | -12 | - |
| 37x12.50R17 | 17x9 | 8x6.5 | +0 | - |
| 37x12.50R17 | 17x9 | 8x6.5 | +1 | - |
| 37x12.50R18 | 18x9 | 8x6.5 | -12 | - |
| 37x12.50R18 | 18x9 | 8x6.5 | +0 | - |
| 37x12.50R18 | 18x9 | 8x6.5 | +1 | - |
| 37x12.50R18 | 18x10 | 8x6.5 | -25 | Minor Trimming |
| 37x12.50R18 | 18x10 | 8x6.5 | -24 | Minor Trimming |
| 37x12.50R18 | 18x10 | 8x6.5 | -19 | Minor Trimming |
| 37x12.50R18 | 18x10 | 8x6.5 | -18 | Minor Trimming |
| 37x12.50R20 | 20x9 | 8x6.5 | -12 | - |
| 37x12.50R20 | 20x9 | 8x6.5 | +0 | - |
| 37x12.50R20 | 20x9 | 8x6.5 | +1 | - |
| 37x12.50R20 | 20x10 | 8x6.5 | -25 | Minor Trimming |
| 37x12.50R20 | 20x10 | 8x6.5 | -24 | Minor Trimming |
| 37x12.50R20 | 20x10 | 8x6.5 | -19 | Minor Trimming |
| 37x12.50R20 | 20x10 | 8x6.5 | -18 | Minor Trimming |
