DANA SPICER AAM 12 Bolt 9.25" 1485 Front Axle U-Joint | 03-09 Dodge Ram Front

DAN5006813
Pricing: $69.99
Qty:

Description

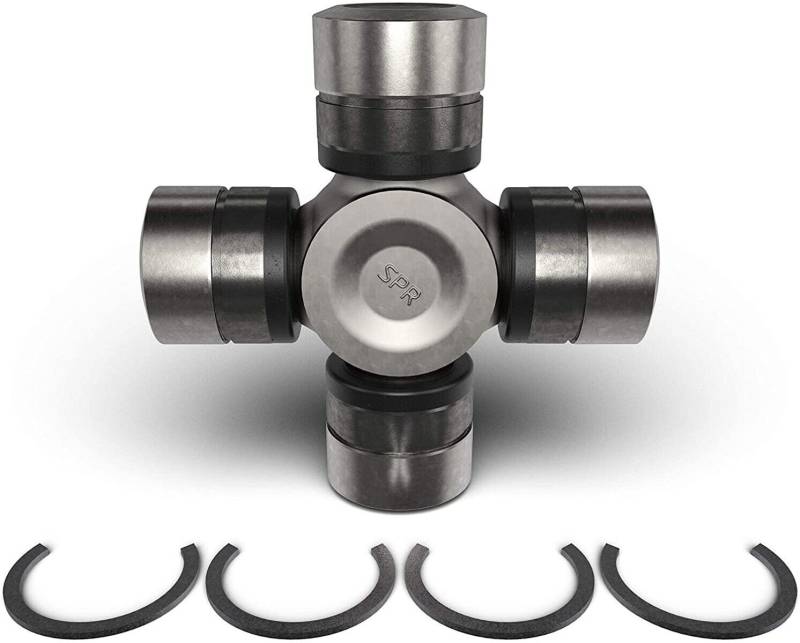

Axle Shaft Universal Joint Non-Greaseable AAM 1485WJ SPL Series ISR

When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

  • Fits 2003 and newer Dodge and GM 1485 series REAR Driveshafts made by AAM American Axle Manufacturing
    • OUTSIDE Snap Rings to be used in 1485 series Driveshafts
    • DOES NOT FIT DANA SPICER 1480 Series DRIVESHAFTS
  • ALSO Fits Dodge 1485 Series 2003 to 2009 RAM 2500 and RAM 3500 4X4 Front Axle Shafts on AAM 9.25 inch Front Differential
    • Comes with INSIDE "C" Clips to be used in 1485 series Front Axles
    • All 4 bearing caps are 1.375 inch diameter with inside "C" Clips to lock the cap in place.
    • 2.920 inches = The span between the yoke inner surfaces where the "C" Clips lock in.
  • OE Part Numbers 05127822AB, 5102157AE
Brand SPL
Greaseable N
Type ISR Style
Invoice U-Joint Kit
OEM Mfg AAM
OEM Series 1485WJ
Bearing Cap Diameter (1) 1.375
Bearing Cap Diameter (2) 1.375
SR(1)Brng Cap to Brng Cap(OSR) 2.920
SR(2)Brng Cap to Brng Cap(OSR) 2.920
VMRS 024002046
Bearing Cap Type Round
Snap Ring Type Internal
Snap Ring Included Y
Material Steel
Model Number AAM 1485WJ
Bearing Cap Finish Ground
Seal Material Rubber
Seal Color/Finish Black
Coating Type None
Pre Greased N
Grease Type N.L.G.I. Grade 2
Grease Zerk Included Not Required
Hardware Included N
Length A (In) 2.92
Length B (In) 2.92
Length A (mm) 74.2
Length B (mm) 74.2
Bearing Cap Type A ISR
Bearing Cap Type B ISR
Bearing Cap Diameter A (mm) 1.375
Bearing Cap Diameter B (mm) 1.375
Package Type EACH
Package Qty 1
Weight 2.51 LB
Country of Origin

 United States
