ROUGH COUNTRY 6 INCH COILOVER CONVERSION LIFT KIT FORD SUPER DUTY (2015-2016)

RC-55158
Pricing: $2,929.95

Customize Your Item

- Select Configuration -
 * required
Qty:
Free Shipping

Description

Explore New Heights. Give your third-generation Ford Super Duty superior lift height with Rough Country's 6-inch Coilover Suspension Lift Kit! This all-inclusive kit comes with everything you need for a total transformation of your truck. Run up to 37in tires while preserving the smooth, factory ride quality with this impressive upgrade.

Durable Components. When changing a vehicle's suspension, the key to preserving ride quality is keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 6-inch Suspension Lift features a set of ultra-durable radius arm drop brackets, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. Utilizing this conversion kit you're removing the factory independent coil shock and coil set-up and replacing it with a massive 2.5in piston, nitrogen-charged, 8-stage adjustable Vertex Coilover. Rough Country’s Vertex Coilovers feature a monotube design with an external reservoir for increased oil capacity and damping sensitivity. When it comes to investing in a high-end kit, you’ll be pleased to find that Rough Country’s 2.5in piston design is beefier and offers an impressive 56% greater fluid capacity than the average reservoir shock. Each kit is paired with a monotube shock that provides optimal damping control.

Installation. Requiring cutting and drilling to install, an estimated timeframe of 6-10 hours is recommended to complete this full installation. This full kit can be installed at home and can be completed efficiently and quickly!

Limited Lifetime Replacement Warranty. Rough Country's 6-inch Coilover Suspension Lift Kit is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!

FEATURES

  • Easy bolt-on installation.
  • Increased ground clearance.
  • Levels the front with the rear of the vehicle.
  • Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
  • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
  • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.

NOTES - IMPORTANT

  • Does NOT F-350 models.
  • Does NOT fit dually models.

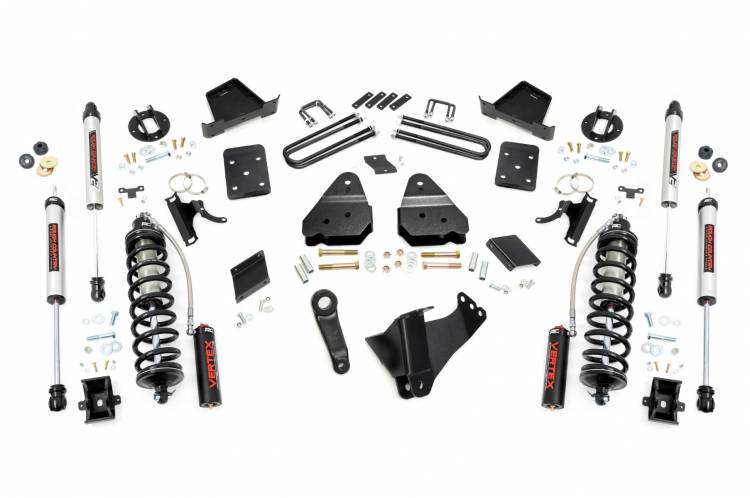

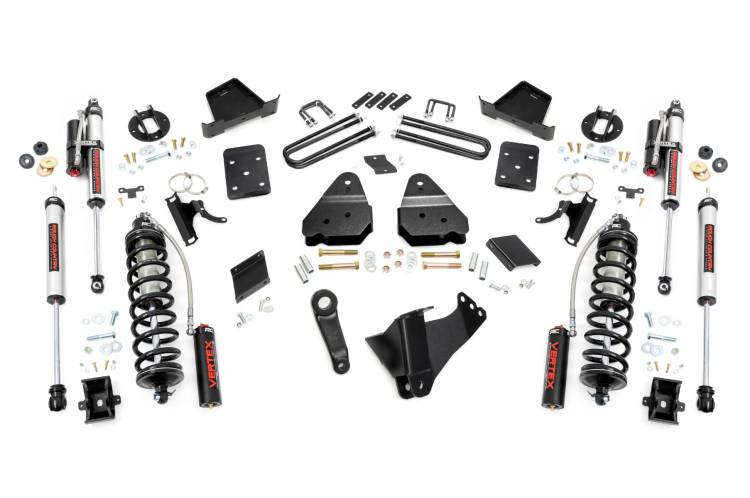

FRONT
  • Vertex Coilovers
  • Radius Arm Drop Brackets
  • Sway-Bar Drop Brackets
  • Track Bar Drop Bracket
  • Stabilizer Relocation Brackets
  • Pitman Arm
  • Brake Line Brackets
  • Bumpstop Spacers
  • Hardware
REAR
  • Fabricated Anti-Wrap Lift Blocks
  • Carrier Bearing Drop Bracket
  • Brake Line Brackets
  • U-Bolts
  • Hardware
SHOCKS
  • (2) Rear V2 Monotube Shocks
Est. Install Time 6-10 hours
2015-2016 4WD Ford F-250 Super Duty
37x12.50R17 17x9 8x170 -12 -
37x12.50R17 17x9 8x170 +0 -
37x12.50R17 17x9 8x170 +1 -
37x12.50R18 18x9 8x170 -12 -
37x12.50R18 18x9 8x170 +0 -
37x12.50R18 18x9 8x170 +1 -
37x12.50R20 20x9 8x170 -12 -
37x12.50R20 20x9 8x170 +0 -
37x12.50R20 20x9 8x170 +1 -
37x12.50R20 20x10 8x170 -25 Minor Trimming
37x12.50R20 20x10 8x170 -24 Minor Trimming
37x12.50R20 20x10 8x170 -19 Minor Trimming
37x12.50R20 20x10 8x170 -18 Minor Trimming
35x12.50R20 20x12 8x170 -44 Minor Trimming
37x12.50R22 22x10 8x170 -25 Minor Trimming
37x12.50R22 22x10 8x170 -24 Minor Trimming
37x12.50R22 22x10 8x170 -19 Minor Trimming
37x12.50R22 22x10 8x170 -18 Minor Trimming
35x12.50R22 22x12 8x170 -44 Minor Trimming
