BDS Suspension 2019-2023 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4 | 0" IFP Coilover Lift Kit

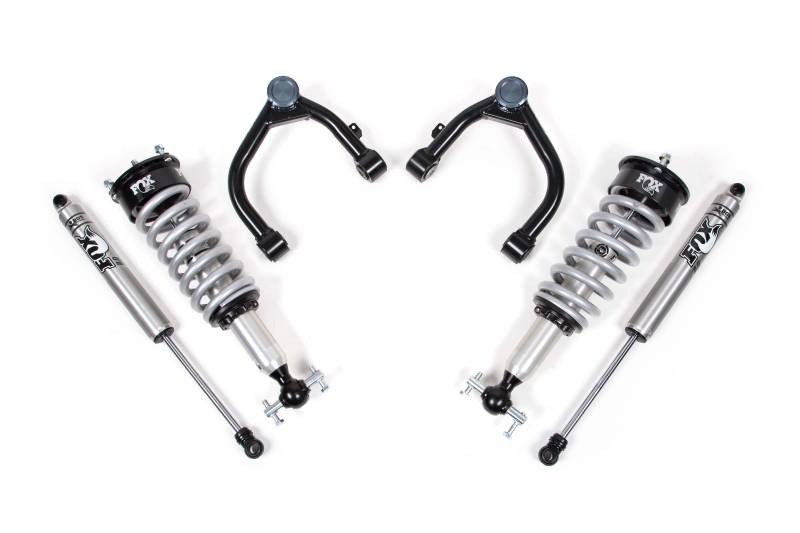

IFP Coilover Lift Kit System

These FOX coilover systems are designed to build on the stout factory front suspension design on the Chevy/GMC 1500 trucks and take performance to the next level while leveling out the stance.

More that just a "leveling kit", at the heart of this system is a pair of specially tuned FOX 2.0 Performance Series IFP coilovers. These non-reservoir coilovers are preset for the correct lift height right out of the box and use a threaded body to allow preload adjustment. They are a direct bolt-in replacement for the factory strut assemblies and improve damper performance featuring a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX�s proprietary internals, 5/8" hard chrome plated heat treated alloy shaft all preloaded with coil springs ready for easy installation.

Also supplied for the front are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Built from thick wall 1.5" tubing, these UCAs utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims. In the rear of these lift systems the factory leaf springs are retained to result in a level stance in no change in tow/load capacity. A pair of FOX 2.0 performance series IFP shocks are supplied to match the front performance.

Important Kit Notes

• 1. Will not fit Denali models equipped with ARC
• 2. This kit has not been test fit on Silverado ZR2 or Sierra AT4X models.

• Tire & Wheel Combinations
• 295/70 w/17x9 and 5.5" back spacing
• 295/65 w/18x9 and 5.5" back spacing
• 295/60 w/20x9 and 5.5" back spacing

*Trimming may be required*

• Est. Installation: 3-4 hours
• Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

• 2019 Chevy / GMC 1/2 Ton Truck 2WD Trail Boss / AT4
• 2020 Chevy / GMC 1/2 Ton Truck 2WD Trail Boss / AT4
• 2021 Chevy / GMC 1/2 Ton Truck 2WD Trail Boss / AT4
• 2022 Chevy / GMC 1/2 Ton Truck 2WD Trail Boss / AT4
• 2023 Chevy / GMC 1/2 Ton Truck 2WD Trail Boss / AT4
• 2019 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4
• 2020 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4
• 2021 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4
• 2022 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4
• 2023 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
