BDS Suspension 2019-2023 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4 | 0" Performance Coilover Lift Kit

BDS789FDSC
Pricing: $3,371.38

Customize Your Item

- Rear Shocks -
 * required
- Shock Boots -
 * required
Qty:
Free Shipping

Description

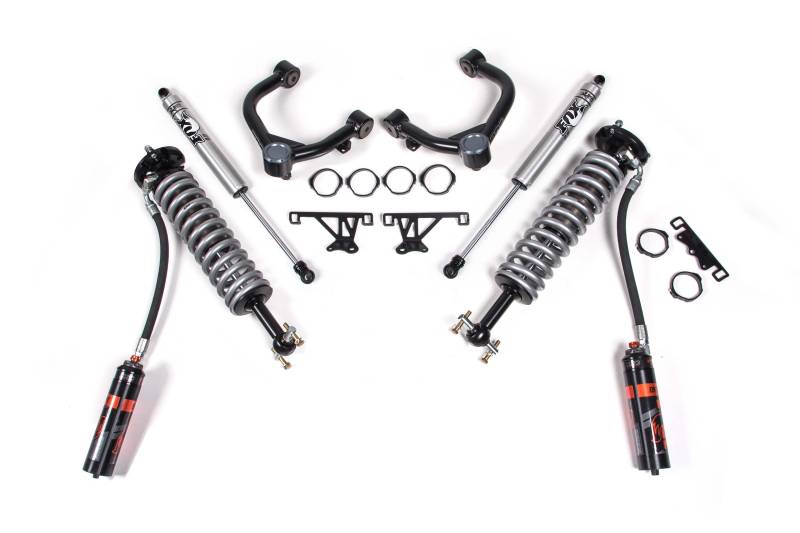

Performance Series Lift Kit



When its time to step your game up these FOX coilover systems are ready to do battle. This system steps up to specially tuned FOX 2.5 Performance Elite Series coilovers featuring DSC (dual speed compression) adjustment.



These coilovers are backed by FOX's racing pedigree, preset for the correct lift height right out of the box to provide optimal performance and direct bolt-in replacement for the factory strut assemblies. They feature a smooth bore and honed seamless alloy body, 7/8" hardened steel carbon shaft, Eibach coil springs and black anodized machined 6061-T6 billet aluminum mounts along with remove reservoirs with mounting brackets. The DSC reservoir allows for easy tool-free adjustment of high-speed and low-speed compression adjustment settings to further dial in the damping to the terrain and ride preferences.



Also supplied for the front are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Built from thick wall 1.5" tubing, these UCAs utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims. In the rear of these lift systems the factory leaf springs are retained to result in a level stance in no change in tow/load capacity. You choice of FOX 2.0 Performance Series IFP shocks or FOX 2.5 Performance Elite Series shocks with DSC remote reservoir are available to improve rear suspension performance.

Important Kit Notes

  • 1. Will not fit Denali models equipped with ARC
  • 2. This kit has not been test fit on Silverado ZR2 or Sierra AT4X models.
    • Tire & Wheel Combinations
    • 295/70 w/17x9 and 5.5" back spacing
    • 295/65 w/18x9 and 5.5" back spacing
    • 295/60 w/20x9 and 5.5" back spacing

*Trimming may be required*

  • Est. Installation: 3-4 hours
  • Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

  • 2019 Chevy / GMC 1/2 Ton Truck 2WD Trail Boss / AT4
  • 2020 Chevy / GMC 1/2 Ton Truck 2WD Trail Boss / AT4
  • 2021 Chevy / GMC 1/2 Ton Truck 2WD Trail Boss / AT4
  • 2022 Chevy / GMC 1/2 Ton Truck 2WD Trail Boss / AT4
  • 2023 Chevy / GMC 1/2 Ton Truck 2WD Trail Boss / AT4
  • 2019 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4
  • 2020 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4
  • 2021 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4
  • 2022 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4
  • 2023 Chevy / GMC 1/2 Ton Truck 4WD Trail Boss / AT4

BDS Suspension Lift Kit Warranty

No Fine Print Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
