BDS 7" Radius Arm Coilover Perfromance Elite Lift Kit FOR 2020-2022 Ford F250/F350 Super Duty 4WD | Diesel ONLY

DIESEL ONLY | Next level performance for your Super Duty with this PE coilover radius arm lift kit.

These kits are designed to improve performance and capability offroad while retaining great on-road handling. This kit builds on the BDS radius arm design to convert the front springs over to FOX 2.5 Performance Elite (PE) coilovers. These aluminum bodied coilovers offer improved damper performance, better heat dispersion and easy tuning via the DSC (dual speed compression) adjusters located on the reservoir allowing you to dial in the high-speed and low-speed compression settings. These coilovers come pre-tuned and full assembled to easy installation with the provided bolt-on coilover mounting brackets.

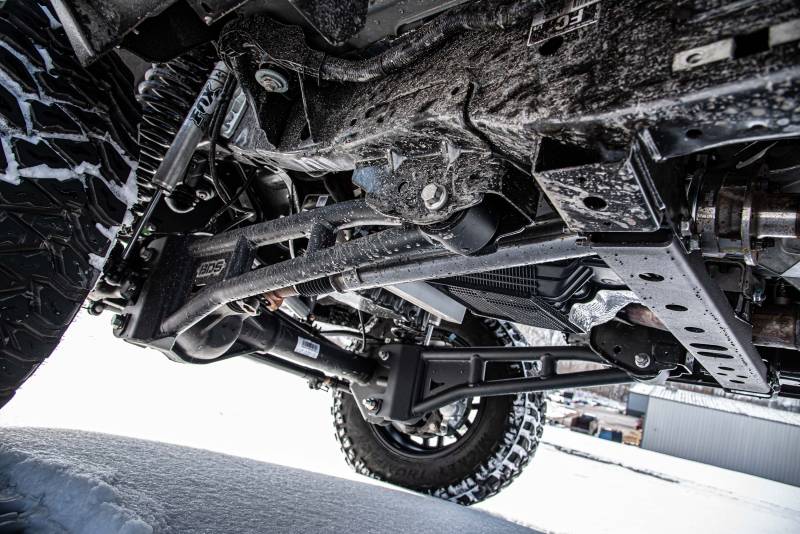

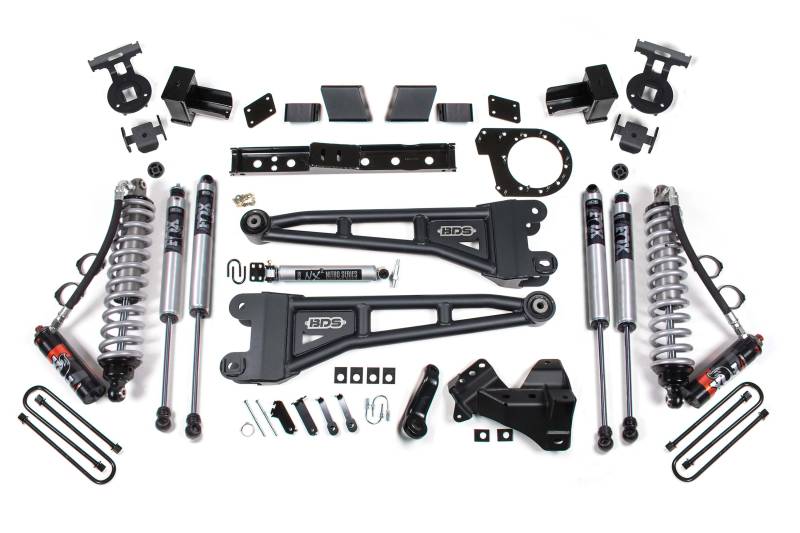

The foundation for this kit is the tried-and-true BDS radius arm lift kit that utilizes high strength tubular gusseted radius arms to correction front axle positioning, add strength and increase ground clearance. The kit also includes steering correction with a forged drop pitman arm along with a HD track bar bracket. Sway bar and brake line relocation brackets are utilized along with bump stop extensions. Fox 2.0 Performance Series shocks and your choice of lift solutions to lift and level out the stance in the rear. BDS designs this kit as a complete solution to transform your Super Duty to tame the any terrain. As with all BDS kits, these include Factory Protection Plus offering you a 5yr/60k-mile drivetrain warranty and no fine print warranty on the kit itself. Take your Super Duty to the next level with BDS and FOX.

Important Kit Notes

• 1. Fits Diesel models only.
• 2. Ford recommends replacement of the pitman arm nut after each time it has been removed.
• 3. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• 4. If your truck is equipped with a factory rear sway bar add: BDS123808
• 5. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
• 6. Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
• 7. Larger tires on stock wheel are not recommended due to brake line clearance required. Use recommended specs listed in wheel and tire fitment section.
• 8. The indexing ring is only compatible with 10 speed transmission trucks. Please verify your truck's equipment before installing. Transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
• 9. Indexing Ring has NOT been designed to work on manual shift transfer case models. Modification to the shift cable mount will be required.
• 10. Installation requires a torque wrench capable of 405 ft-lbs.
• 11. Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends to have this performed prior to installing the lift.
• 12. Due to factory ride heights being lower on 2020 and newer model year trucks, the net lift you will gain with this kit will be 1" more than advertised. (EX. 4" kit will net 5" of lift)

• Tire & Wheel Combinations
• 38x13.50 w/17x9/18x9/20x9 and 4.5-5" back spacing
• 38x13.50 w/17x10/18x10 and 5" back spacing
• 38x13.50 w/20x10 and 5" back spacing

*Trimming may be required*

• Est. Installation: 6-8 hours
• Difficulty Level (easy 1 - 5 complicated): 4

Vehicle Fitment Information

• 2020 Ford F250/F350 Super Duty 4WD
• 2021 Ford F250/F350 Super Duty 4WD
• 2022 Ford F250/F350 Super Duty 4WD

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
