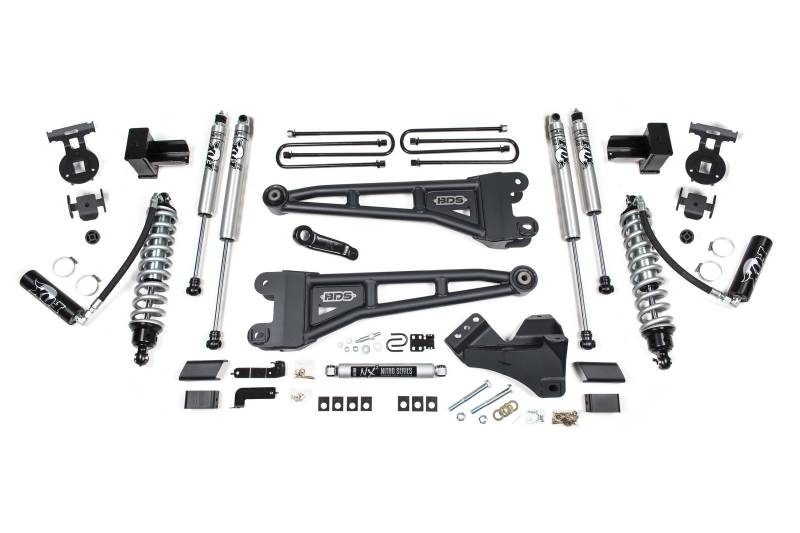

BDS 4" Coilover Radius Arm Lift Kit | Diesel Only FOR 2017-2019 Ford F350 Super Duty DRW 4WD

Built to take full advantage of the factory suspension design, these 4" radius arm systems correct suspension, steering and driveline geometry with room for 37" tires.

At the heart of this system is a pair of heavy duty radius arms built to withstand whatever abuse you can throw at them. Built from 1-3/4" OD -10GA DOM tubing with support gussets, these replacement arms are far superior to the factory stamped steel units. They use a high clearance design for extra ground clearance and are formed inward to allow for additional clearance of oversized tires. They incorporate factory style 3-1/4" rubber bushings to minimize road vibrations and allow for a long, maintenance-free bushing life. The arms bolt into the factory mounting points and reposition the front axle to correct caster angle. The additional 4" of lift comes from a pair of specially tuned FOX 2.5 factory series remote reservoir coilovers. Available with or without the optional DSC these coilovers are preset right out of the box for optimal performance with the weight of the 6.7L Powerstroke diesel engine. They are an easy install using the supplied frame and axle mounting brackets and pair with FOX 2.0 performance gas shocks offer a smooth ride and improved control over rough terrain. To improve steering angles a forged drop pitman arm is supplied with an integrated drag link flip. Used in combination with the 1/4" thick heavy duty track bar drop bracket will position the front axle and keep the track bar angle in phase with the steering for improved handling. Also included for the front suspension are a pair of sway bar relocation brackets, bump stop extensions, brake line relocation brackets and a NX2 series steering stabilizer with mounting bracket. Out back a you have the option of a 4.5" fabricated block with integrated bump stop wing is used in place of the factory block to level the stance or upgrade to GlideRide rear leaf springs. These springs integrate a overload leaf for imcreased load capacity while offering smooth on-road ride quality. Longer black e-coated u-bolts and FOX 2.0 shocks round out this 4" radius arm lift system.

Important Kit Notes

• 1. Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups
• 2. Installation requires a torque wrench capable of 405 ft-lbs

• Tire & Wheel Combinations
• 37x12.50 w/17x9 and 4.5"-5" back spacing
• 37x12.50 w/18x9 and 4.5"-5" back spacing
• 37x12.50 w/20x9 and 4.5"-5" back spacing

*Trimming may be required*

• Est. Installation: 6-8 hours
• Difficulty Level (easy 1 - 5 complicated): 5

Vehicle Fitment Information

• 2017 Ford F350 Super Duty DRW 4WD
• 2018 Ford F350 Super Duty DRW 4WD
• 2019 Ford F350 Super Duty DRW 4WD

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
