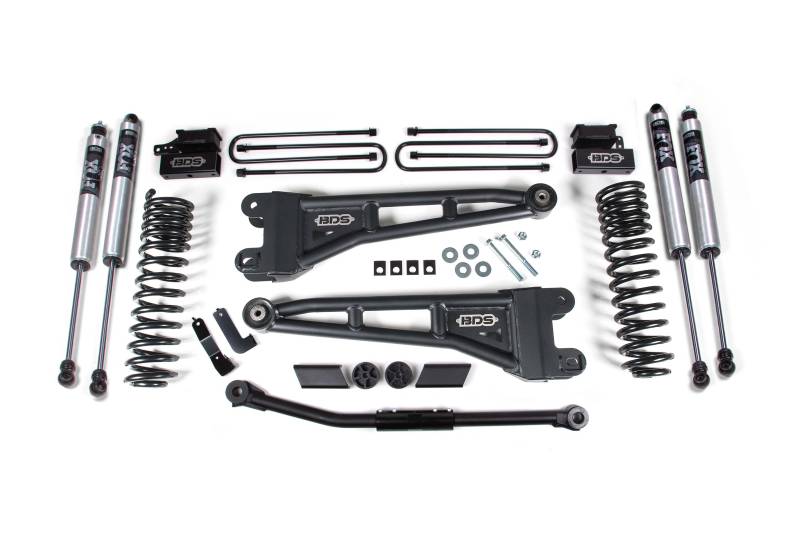

BDS 2.5" Radius Arm Lift Kit FOR 2020-2022 Ford F450 Super Duty 4WD

BDS 2.5" radius arm lift systems for the 2020 Ford F450 Super Duty offer improved performance.

These kits use full length ProRide coil springs designed to improve the stance of your Super Duty while taking performance, capability and ride quality to the next level with clearance for 35" tires. Starting of the full-length ProRide dual rate coil springs provide the lift and improve overall ride quality. In place of the factory stamped steel arms this kit upgrades to heavy duty BDS radius arms. These brawny arms are built from 1-3/4" OD heavy wall tubing, fully welded with gussets for superior strength to the factory units light weight stamped steel units they are replacing. The heavy wall tubular construction improves strength while correcting caster with a lower cam slot. At the frame mount, a large OE-style rubber bushing is used to better isolate of NHVs and allow for quiet operation without any need for maintenance. The bushings offer superior durability and quieter operation than arms with heims and flex joints. Also upgraded as part of these new 2.5" lift systems is a high strength replacement track bar designed to recenter the front axle with the lift installed. The new track bar is adjustable, built from 1-3/8" solid steel stock with gusseted ends and a fine thread center turnbuckle with pinch bolts. The track bar comes pre-assembled and ready to bolt into the factory location to adjust to length. At one end these use a greaseable, high-durometer polyurethane bushing and the other end a heavy duty ball joint. This setup offer strength, comfort and quiet operation over track bars that use heims. Rounding out the front of these kits are front brake line relocation brackets to allow enough slack in the lines to cycle the suspension offroad while the sway bar relocation brackets to correct sway bar operating angle for optimal performance without sacrificing approach angle. Available with either NX2 or Fox 2.0 Performance Series front/rear shocks.

Important Kit Notes

• 1. Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2" front ride height).
• 2. Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in tire and wheel fitment section.
• 3. Installation requires a torque wrench capable of 405 ft-lbs.
• 4. Wheel/Tire Specs:
• - Max Tire Size: 35x12.50
• - Front Wheel: 20x8.25, 8.76" BS
• - Rear Outer: 20x8.25, -3.33" BS
• - Rear Inner: 20x8.25, 9.11" BS

In the rear, these kits use a 2" lift block and new black e-coated u-bolts to level stance while retaining the factory rear springs for ride quality and tow capacity. Take your new Super Duty to the next level these new 2.5" radius arm systems from BDS Suspension.

• Tire & Wheel Combinations
• 35x12.50 w/ and back spacing

*Trimming may be required*

• Est. Installation: 5 hours
• Difficulty Level (easy 1 - 5 complicated): 3

Vehicle Fitment Information

• 2020 Ford F450 Super Duty 4WD
• 2021 Ford F450 Super Duty 4WD
• 2022 Ford F450 Super Duty 4WD

BDS Suspension Lift Kit Warranty

All BDS Suspension lift kits come with the security of knowing you purchased the finest lift kit in the aftermarket suspension industry. We back our commitment to engineering reliable, quality 4x4 off-road Jeep and truck suspension products with our unique "No BS Hardcore Lifetime Warranty".

If you are the original purchaser of any BDS lift kit and it breaks, we will give you a new part. Period.
